Passenger Air Bag Module: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

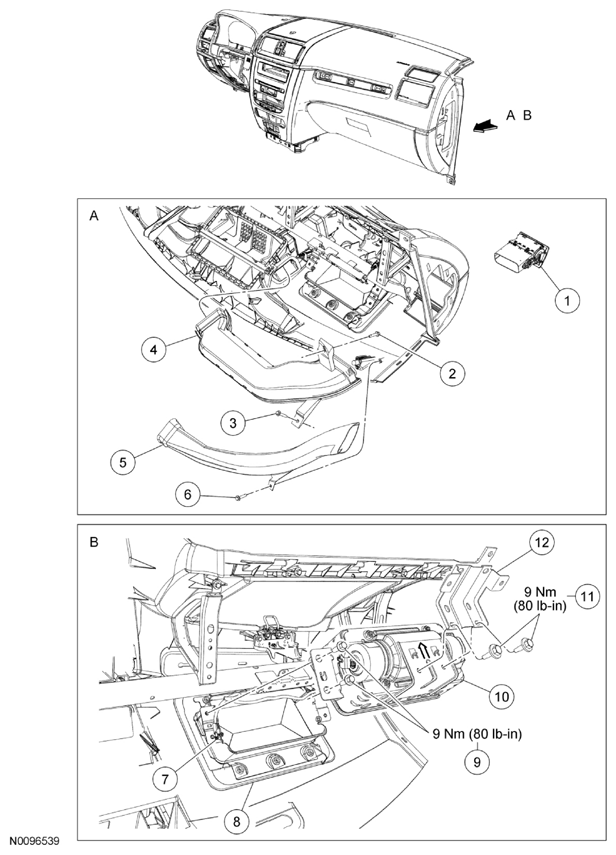

Fusion/Milan shown in the illustration, MKZ similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 19893 | RH instrument panel register |
| 2 | - | Screw |
| 3 | - | Screw |
| 4 | 19B680 | Ventilation duct |
| 5 | 19B680 | Defroster duct |
| 6 | - | Screw |
| 7 | - | Passenger air bag module electrical connector (part of 14401) (2 required) |
| 8 | - | Passenger air bag module deployment chute (part of instrument panel) |
| 9 | W505253 | Passenger air bag module-to-deployment chute bolts (4 required) |
| 10 | 044A74 | Passenger air bag module |
| 11 | W505253 | Passenger air bag module bracket bolts (2 required) |
| 12 | - | Passenger air bag module bracket (part of 044A74) |
