Side Air Curtain Module: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

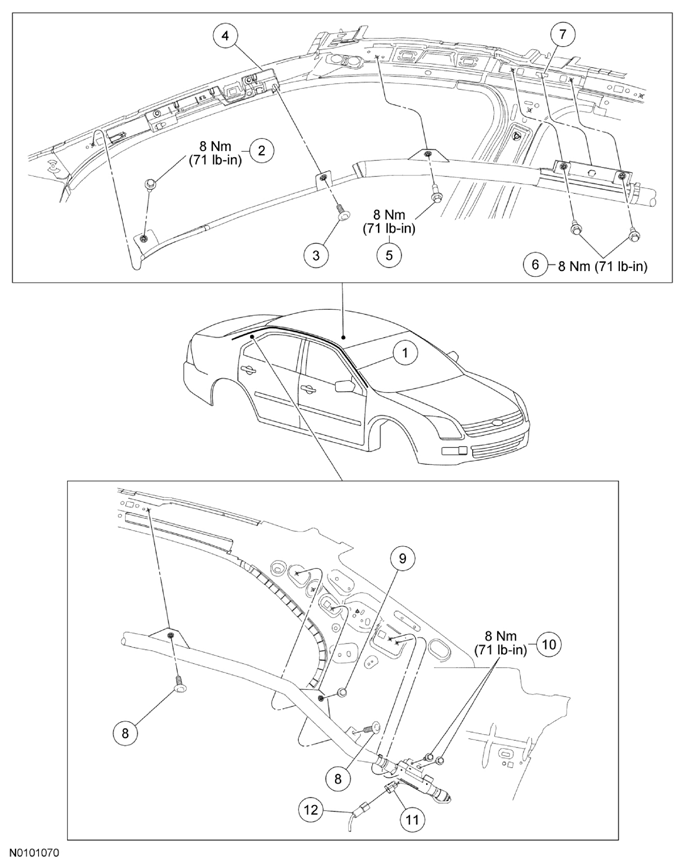

RH shown in the illustration, LH similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH | Side air curtain module |
| 2 | W713437 | Side air curtain module front tether bracket bolt |
| 3 | W709453 | Pin-type retainer (to garnish moulding bracket) (part of 042D94 RH/ 042D95 LH) |
| 4 | 026A52 RH/026A53 LH | Garnish moulding bracket |
| 5 | W713437 | Side air curtain module bolt (rear of A-pillar) |
| 6 | W713437 | Side air curtain module center guide bolts |
| 7 | - | Side air curtain center guide hook sheet metal slot |
| 8 | - | Pin-type retainers (part of 042D94 RH/ 042D95 LH) |
| 9 | W713437 | Side air curtain module middle rear bolt |
| 10 | W713437 | Side air curtain module rear bracket bolts |
| 11 | - | Side air curtain module electrical connector (part of 042D94 RH/042D95 LH) |
| 12 | - | Rear body wire harness (part of 14A005) |
