Door Lock Control Switch: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

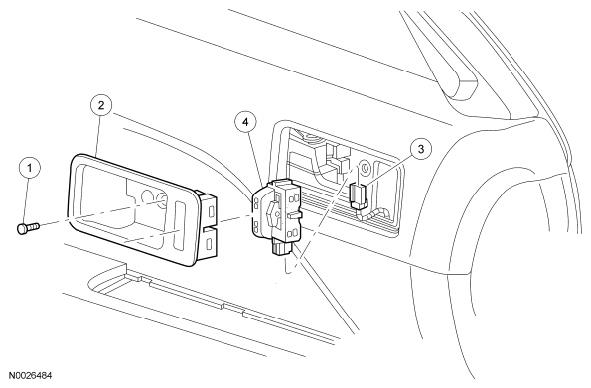

Fig 1: Identifying Door Lock Control Switch Components
G06259762Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 - Interior front door handle finish panel screw
2 5422620/5422621 Interior front door handle finish panel (RH/LH)
3 - Door lock control switch electrical connector (part of 14630/14631)
4 14028 Door lock control switch
