Section 273 (Automatic Transaxle/Transmission): Installation: Transmission
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- Secure the transmission to the transmission jack with a safety chain.
- While raising and positioning the transmission to the engine, install the wire harness to the top of the transmission.

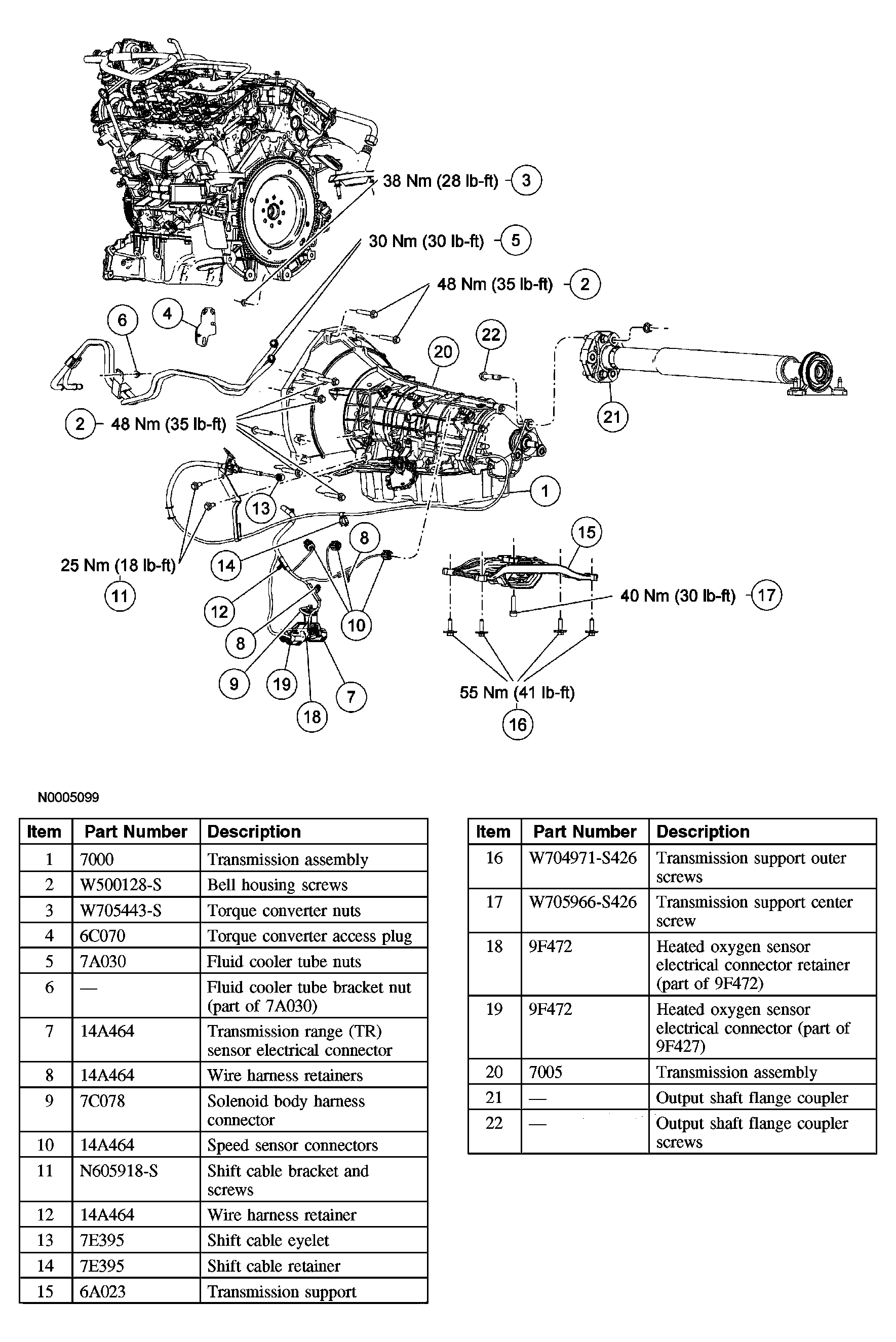

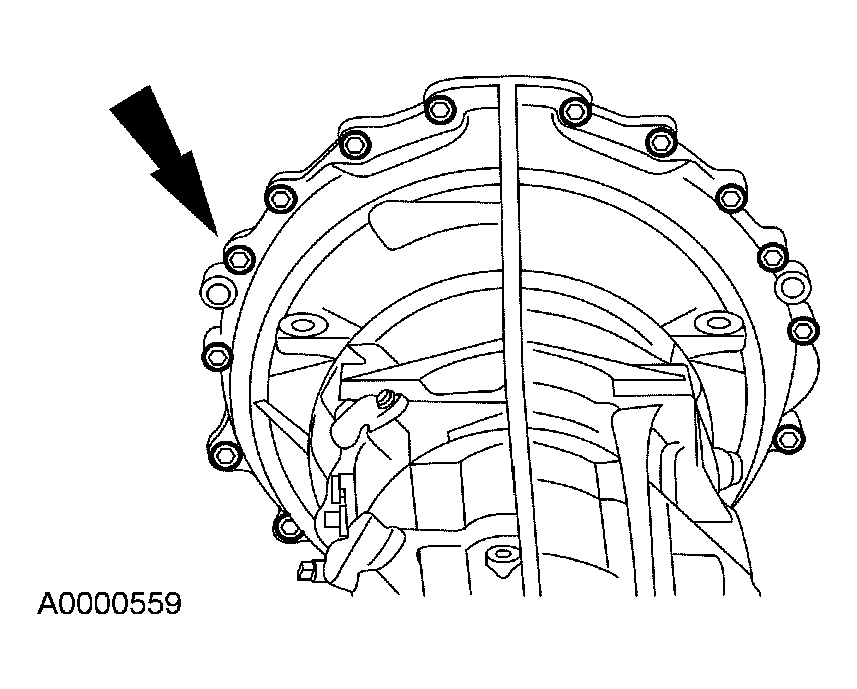

- Carefully position the transmission in alignment with the engine and install the transmission bellhousing-to-engine screws
- Tighten to 48 Nm (35 lb-ft).

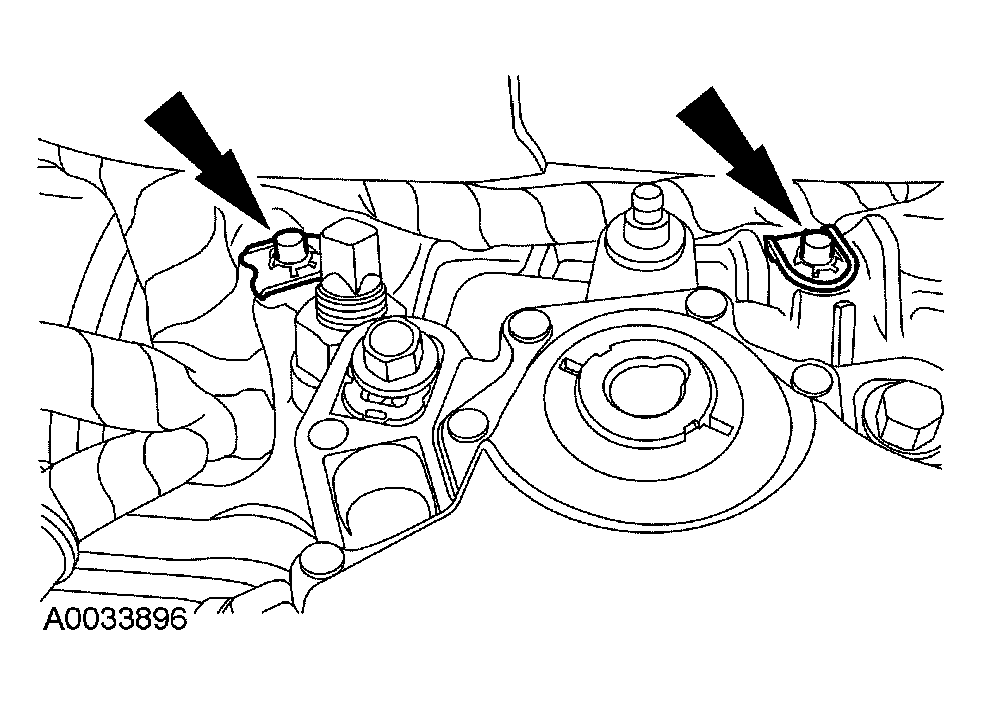

- Install the torque converter nuts.
- Tighten to 35 Nm (26 lb-ft).

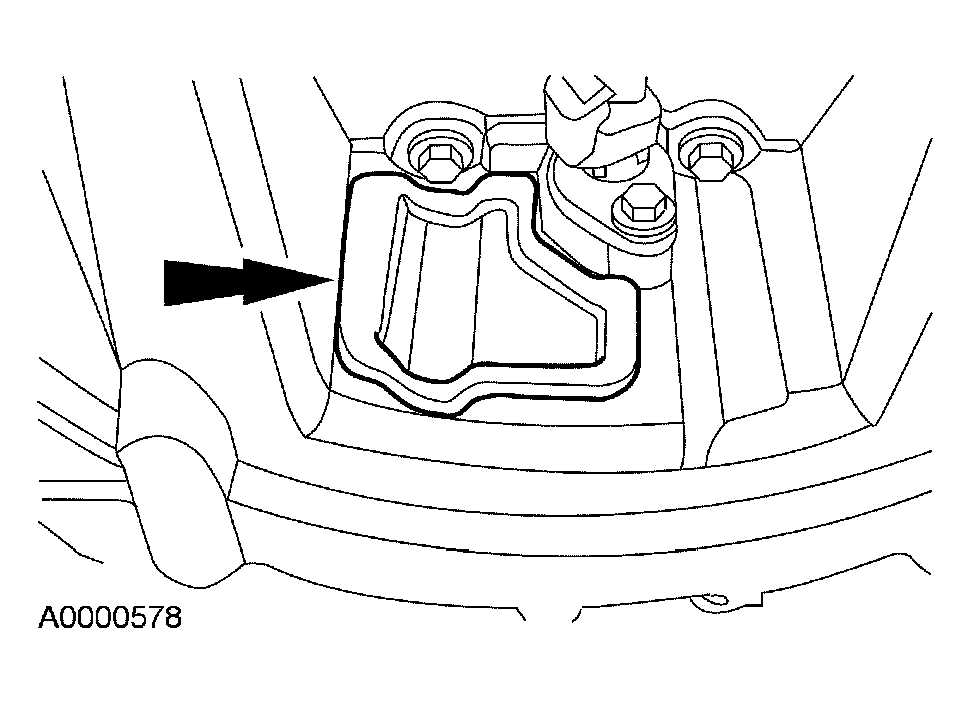

- Install the converter access cover.
- Connect the transmission cooler tubes.
- Tighten to 35 Nm (26 lb-ft).
- Install the cooler line bracket.
- Tighten to 18 Nm (13 lb-ft).
- Connect the wire harness to the cooler line bracket.
- Install the splash shield, then install the screws and pushpin.
- Reconnect the digital TR sensor connector.

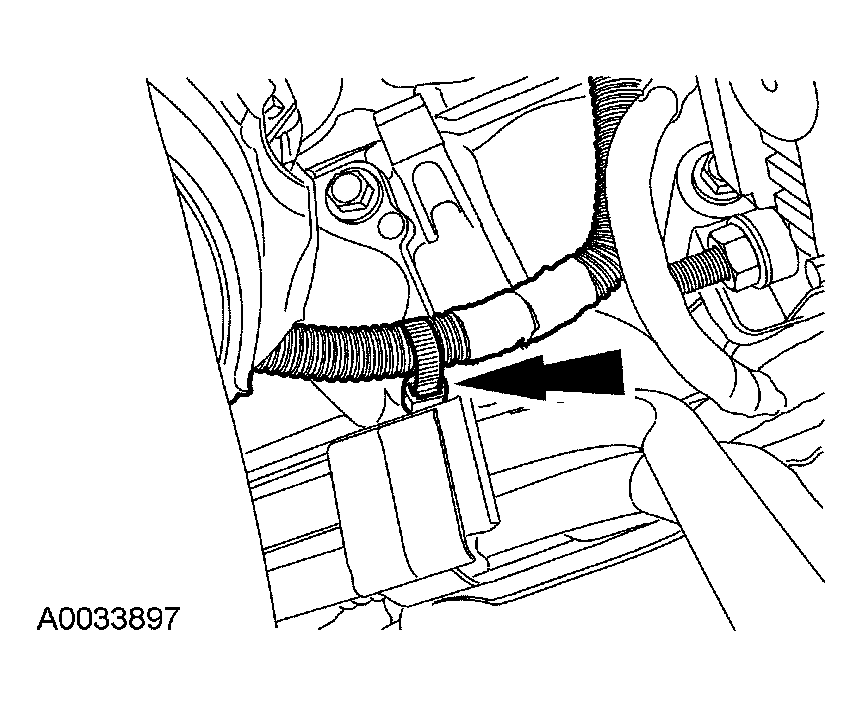

- Slide the boot over the digital TR sensor connector and install a new tie strap.
- Connect the wire harness retainers to the transmission.
- Install and lubricate new O-ring seals on the transmission connector and connect the connector.
- Tighten to 5 Nm (44 lb-in).
- Install the shift cable bracket screws and bracket.
- Tighten to 25 Nm (18 lb-ft).
- Connect the TSS, OSS and ISS electrical connectors.
- Install the wire harness to the top of the transmission shift cable bracket.
- Connect the transmission shift cable eyelet to the manual lever.
- Install the shift cable to the rear transmission support.
- Position the rear transmission support and install the screws.
- Tighten to 55 Nm (41 lb-ft).
- Install the transmission support center screw.
- Tighten to 40 Nm (30 lb-ft).

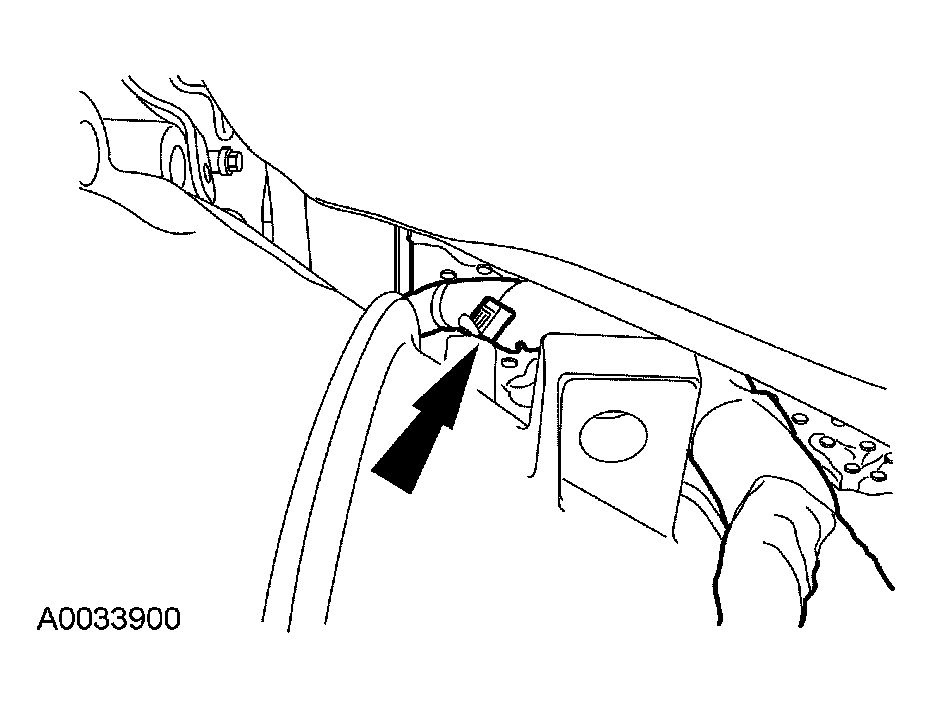

- Install the heated oxygen sensor connector on the front of the transmission pan rail.
- Install the wire in the clip on the right side of the transmission pan rail and connect the heated oxygen sensors.
- Install the driveshaft. For additional information, refer to DRIVESHAFT .
- Install the exhaust system and front heat shields. For additional information, refer to EXHAUST SYSTEM .
- Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Use the following guidelines for the in-line transmission fluid filter:
- If the transmission was overhauled and the vehicle was equipped with an in-line fluid filter, install a new in-line fluid filter.
- If the transmission was overhauled and the vehicle was not equipped with an in-line fluid filter, install a new in-line fluid filter kit.
- If the transmission is being installed for a non-internal repair, do not install an in-line filter or filter kit.
- If installing a new or a Ford-authorized remanufactured transmission, install the in-line transmission fluid filter that is supplied.
Prior to lowering the vehicle, install a new in-line transmission filter or a filter kit. For additional information refer to TRANSMISSION FLUID IN-LINE FILTER in this article.
- Carry out the fluid level check. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK in this article.
- Verify that the shift cable is correctly adjusted. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS in this article.
- Check the operation of the transmission and inspect for leaks.
WARNING:
Secure the transmission to the transmission jack with a safety chain. Failure to follow these instructions can result in personal injury.
NOTE:
Rotate the torque converter so that the torque converter paint mark is in the 12 o'clock position.
CAUTION:
Do not damage the cooler tubes. Hold the transmission case fitting with a wrench.
CAUTION:
Damage will occur to the solenoid body assembly if the screw is tightened above the specification.
NOTE:
Always install new O-ring seals on the vehicle harness connector.
NOTE:
Use petroleum jelly to lubricate the O-ring seals to aid in the installation process.
NOTE:
When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they can experience slightly different upshifts (either soft or firm) and that this is a temporary condition and will eventually return to normal operating condition.
