Windshield Glass: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION

G04586084

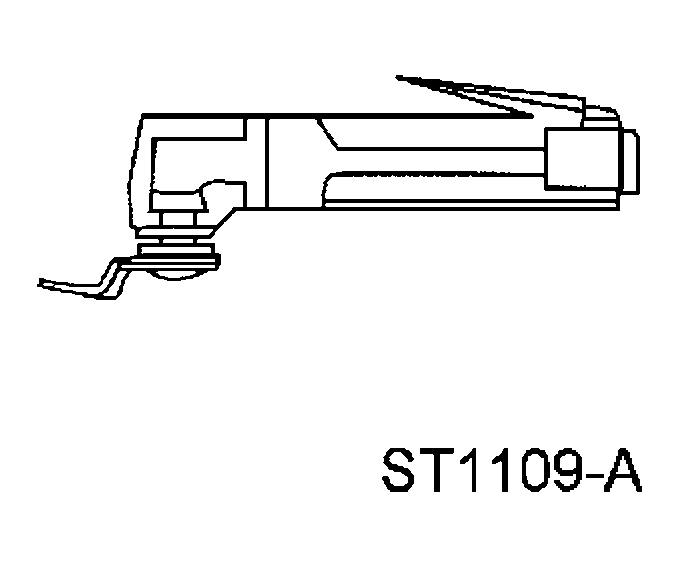

Rotunda Pneumatic Knife with Offset Blade
164-R1511 or equivalent
G04586085

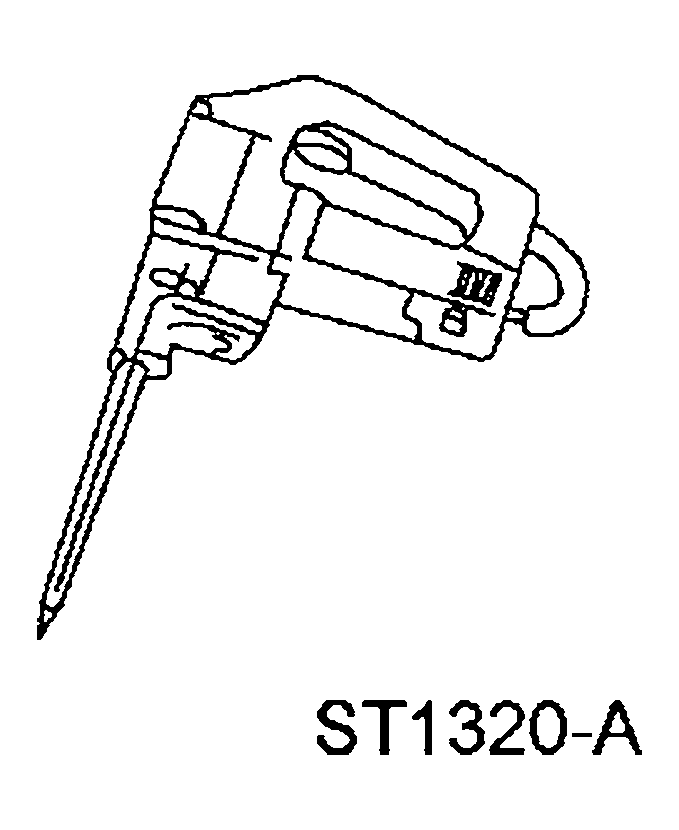

Rotunda Interior Auto Glass Cut-Out Knife Kit
164-R2450 or equivalent
G04586086

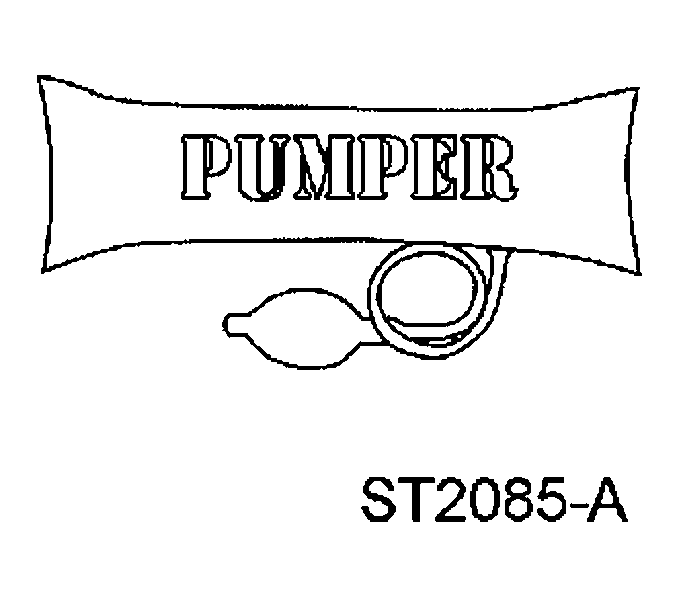

The Pumper
164-R2459 or equivalent
MATERIAL SPECIFICATION

Item Specification
DOW AUTOMOTIVE 2-HOUR CURE
Dow Urethane Adhesive Betaseal® Express -
Dow Urethane One Step Glass Primer Betaprime® 5500 / 5500A / 5500SA -
SIKA 2-HOUR CURE
Sika Urethane Adhesive Sika Tack ASAP -
Sika Urethane Metal and Glass Primer Sika 206 G+P -
Ultra-Clear Spray Glass Cleaner ZC-23 ESR-M14P5-A

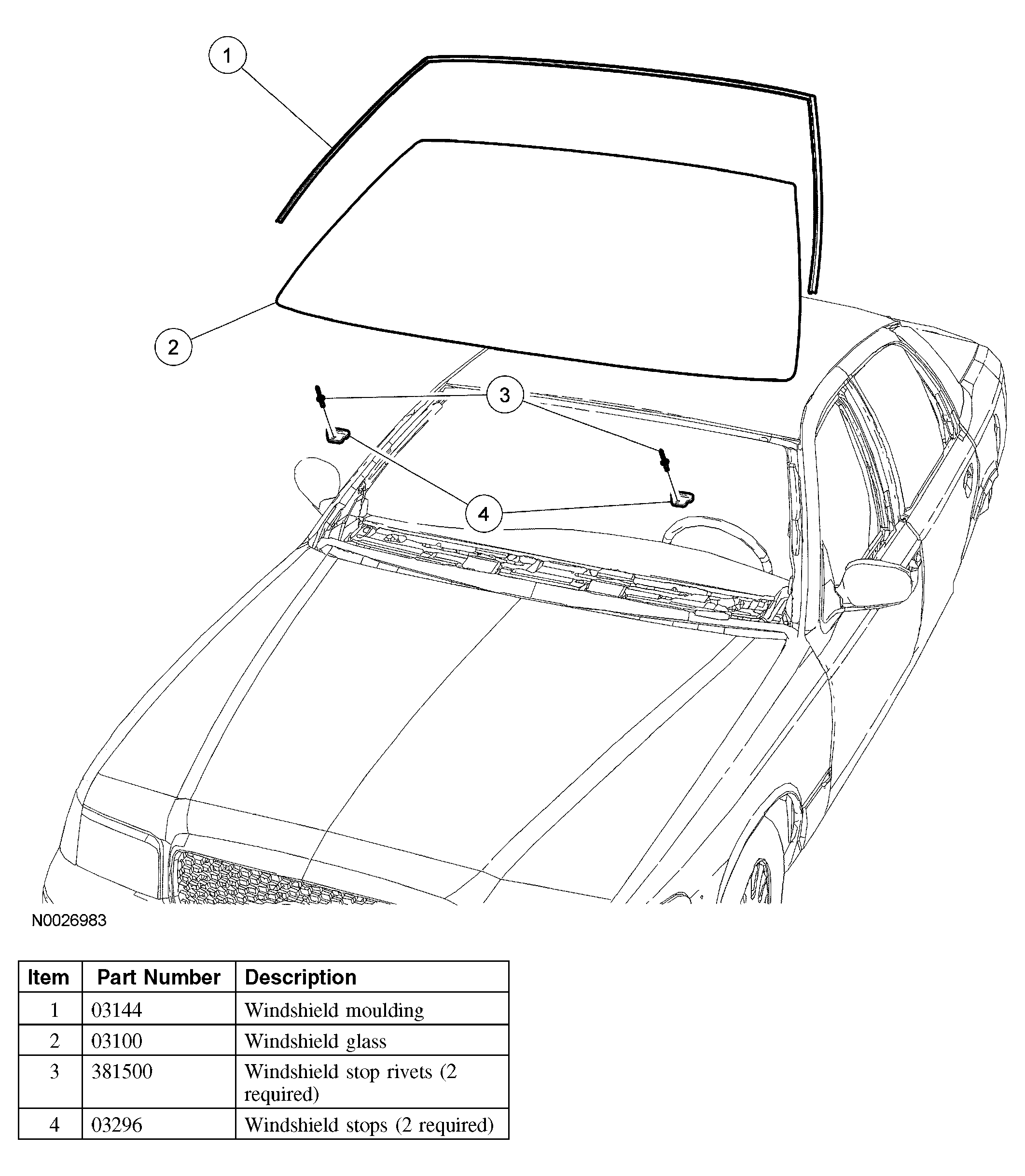

Fig 1: Identifying Windshield Glass Components
G04586087Courtesy of FORD MOTOR CO.
