Occupant Classification Sensor - Service Kit: Notes
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL
Courtesy of FORD MOTOR CO.
Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

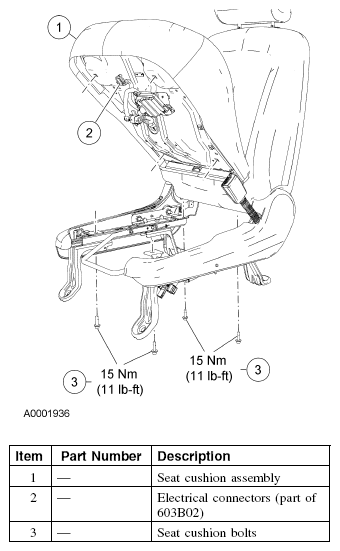

Fig 1: Occupant Classification Sensor Replacement Components (1 Of 2) With Torque Specifications
Courtesy of FORD MOTOR CO.

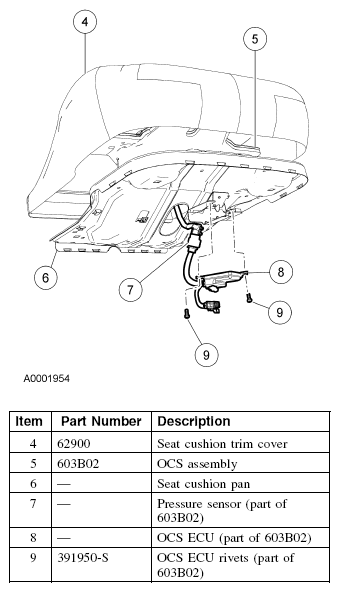

Fig 2: Identifying Occupant Classification Sensor Components (2 Of 2)
