Safety Canopy Module: Installation
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

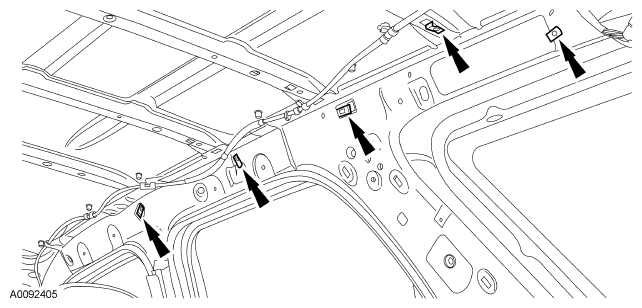

- Install new safety canopy module J-nuts.

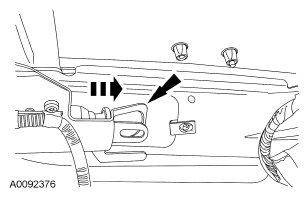

- Install the safety canopy rear hook.
- Hook the safety canopy module to the C-pillar.
- Install the 2 safety canopy module bolts located near the top of the A- and B-pillars.
- Tighten to 8 N.m (71 lb-in).
- Attach the A-pillar tether pin-type retainer to the A-pillar.
- Install the A-pillar tether bolt.
- Tighten to 8 N.m (71 lb-in).
- Install the 2 safety canopy module bolts near the top of the C-pillar and between the B- and C-pillars.
- Tighten to 8 N.m (71 lb-in).
- Install the 2 bolts to the safety canopy module tether bracket at the C-pillar.
- Tighten to 8 N.m (71 lb-in).

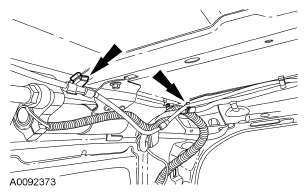

- If the vehicle is equipped with a rear window wiper assembly, position the hose and attach the hose clips.
- If the vehicle is equipped with a moonroof, connect the moonroof rear drain hose.

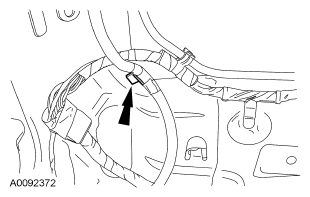

- Connect the safety canopy module electrical connector and attach the connector to the D-pillar.
- Install the safety canopy module wiring clip to the roof panel brace.
- Install the remaining 2 safety canopy module bolts near the ignitor (between the C- and D-pillars).
- Tighten to 8 N.m (71 lb-in).
- Install the headliner. For additional information, refer to REMOVAL AND INSTALLATION .
- Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
NOTE:
If equipped with a moonroof and/or rear window wiper assembly, make sure of correct moonroof drain hose and/or rear window solvent hose routing.
NOTE:
If equipped with a moonroof and/or rear window wiper assembly, do not pinch the front moonroof drain hose and/or rear window washer solvent hose.
NOTE:
Late build safety canopy module electrical connector shown, early build similar.
