Removal And Installation: Driveshaft: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

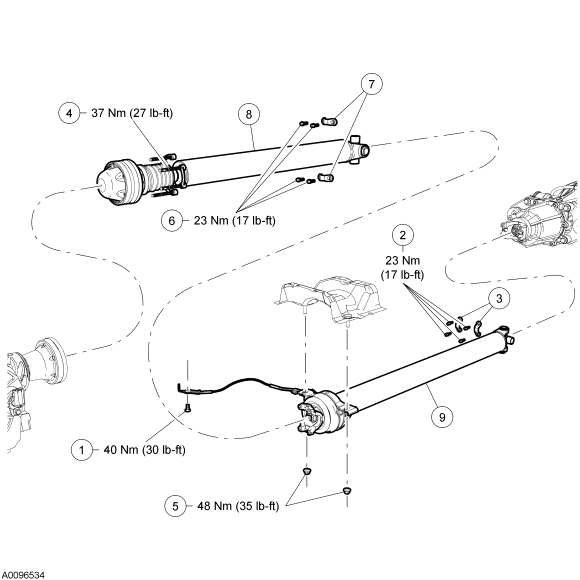

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ground strap bolt |
| 2 | 3N341 | Universal joint cap bolts (4 required) |
| 3 | 4639 | Universal joint cap straps (2 required) |
| 4 | 4B496 | Front driveshaft-to-transfer case bolts (6 required) |
| 5 | W705891 | Center bearing support nuts (2 required) |
| 6 | 3N341 | Universal joint cap bolts (4 required) |
| 7 | 4639 | Universal joint cap straps (2 required) |
| 8 | 4602 | Front driveshaft |
| 9 | 4602 | Rear driveshaft |
