Central Junction Box

NOTE: Central junction box is located under driver's side of instrument panel. See Fig 1.

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of FORD MOTOR CO.

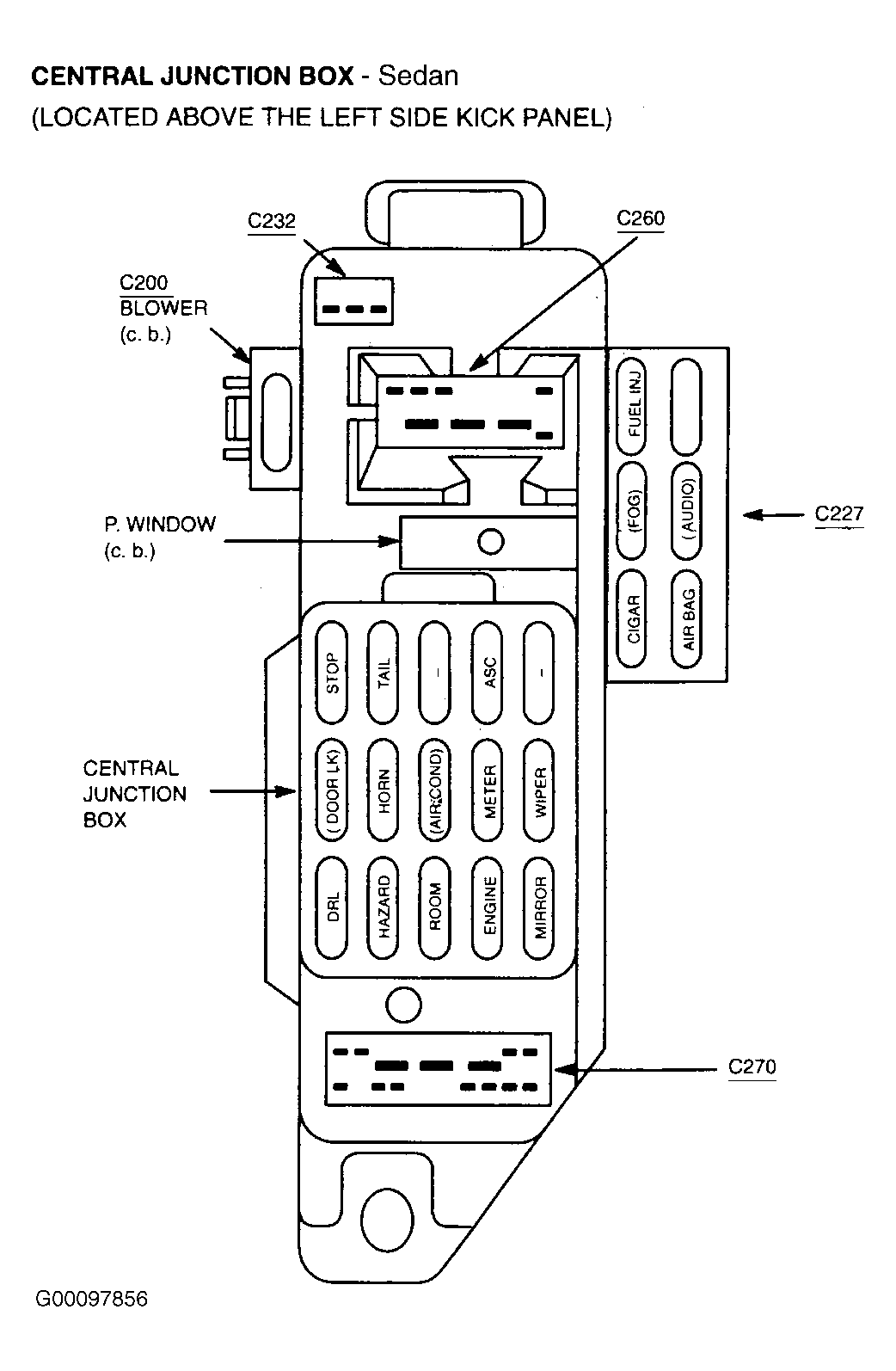

Fig 2: Identifying Central Junction Box Components (Sedan)

Courtesy of FORD MOTOR CO.

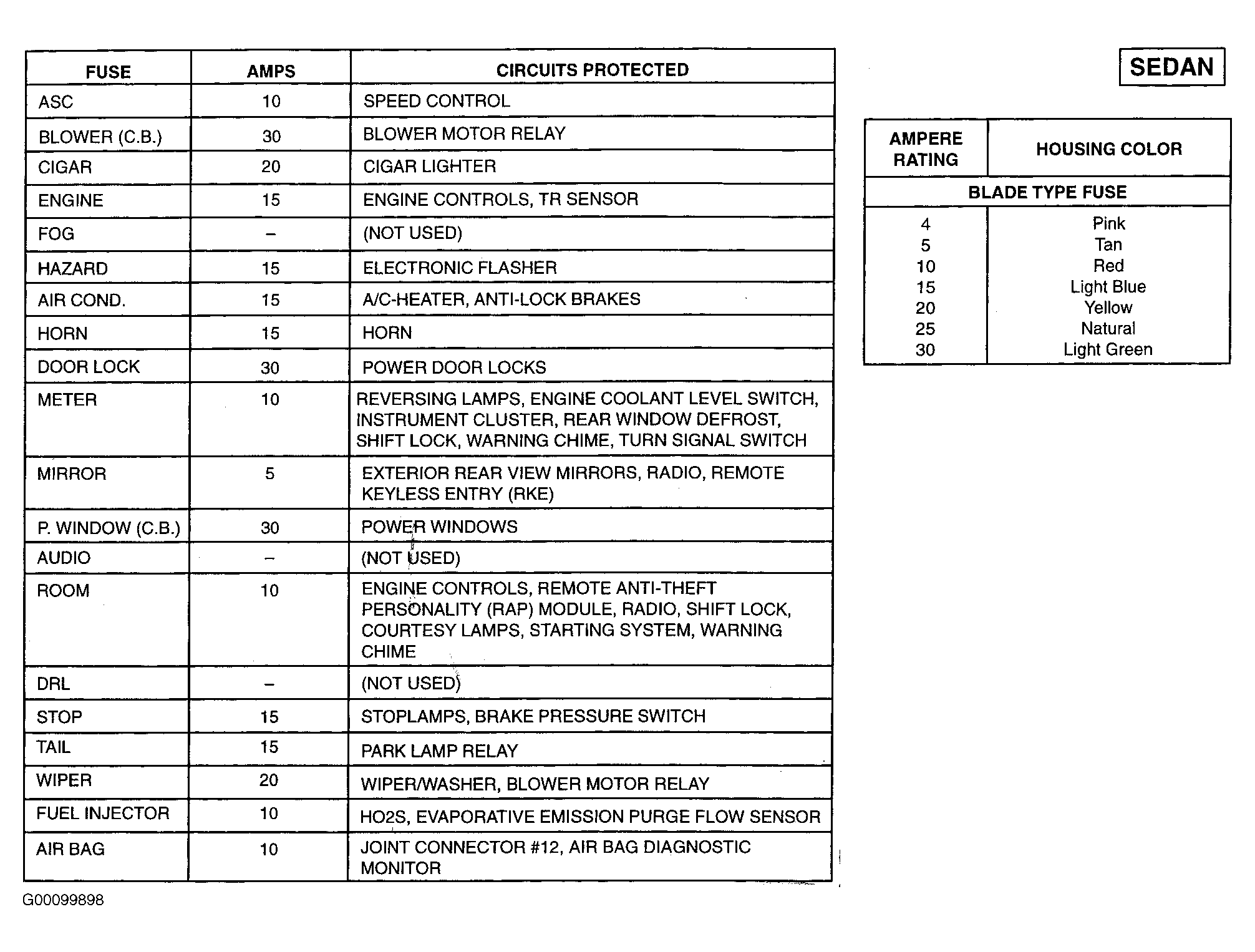

Fig 3: Central Junction Box Legend (Sedan)

Courtesy of FORD MOTOR CO.

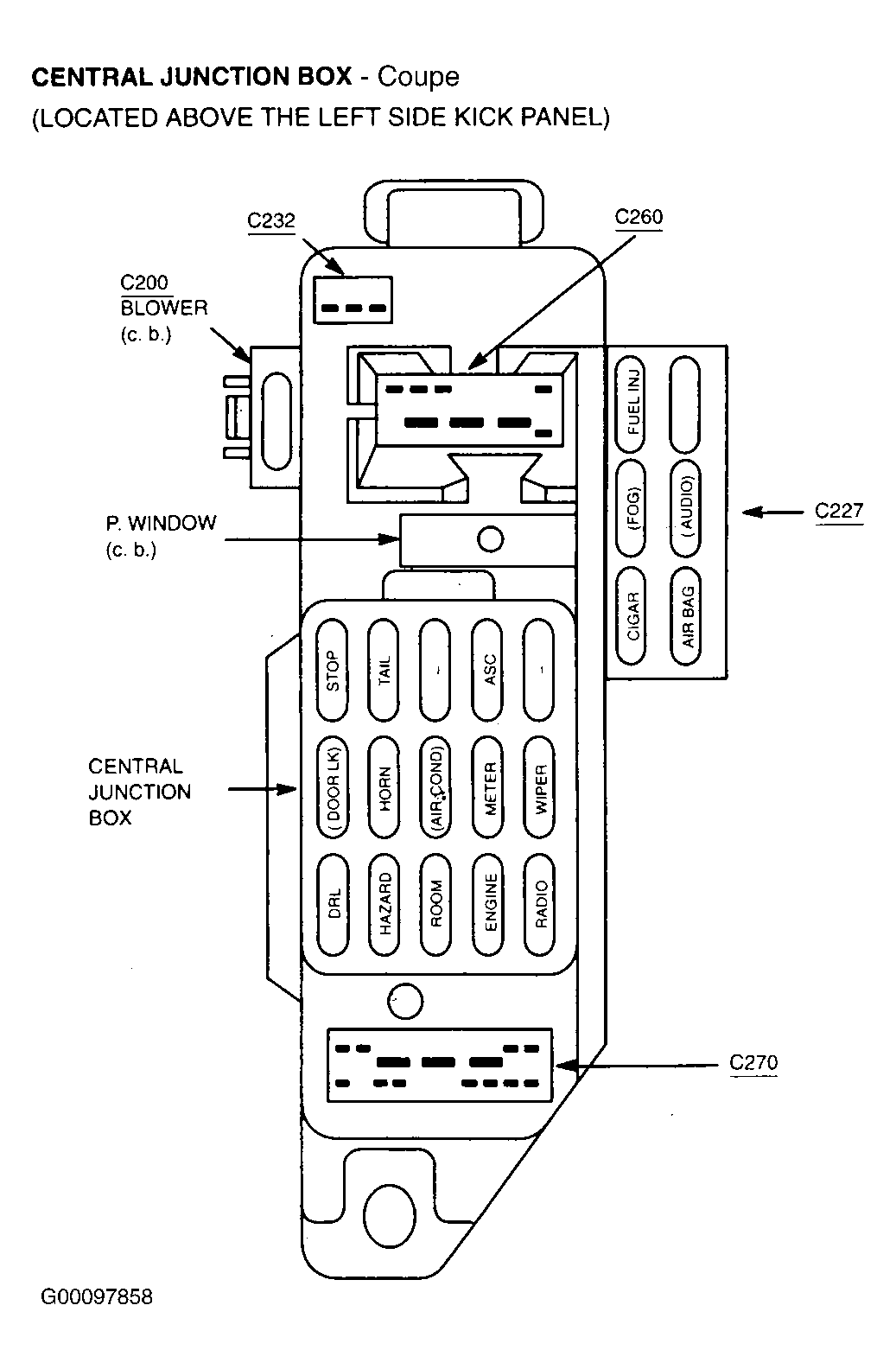

Fig 4: Identifying Central Junction Box Components (Coupe)

Courtesy of FORD MOTOR CO.

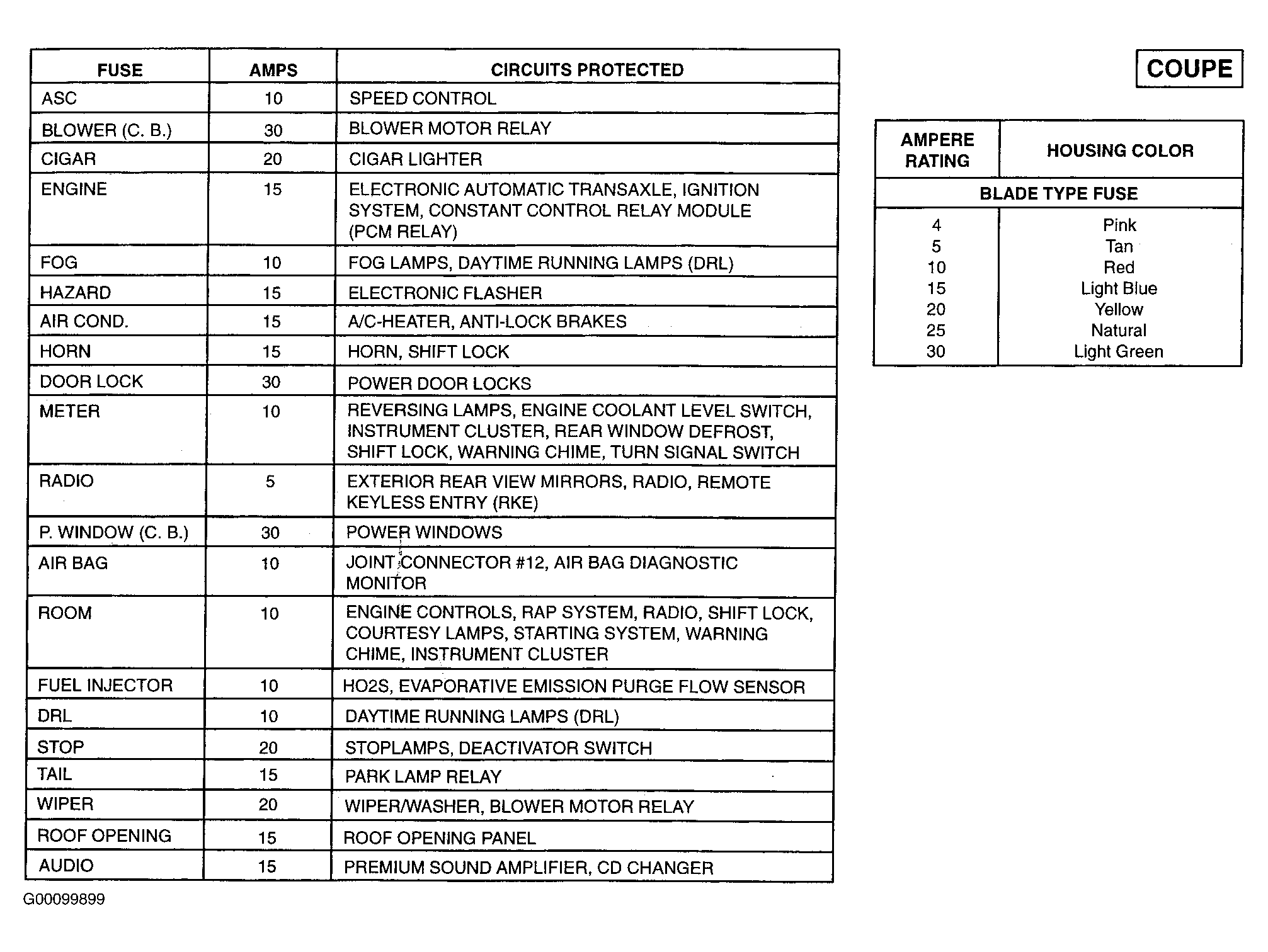

Fig 5: Central Junction Box Legend (Coupe)

Courtesy of FORD MOTOR CO.
