Driver Seat Module (DSM) C341f

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

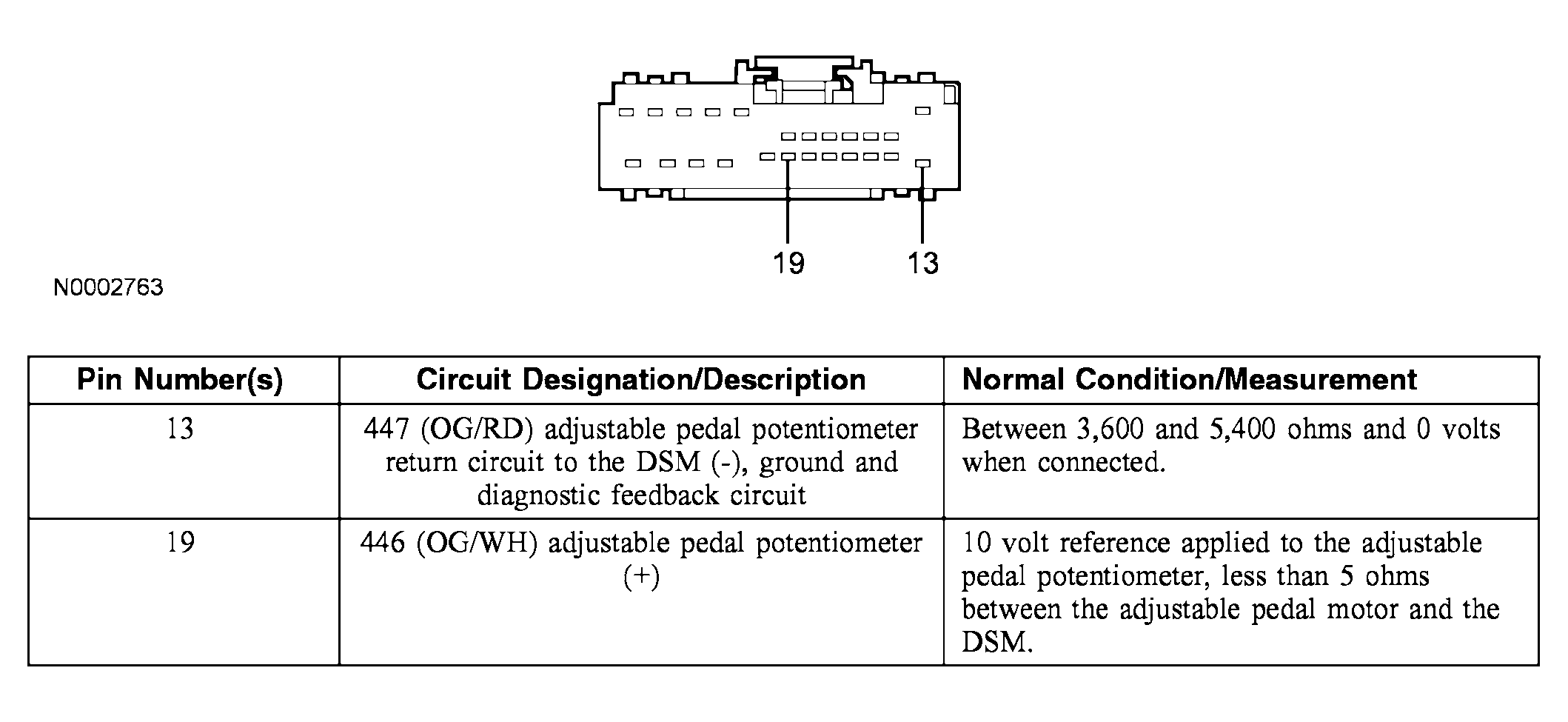

Fig 1: Driver Seat Module (DSM) C341f - Connector Pinout
G03944741Courtesy of FORD MOTOR CO.
