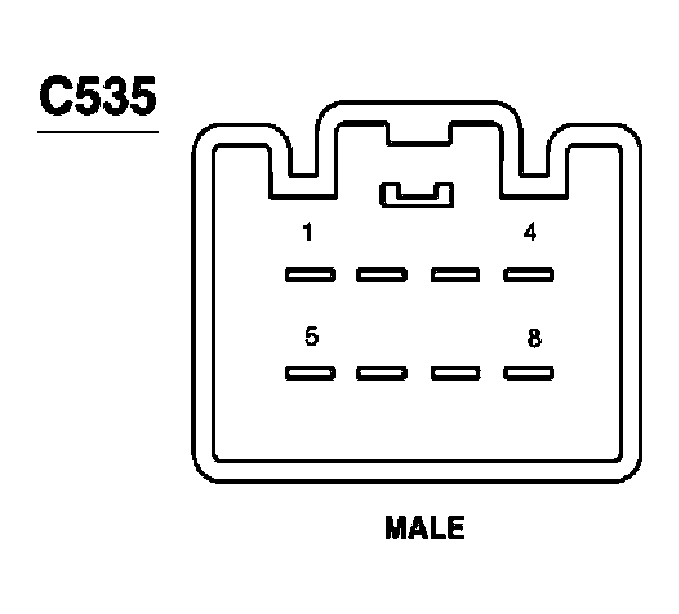

MASTER WINDOW ADJUST SWITCH (REGULAR CAB) - COMPONENT TESTING
| Circuit to test | Connect self-powered test light or ohmmeter to terminals | Move switch to these positions | A good switch will indicate |
|---|---|---|---|
| Power and Ground Checks Before Any Other Tests | 1 and 3 | All switches, all positions | Closed circuit |
| 3 and 5 | All switches, at rest | Closed circuit | |
| 3 and 6 | |||
| 3 and 8 | |||
| 3 and 7 | |||
| Driver front window | 1 and 6 | Up | Closed circuit |
| circuit | 1 and 5 | Down | Closed circuit |
| Passenger front window circuit | 1 and 8 | Down | Closed circuit |
| 1 and 7 | Up | Closed circuit |
