Section 1326 (Engine - SVT): Removal: Engine

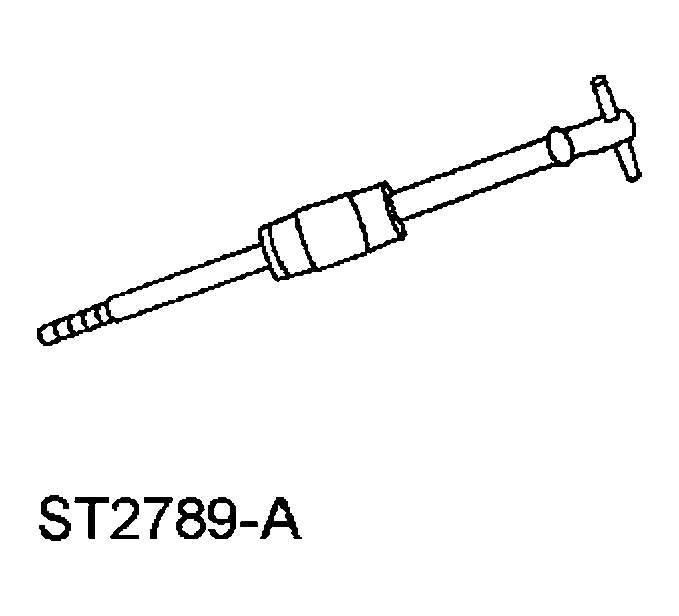

	Slide Hammer 100-001 (T50T-100-A)

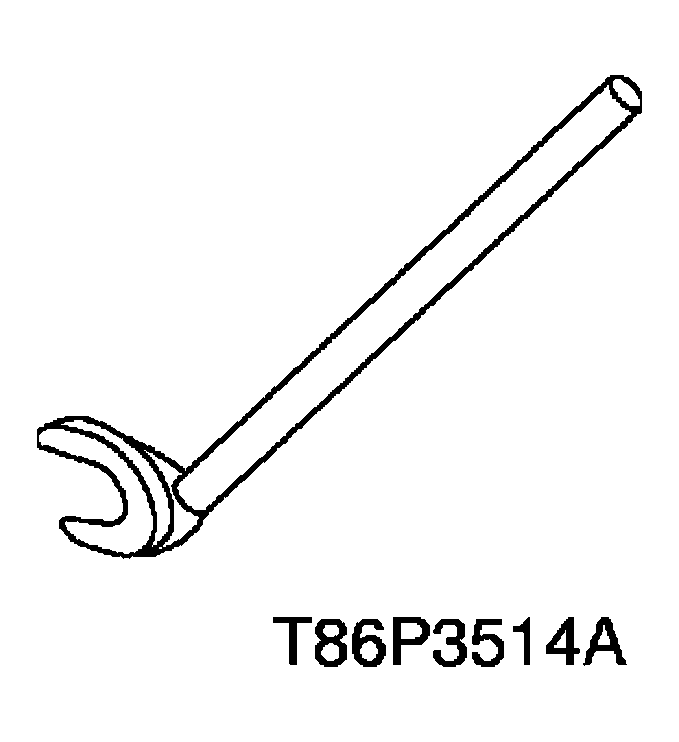

	Remover, Halfshaft 205-241 (T86P-3514-A)

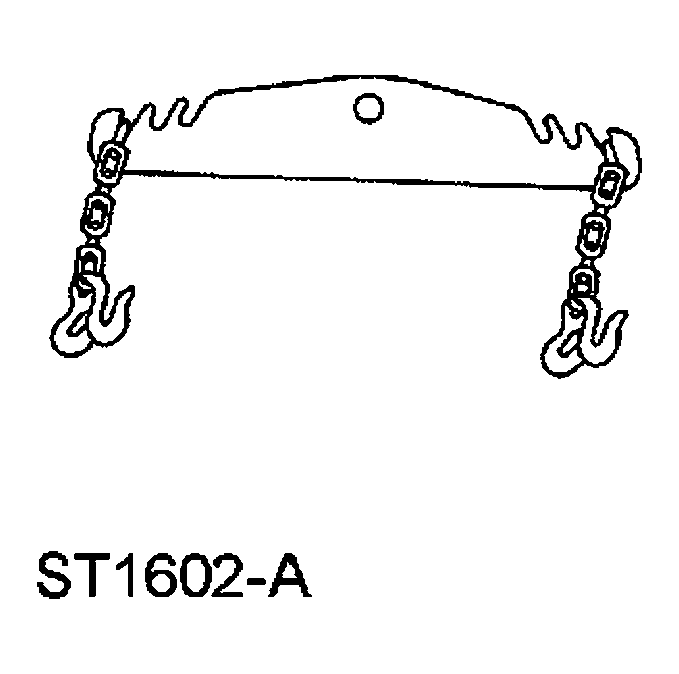

	Spreader Bar 303-D089 (D93P-6001-A3)

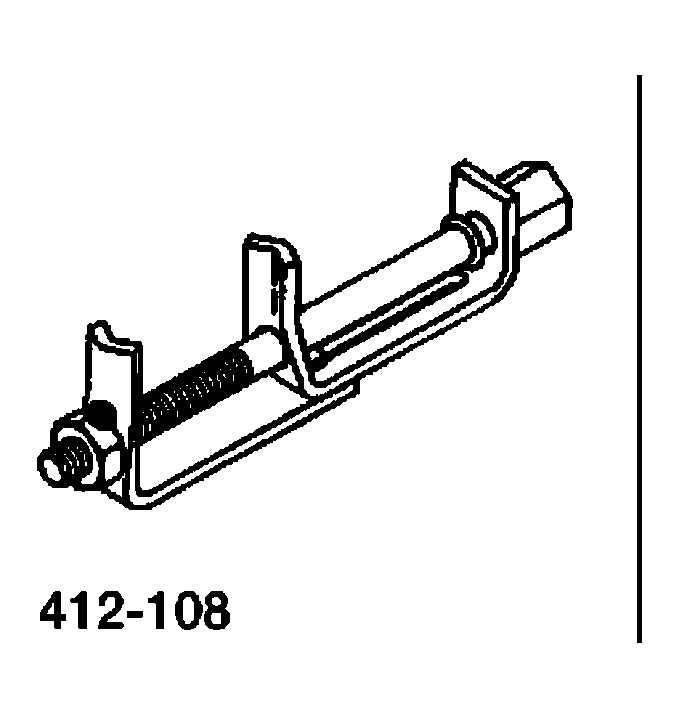

	Remover/Installer, Cooling Hose Clamp 412-108 (T96P-18539-A)

All vehicles

1. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
WARNING: To prevent the risk of scalding, place a thick cloth over the filler cap before opening the cooling circuit. Failure to do so can result in injury.
2. Release the coolant system pressure.
3. Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
4. Remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
5. Detach the ground cable from the inner fender.

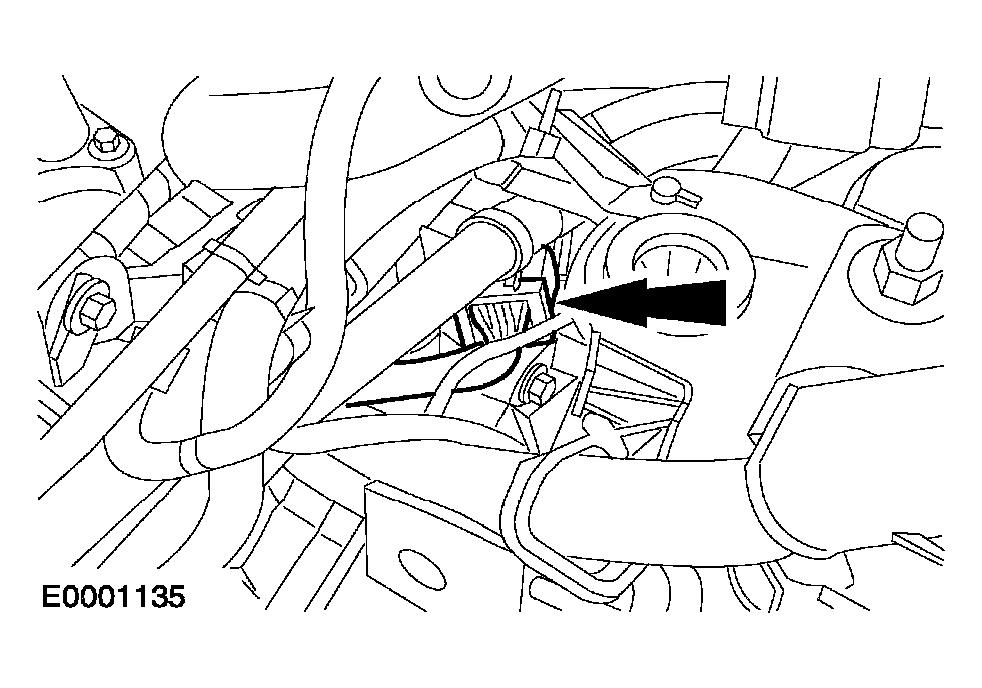

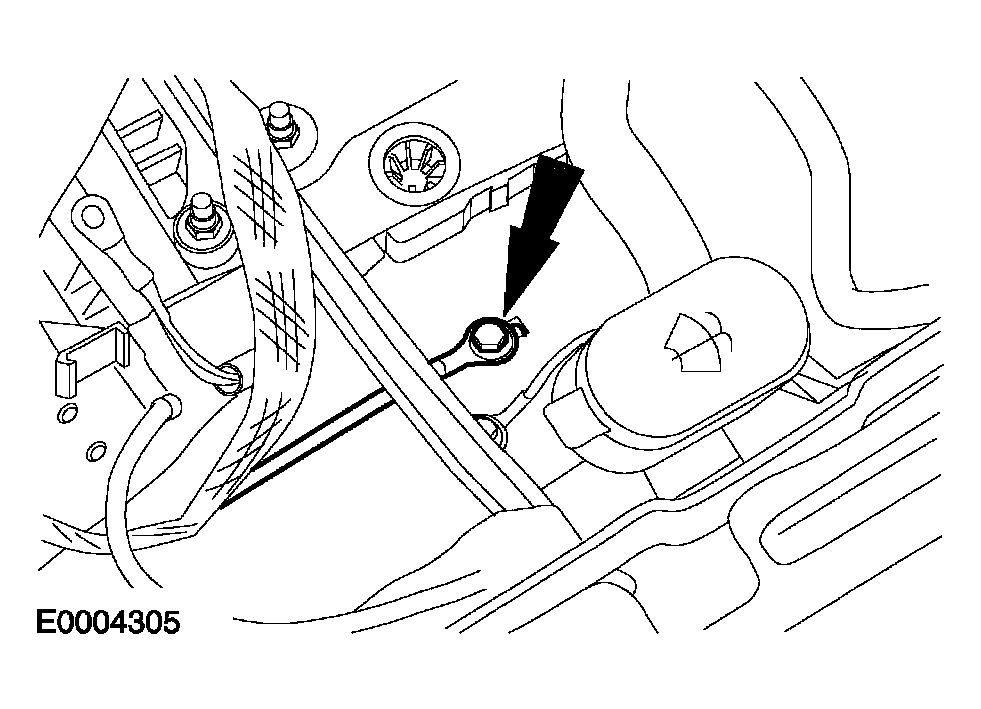

   Fig 1: Detaching Ground Cable

   Courtesy of FORD MOTOR CO.
NOTE: The resonator is a push fit in the bracket.
Fig 2: Removing Air Cleaner Intake Tube And Resonator
Courtesy of FORD MOTOR CO.
6. Remove the air cleaner intake tube and resonator.

Vehicles with air conditioning

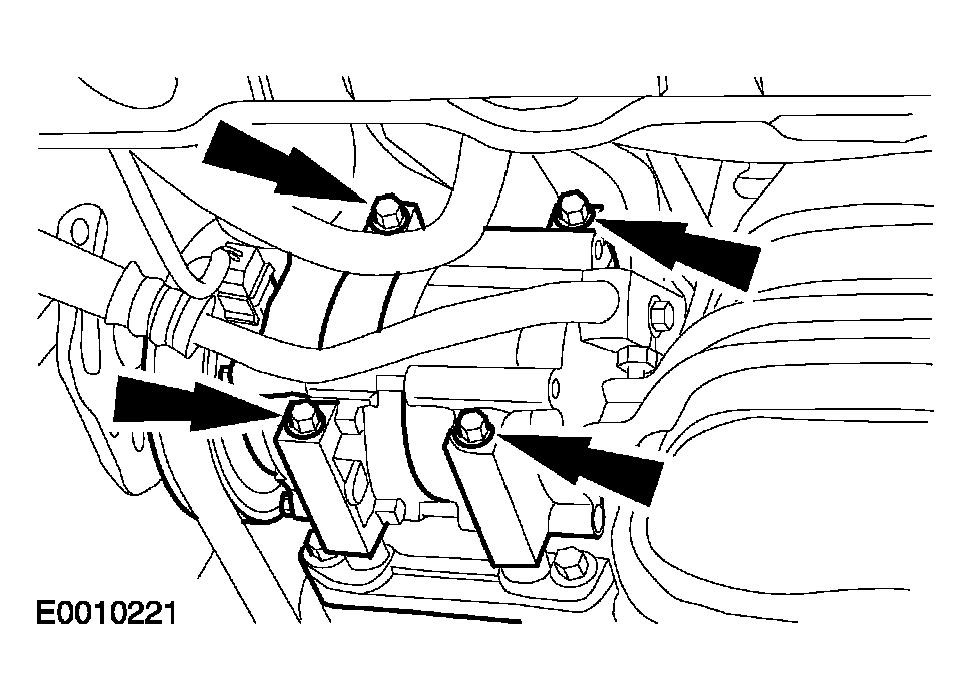

7. Remove the air conditioning (A/C) compressor and secure it to the radiator crossmember.
   Fig 3: Removing Air Conditioning (A/C) Compressor

   Courtesy of FORD MOTOR CO.

All vehicles

WARNING: Danger of scalding if the engine is warm.
Fig 4: Identifying Coolant Drain Plug
Courtesy of FORD MOTOR CO.
8. Drain the coolant (shown from below).
   • Allow the coolant to drain into a suitable container.
   • Install the drain plug after draining.
9. Drain the engine.
   • Allow the oil to drain into a suitable container.

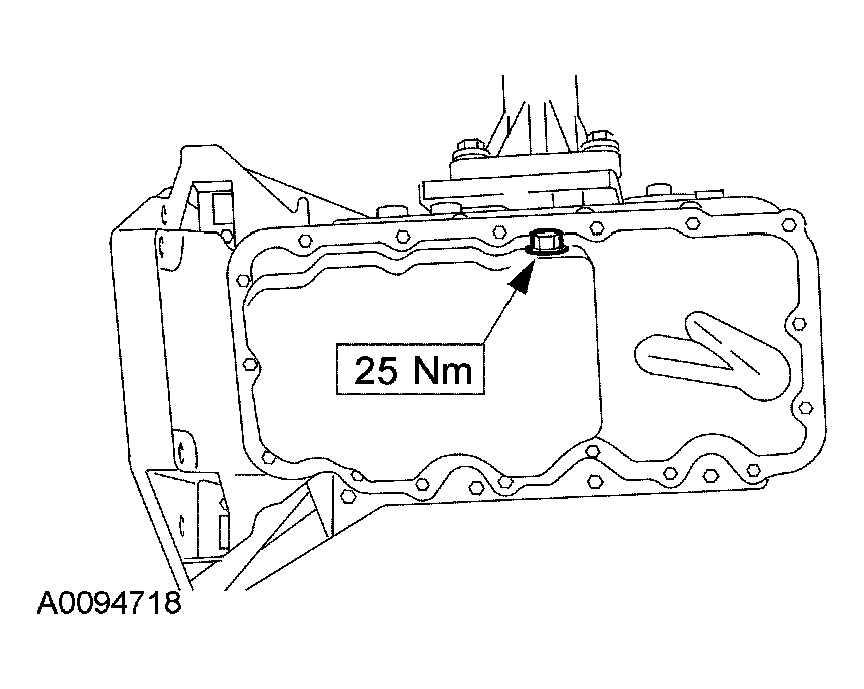

NOTE: Inspect the oil drain plug seal for damage. Install a new oil drain plug if necessary.
Fig 5: Inspecting Oil Drain Plug
Courtesy of FORD MOTOR CO.
10. Install the oil drain plug (engine shown remove for clarity).
11. Partially lower the vehicle.

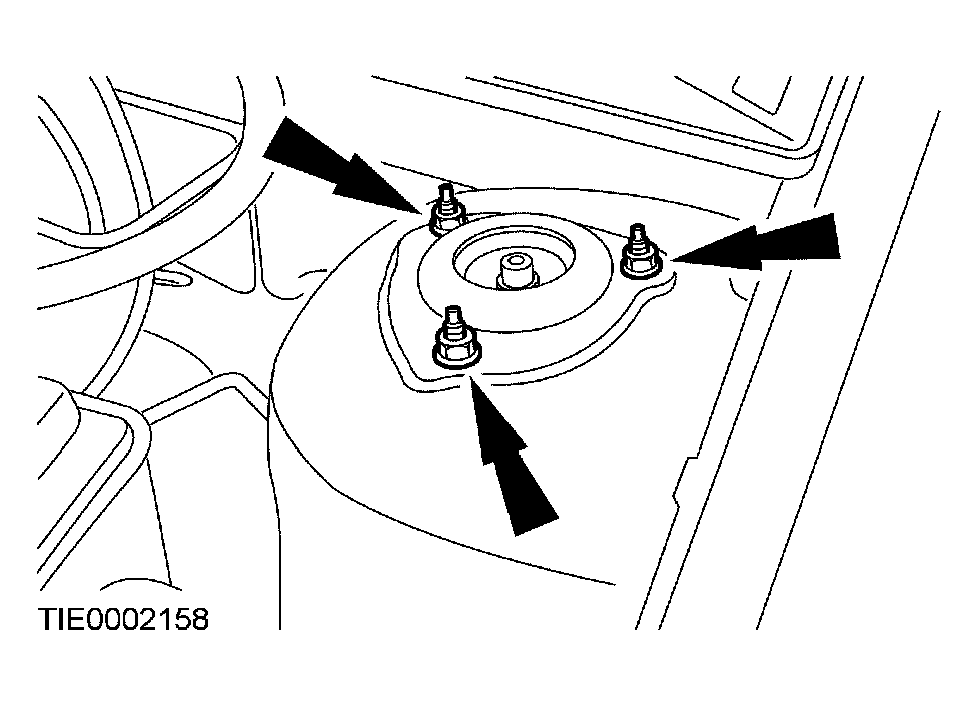

12. Loosen the strut and spring assembly upper mount retaining nuts by five turns on both sides.
    Fig 6: Loosening Strut And Spring Assembly Upper Mount Retaining Nuts

    Courtesy of FORD MOTOR CO.
13. Remove the splash shield.
    Fig 7: Removing Splash Shield

    Courtesy of FORD MOTOR CO.

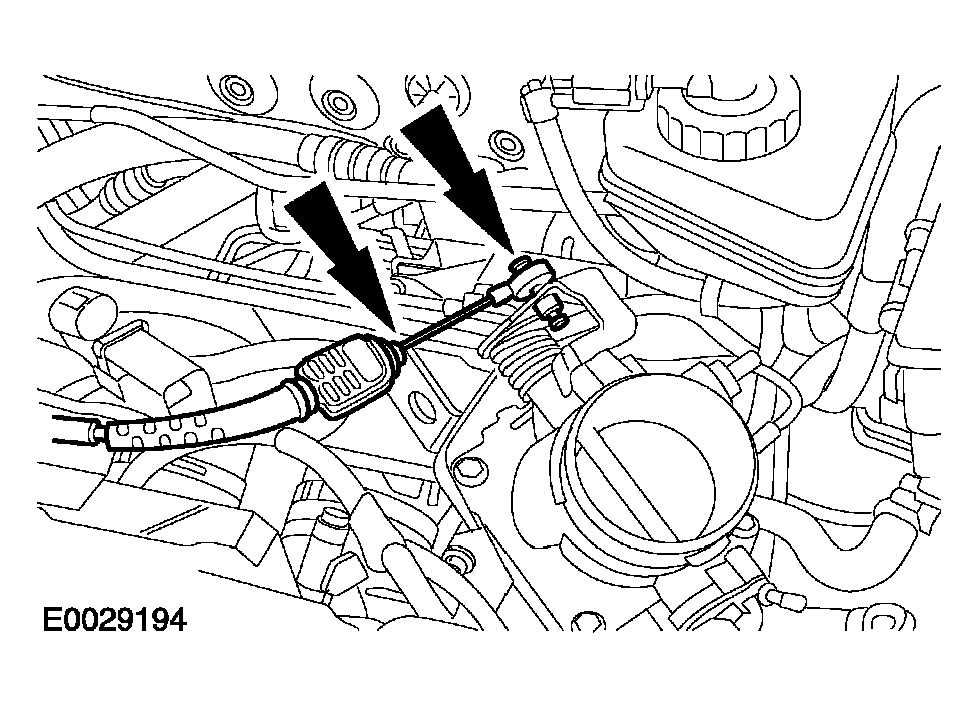

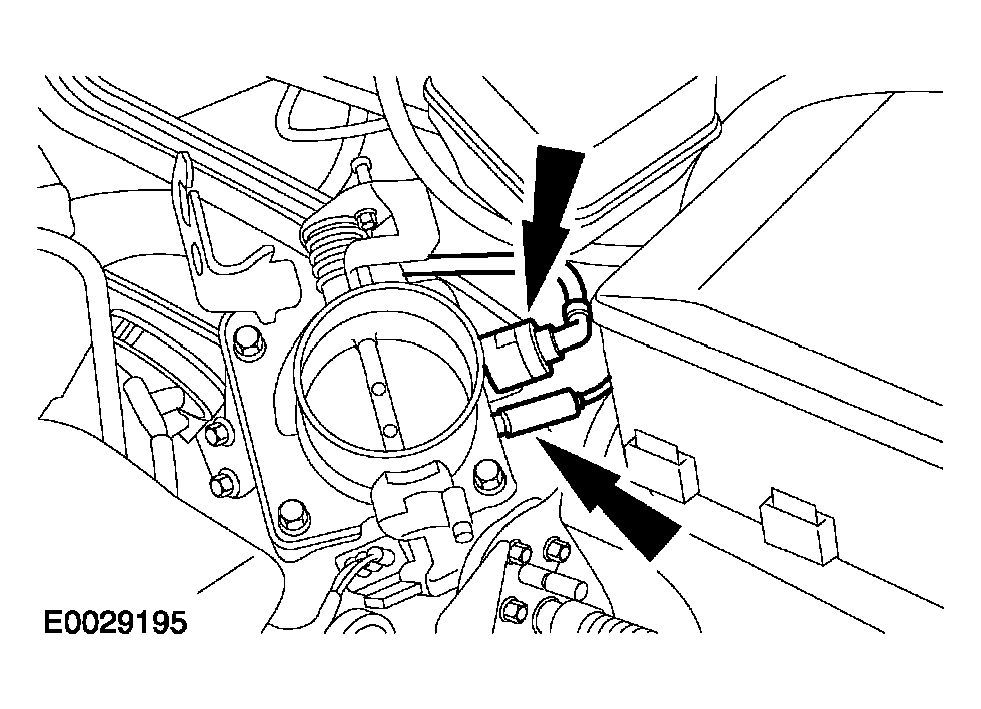

14. Detach the accelerator cable and the speed control cable (if equipped) from the throttle body.
    Fig 8: Detaching Accelerator Cable

    Courtesy of FORD MOTOR CO.

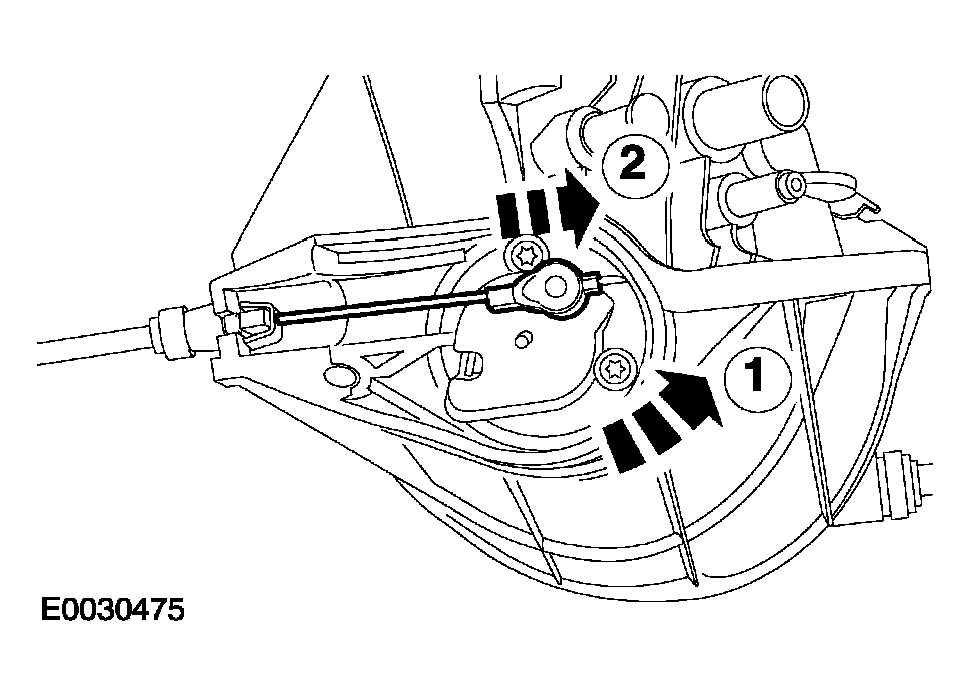

15. Detach the intake manifold runner control (IMRC) actuator cable from the IMRC lever (intake manifold assembly shown removed for clarity).
    1. Rotate the IMRC lever.
    2. Detach the IMRC actuator cable from the intake manifold.
    Fig 9: Detaching IMRC Actuator Cable From Intake Manifold

    Courtesy of FORD MOTOR CO.

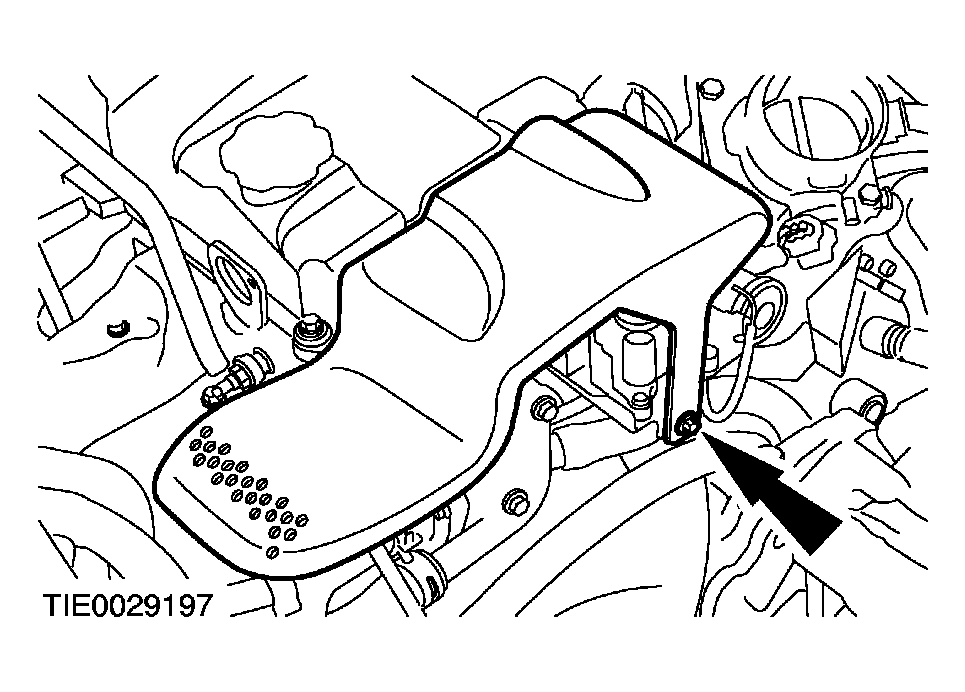

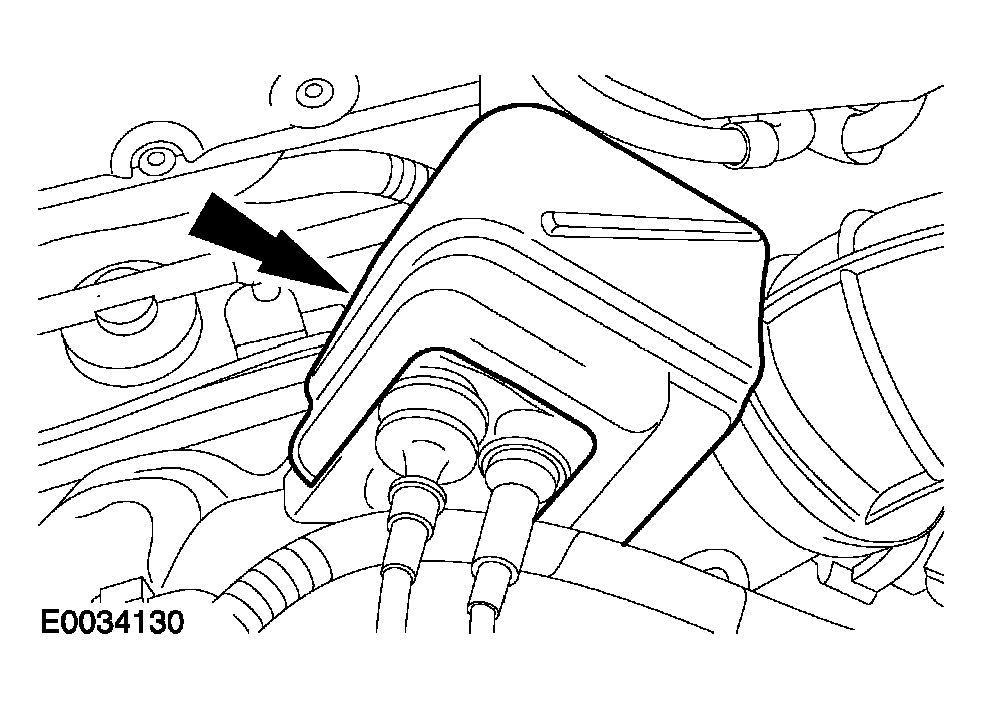

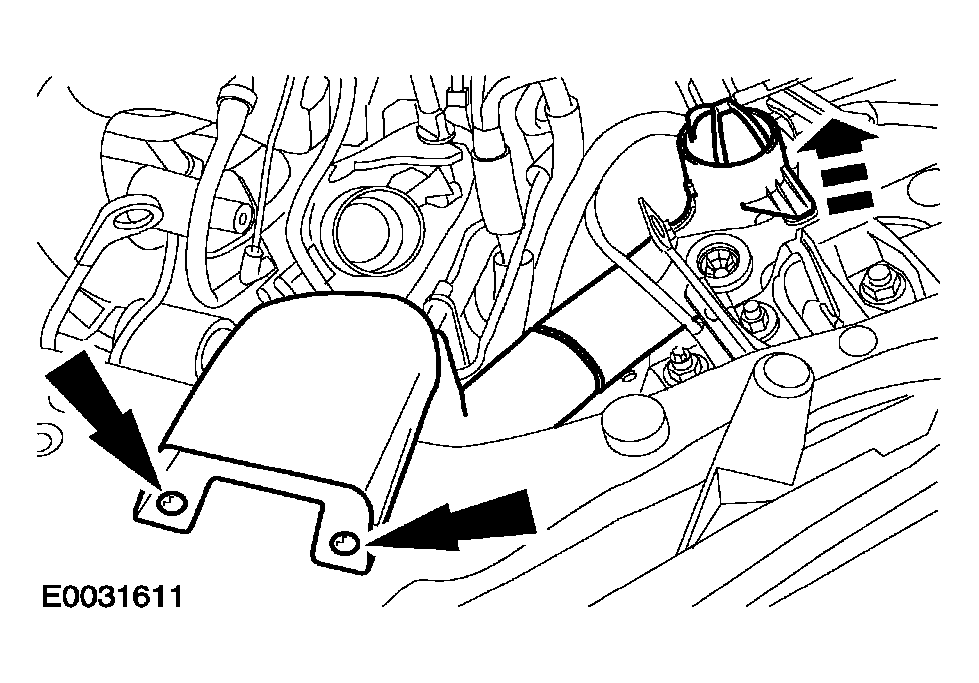

16. Remove the ignition coil pack cover.
    Fig 10: Removing Ignition Coil Pack Cover

    Courtesy of FORD MOTOR CO.

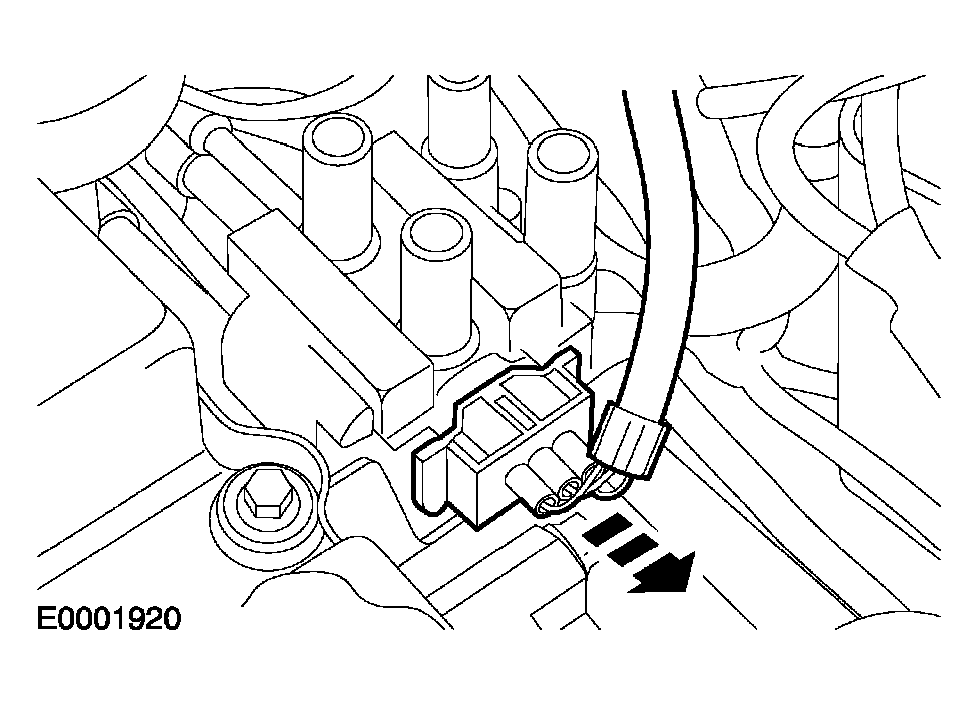

17. Disconnect the ignition coil pack electrical connector.
    • Disconnect the radio capacitor.
    Fig 11: Disconnecting Ignition Coil Pack Electrical Connector

    Courtesy of FORD MOTOR CO.

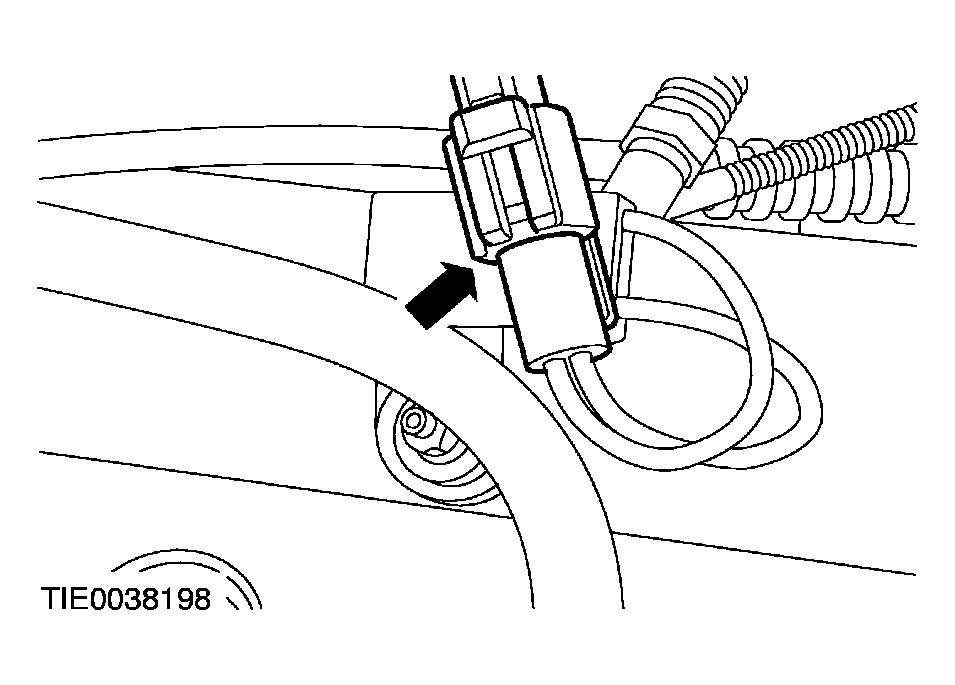

18. Disconnect the block heater harness (if equipped).
    Fig 12: Disconnecting Block Heater Harness

    Courtesy of FORD MOTOR CO.

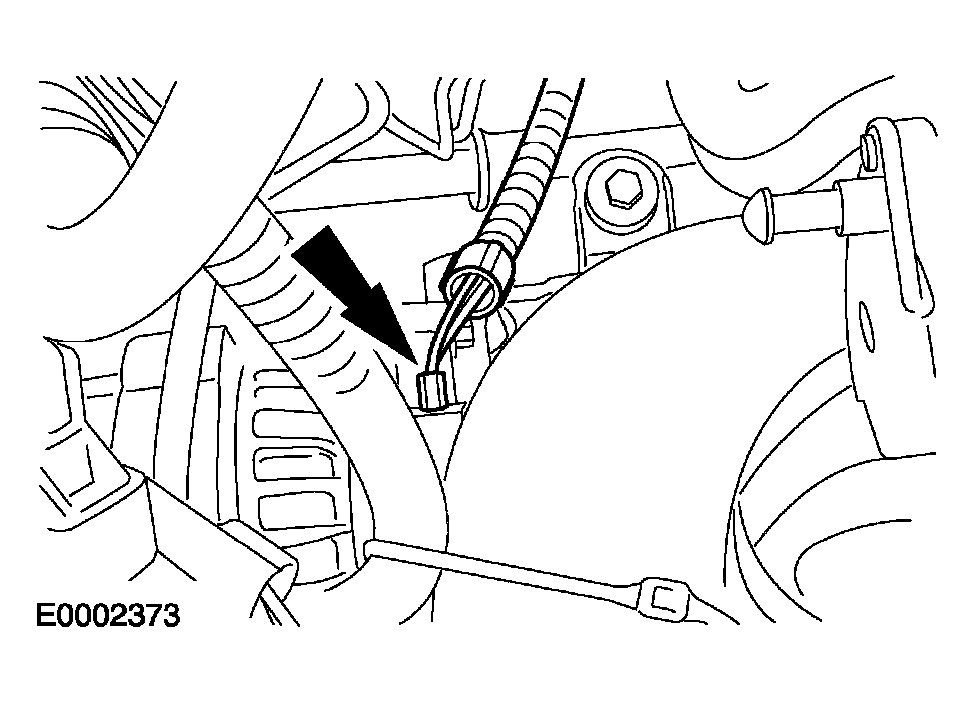

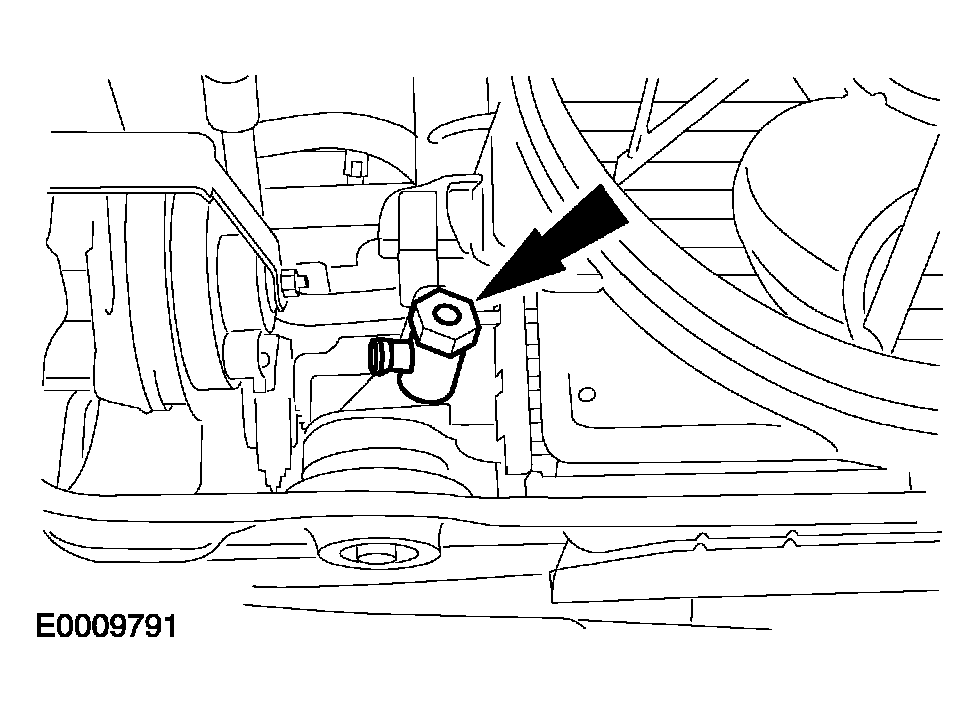

19. Disconnect the starter field wire electrical connector.
    Fig 13: Disconnecting Starter Field Wire Electrical Connector

    Courtesy of FORD MOTOR CO.

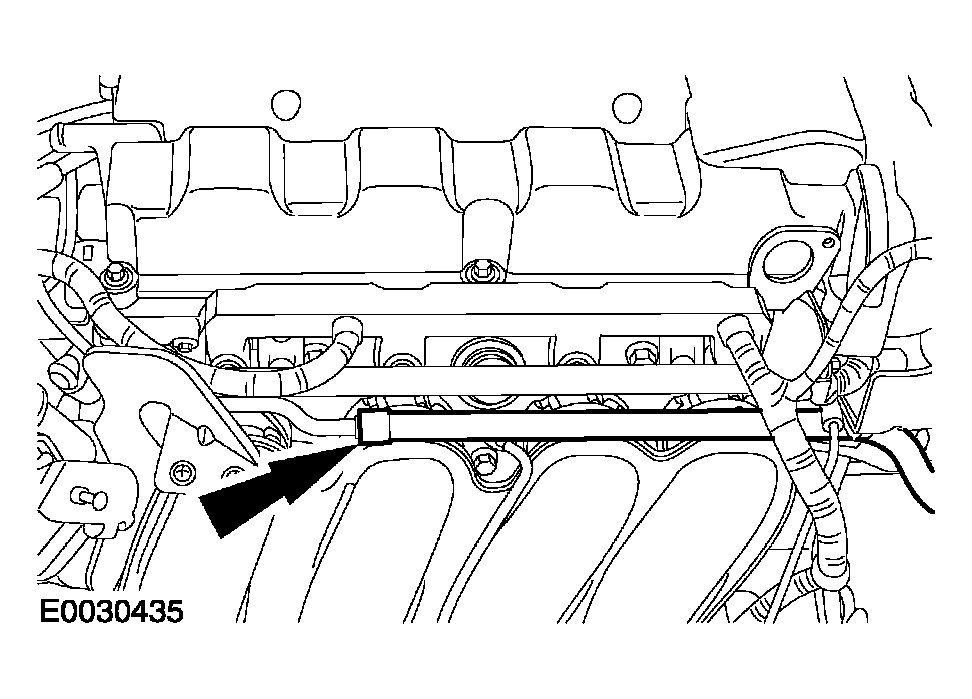

20. Disconnect the fuel injector wiring harness.
    Fig 14: Disconnecting Fuel Injector Wiring Harness

    Courtesy of FORD MOTOR CO.
21. Disconnect the ground cable from the engine lifting eye.
22. Disconnect the generator electrical connector.
    Fig 15: Disconnecting Generator Electrical Connector

    Courtesy of FORD MOTOR CO.
WARNING: Escaping brake fluid. Do not allow brake fluid to come into contact with the skin or eyes. If brake fluid should come into contact with your skin or eyes, rinse the affected area immediately with water.
CAUTION: If any brake fluid gets on the paintwork wash it off immediately with water.
Fig 16: Removing Clutch Line
Courtesy of FORD MOTOR CO.
23. Detach the hydraulic line from the clutch slave cylinder.
    • Remove the clip.
    • Remove the clutch line and secure it to one side using cable ties.

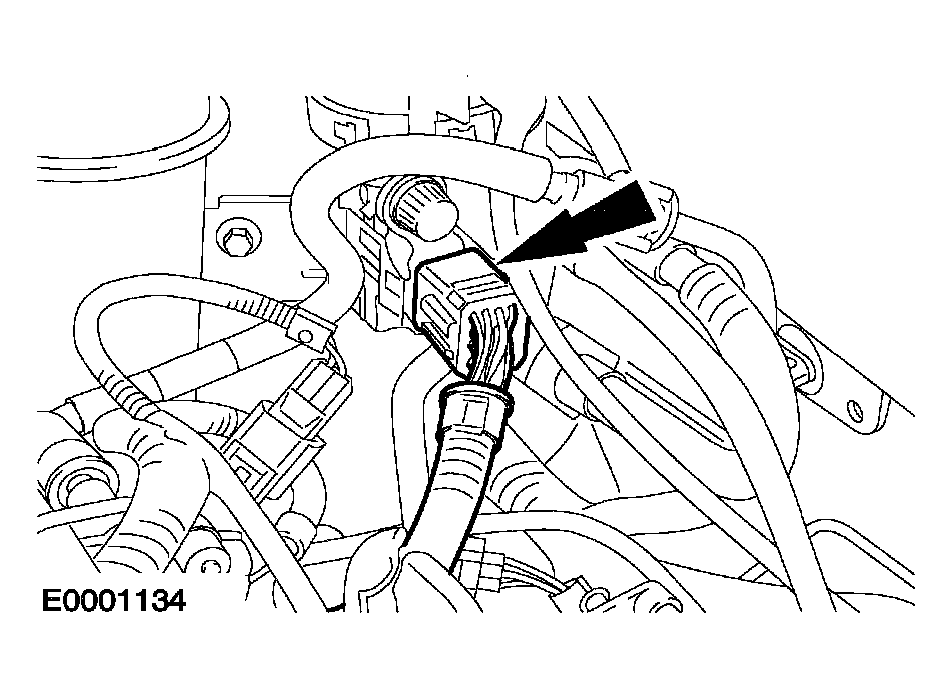

24. Disconnect the wiring harness electrical connector.
    Fig 17: Disconnecting Wiring Harness Electrical Connector

    Courtesy of FORD MOTOR CO.
25. Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .

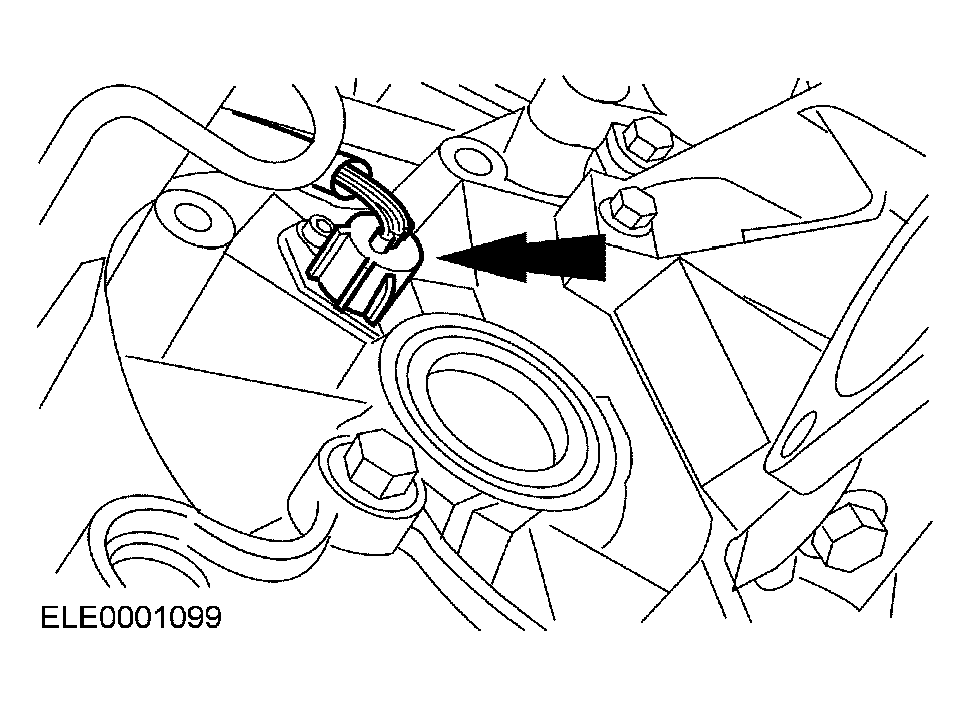

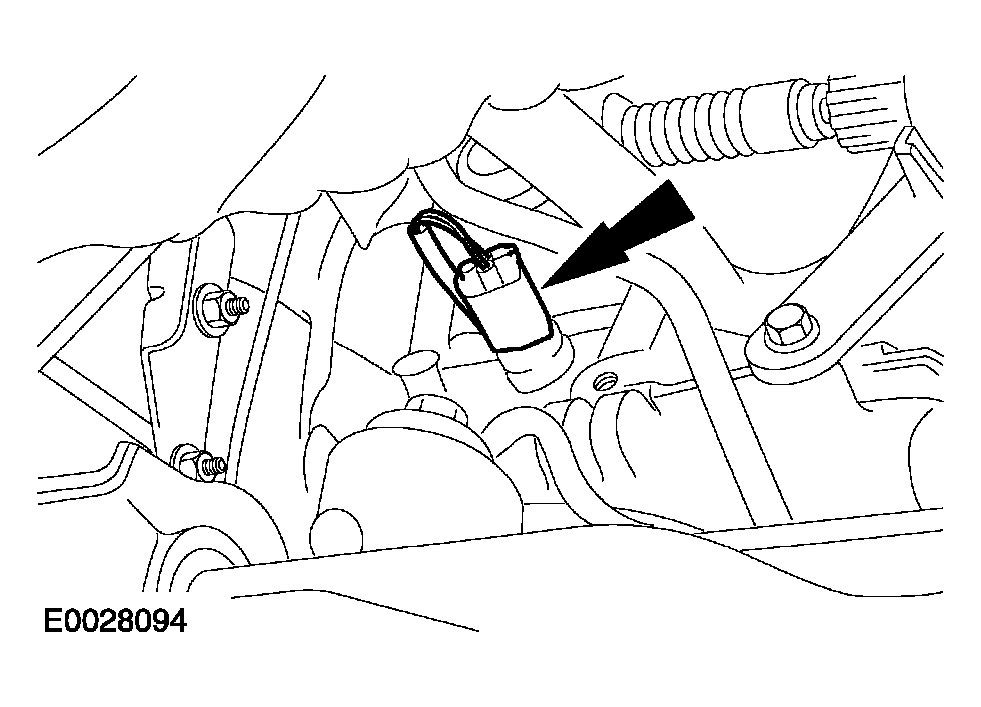

26. Disconnect the vehicle speed sensor (VSS) electrical connector.
    Fig 18: Disconnecting Vehicle Speed Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
27. Disconnect the reversing lamp switch electrical connector.
    Fig 19: Disconnecting Reversing Lamp Switch Electrical Connector

    Courtesy of FORD MOTOR CO.
28. Partially lower the vehicle.
29. Disconnect the vacuum hoses from the intake manifold.
    Fig 20: Disconnecting Vacuum Hoses From Intake Manifold

    Courtesy of FORD MOTOR CO.
30. Detach the brake booster pipe from the intake manifold.
    • Release the quick release coupling and detach the brake booster pipe.
    Fig 21: Detaching Brake Booster Pipe From Intake Manifold

    Courtesy of FORD MOTOR CO.
WARNING: Escaping fuel. Observe the safety regulations for working with fuel.

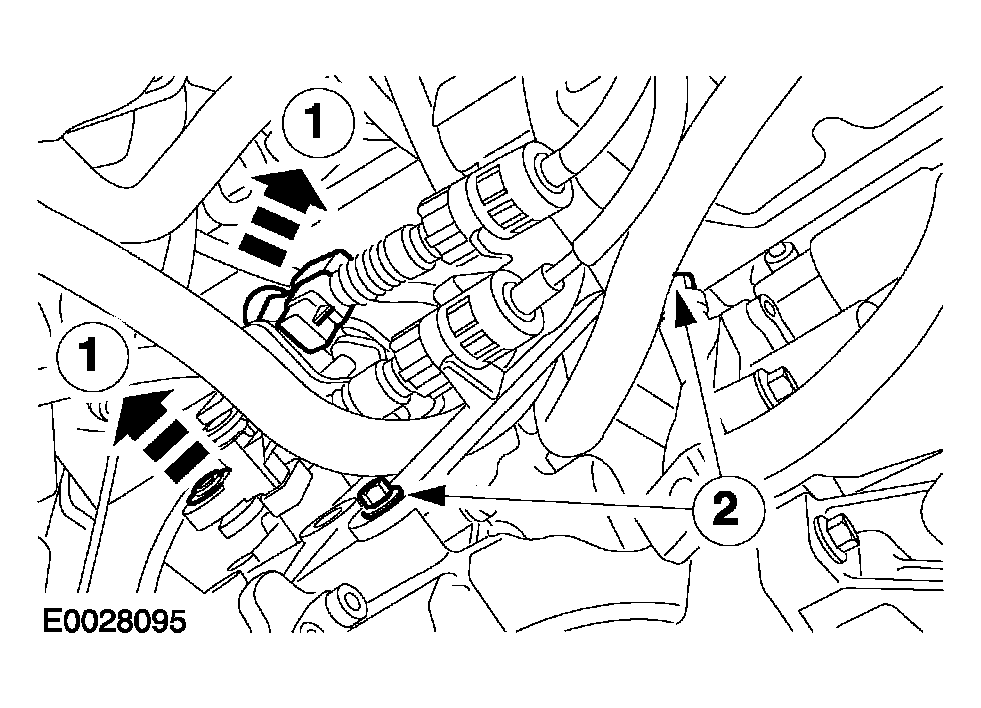

Fig 22: Detaching Fuel Lines
Courtesy of FORD MOTOR CO.
31. Detach the fuel lines.
    • Detach the ground cable.

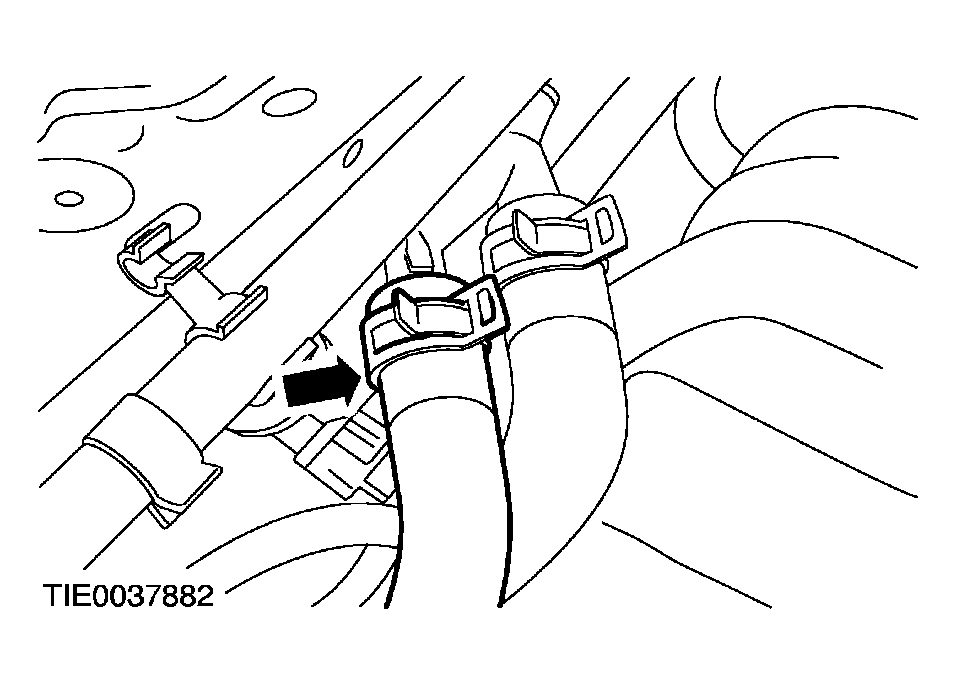

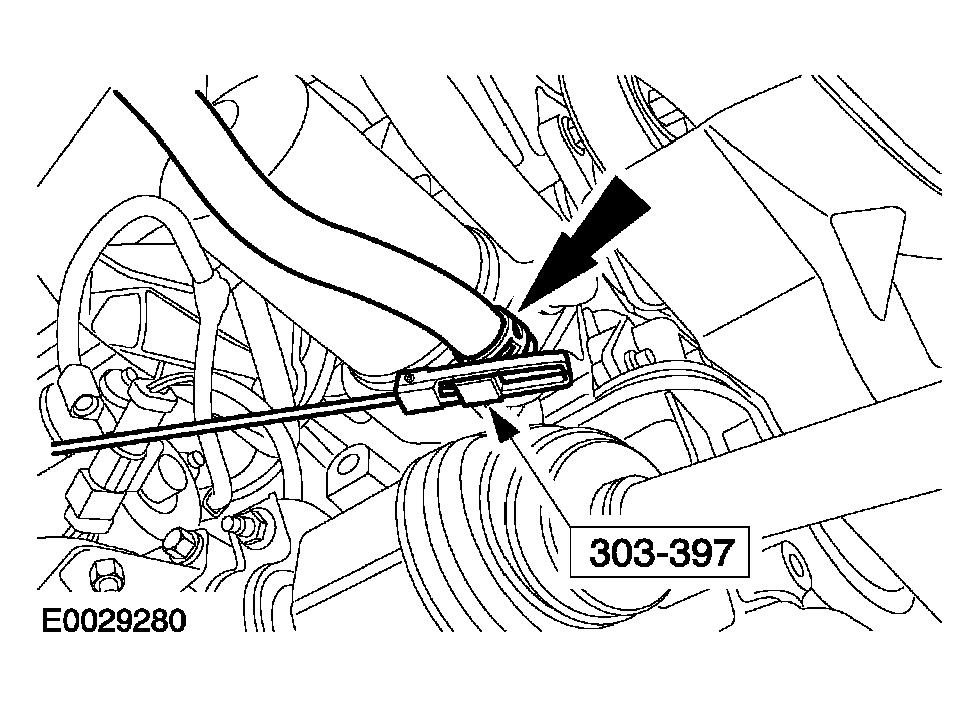

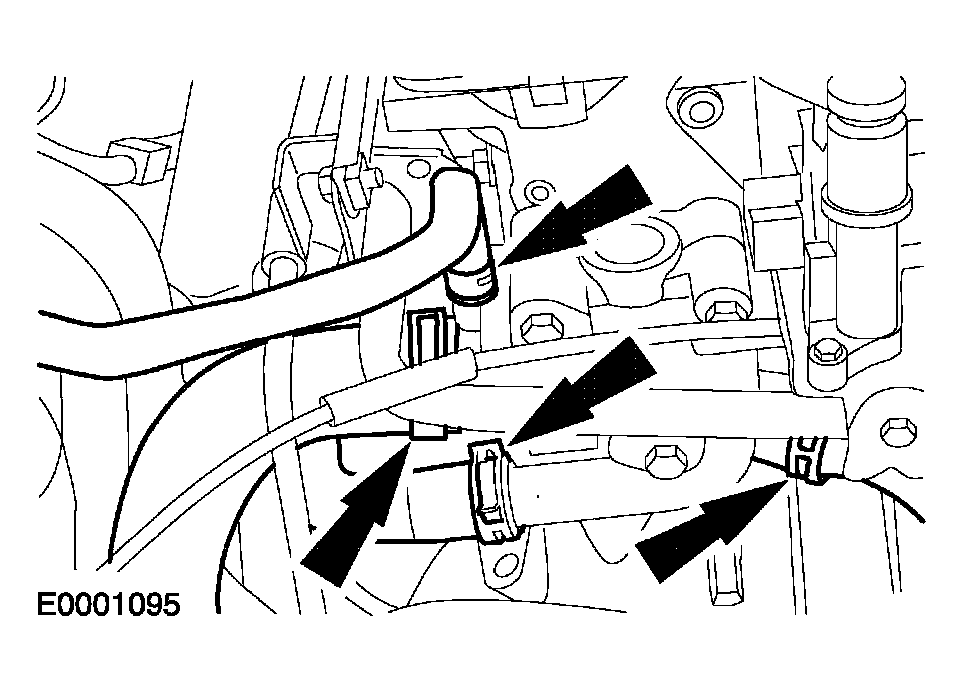

32. Detach the coolant hoses.
    Fig 23: Detaching Coolant Hoses

    Courtesy of FORD MOTOR CO.
33. Disconnect the oil cooler hose.
    Fig 24: Disconnecting Oil Cooler Hose

    Courtesy of FORD MOTOR CO.

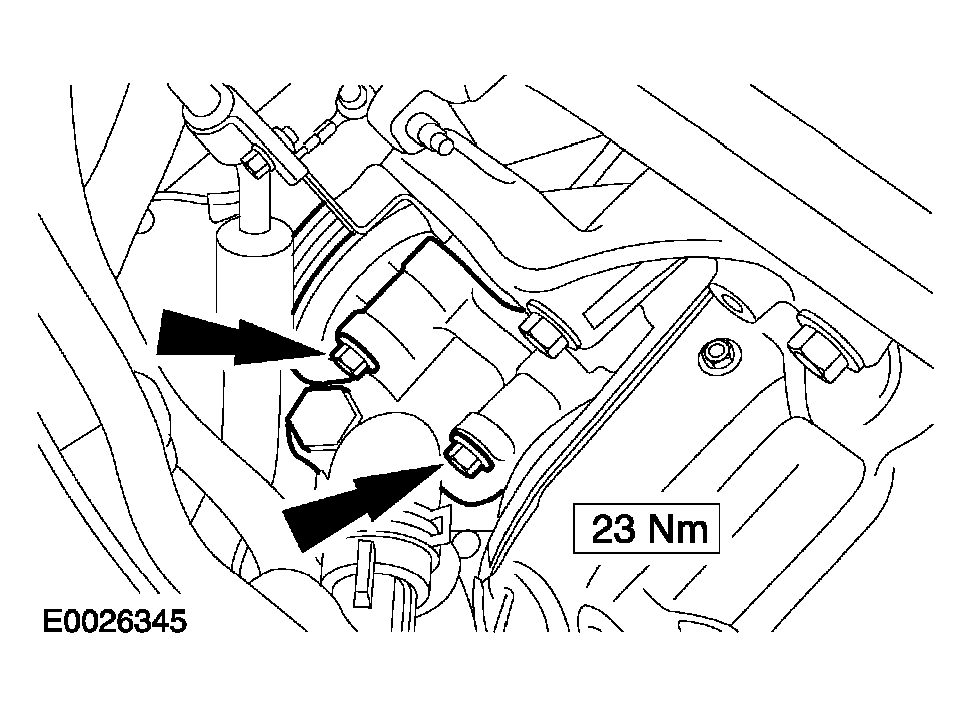

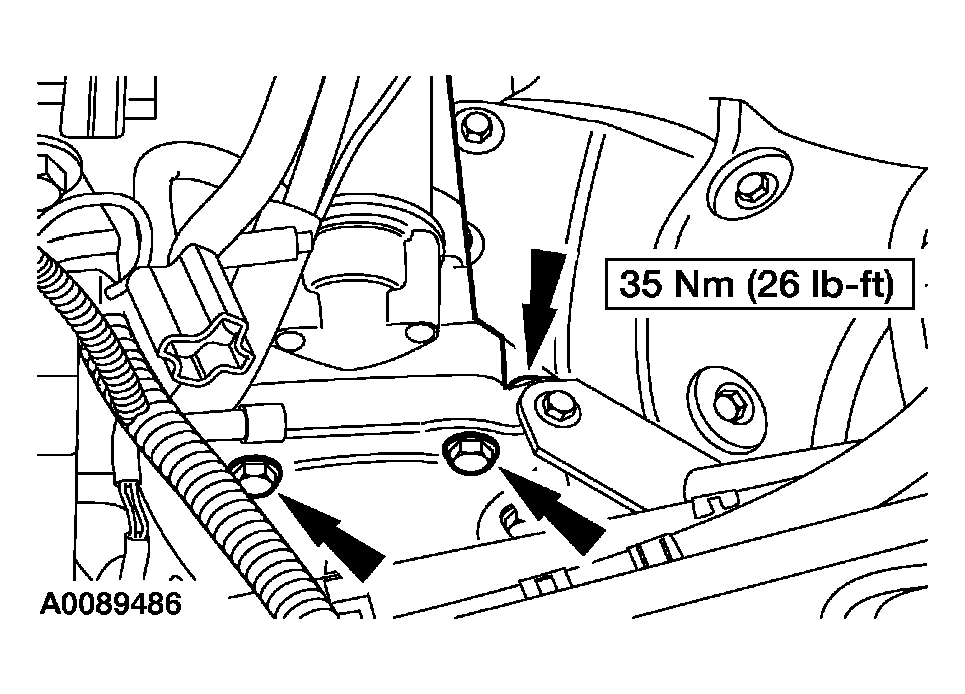

34. Remove the power steering pump upper bolts.
    Fig 25: Removing Power Steering Pump Upper Bolts

    Courtesy of FORD MOTOR CO.
35. Detach the gearshift cables from the transaxle.
    1. Detach the gearshift cable and the selector cable from the selector levers.
    2. Detach the retaining bracket from the transaxle.
    Fig 26: Detaching Gearshift Cables From Transaxle

    Courtesy of FORD MOTOR CO.
36. Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .

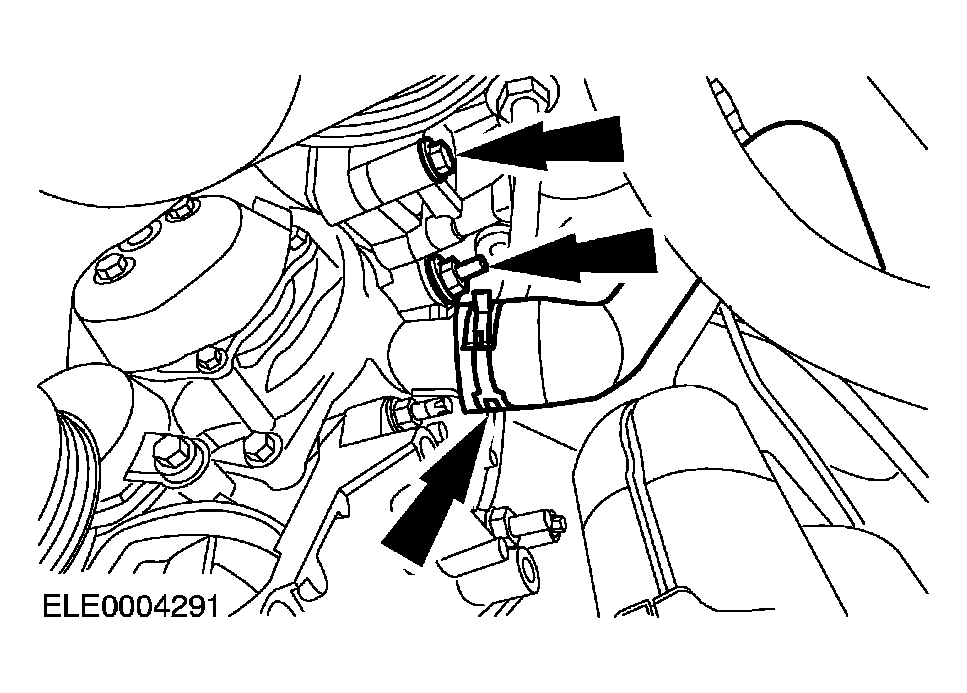

37. Remove the power steering pump lower retaining bolts and disconnect the radiator lower coolant hose from the water pump housing.
    Fig 27: Removing Power Steering Pump Lower Retaining Bolts And Disconnecting Radiator Lower Coolant Hose

    Courtesy of FORD MOTOR CO.

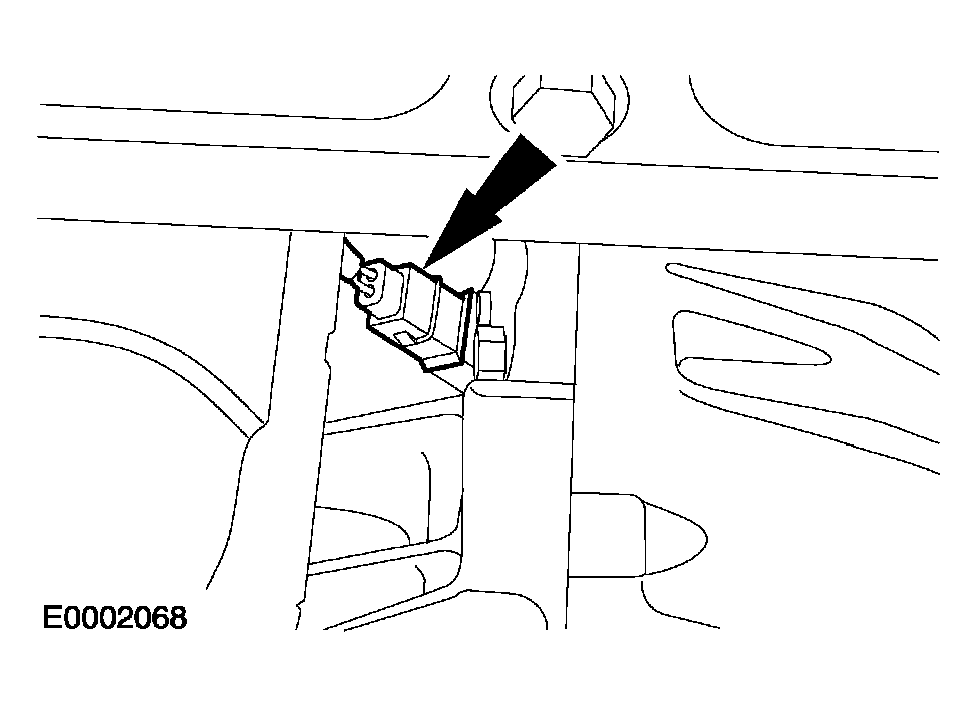

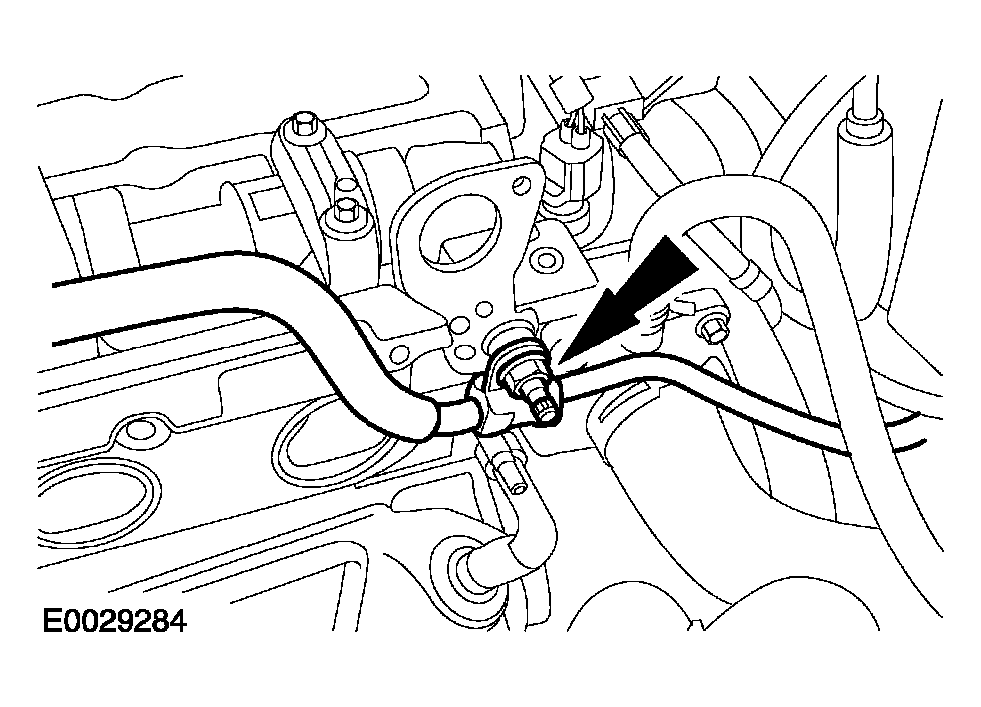

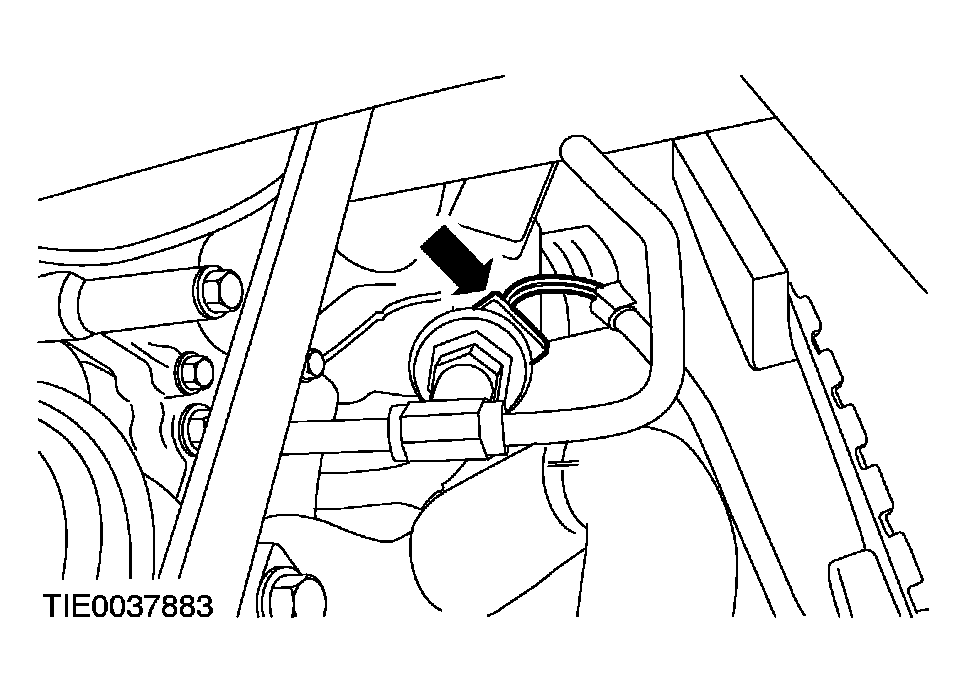

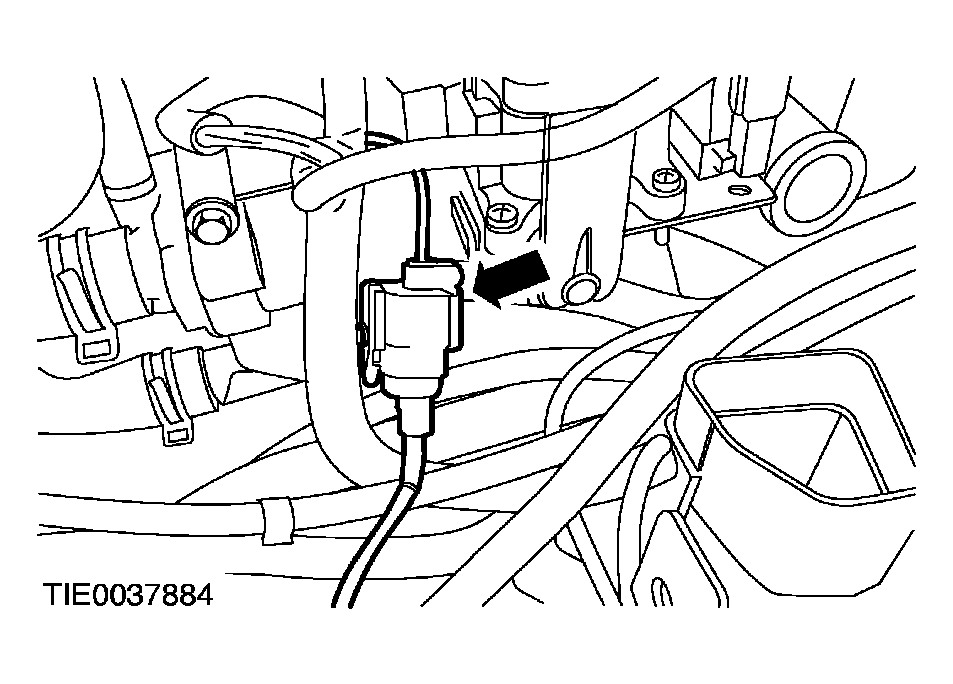

38. Disconnect the power steering pressure (PSP) switch electrical connector.
    Fig 28: Disconnecting Power Steering Pressure Switch Electrical Connector

    Courtesy of FORD MOTOR CO.

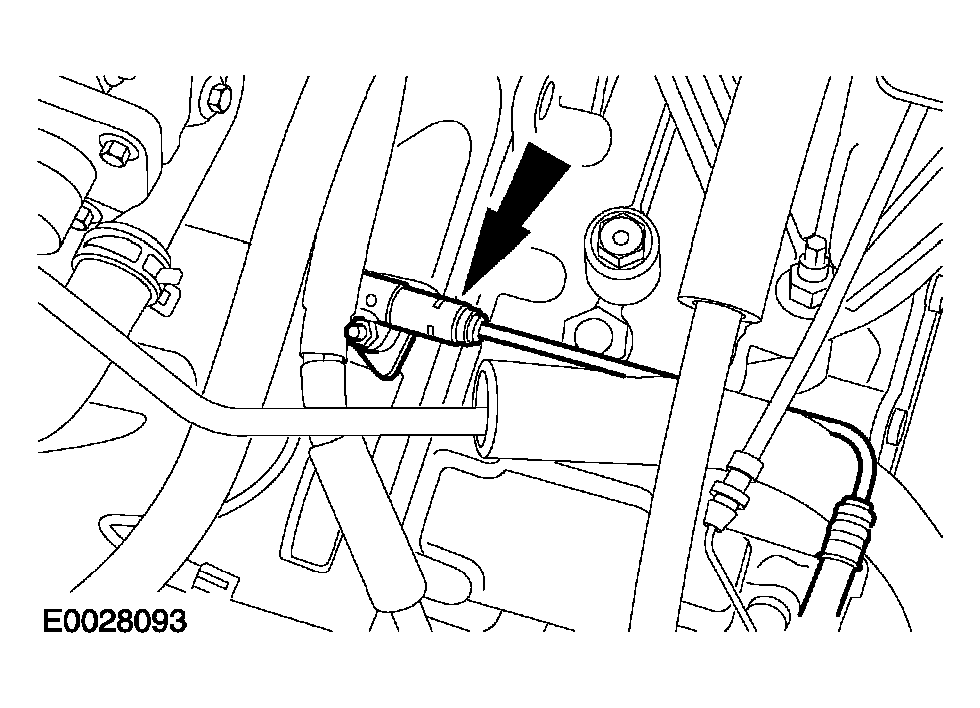

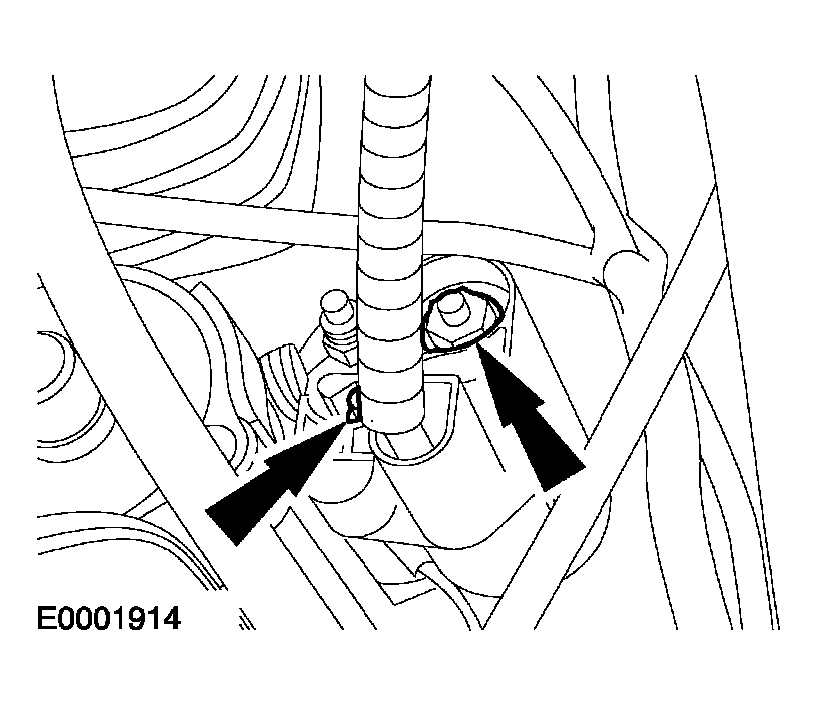

39. Disconnect the crankshaft position (CKP) sensor connector.
    Fig 29: Disconnecting Crankshaft Position Sensor Connector

    Courtesy of FORD MOTOR CO.
40. Detach the coolant hose from the oil cooler.
    Fig 30: Detaching Coolant Hose From Oil Cooler

    Courtesy of FORD MOTOR CO.
41. Lower the vehicle.

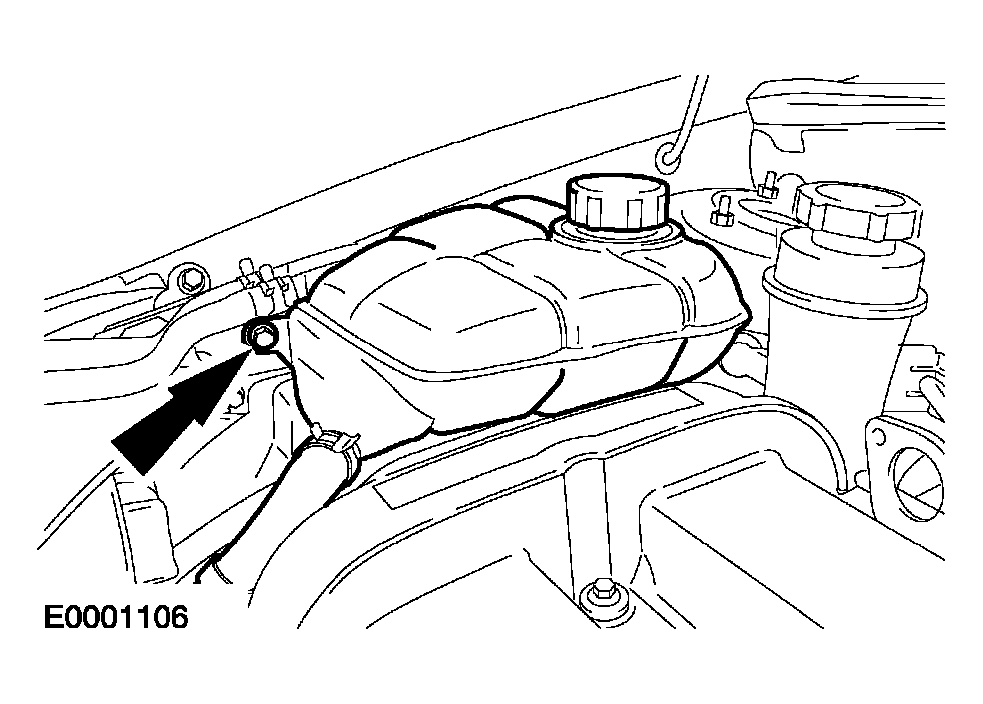

42. Detach the coolant expansion tank and position it to one side.
    Fig 31: Detaching Coolant Expansion Tank

    Courtesy of FORD MOTOR CO.
43. Drain the power assisted steering (PAS) reservoir.

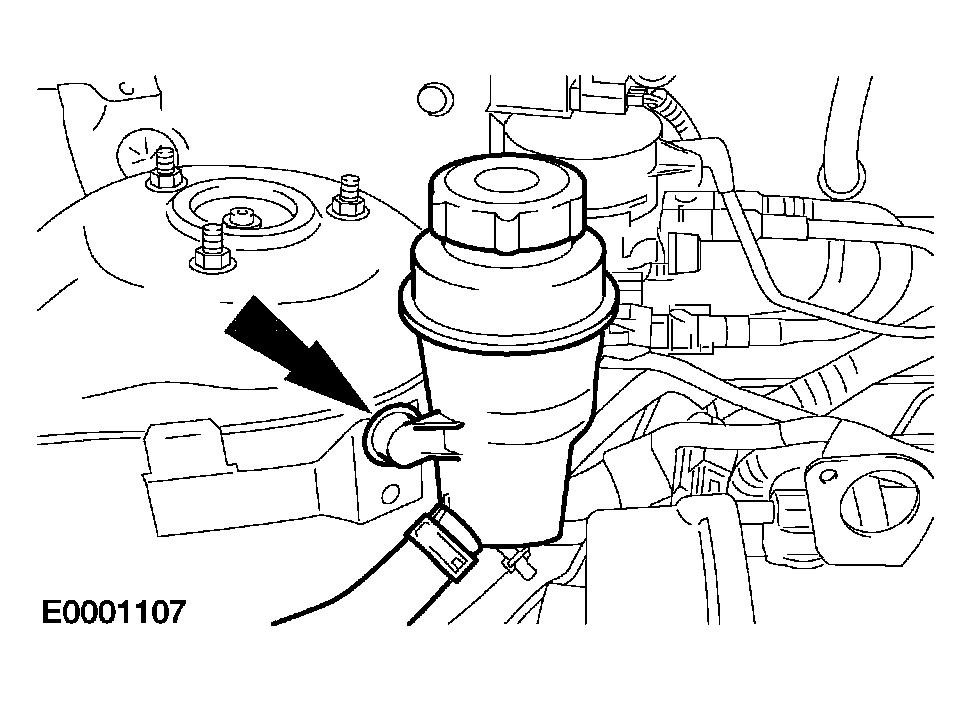

44. Detach the PAS reservoir and position it to one side.
    Fig 32: Detaching PAS Reservoir

    Courtesy of FORD MOTOR CO.

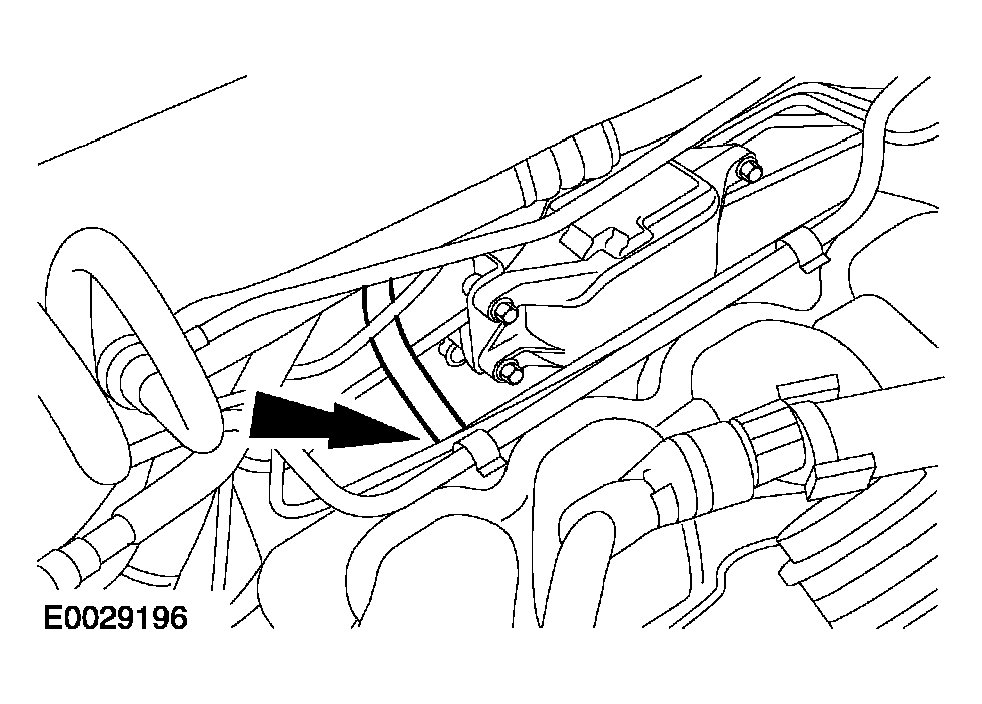

45. Detach the power steering line bracket from the cylinder head.
    Fig 33: Detaching Power Steering Line Bracket From Cylinder Head

    Courtesy of FORD MOTOR CO.

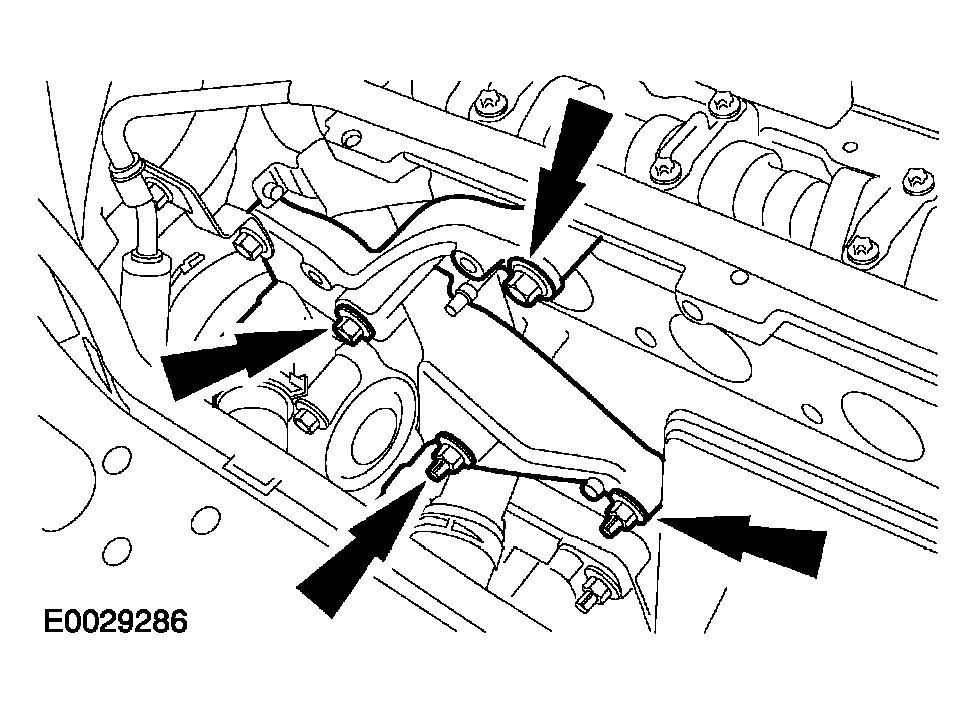

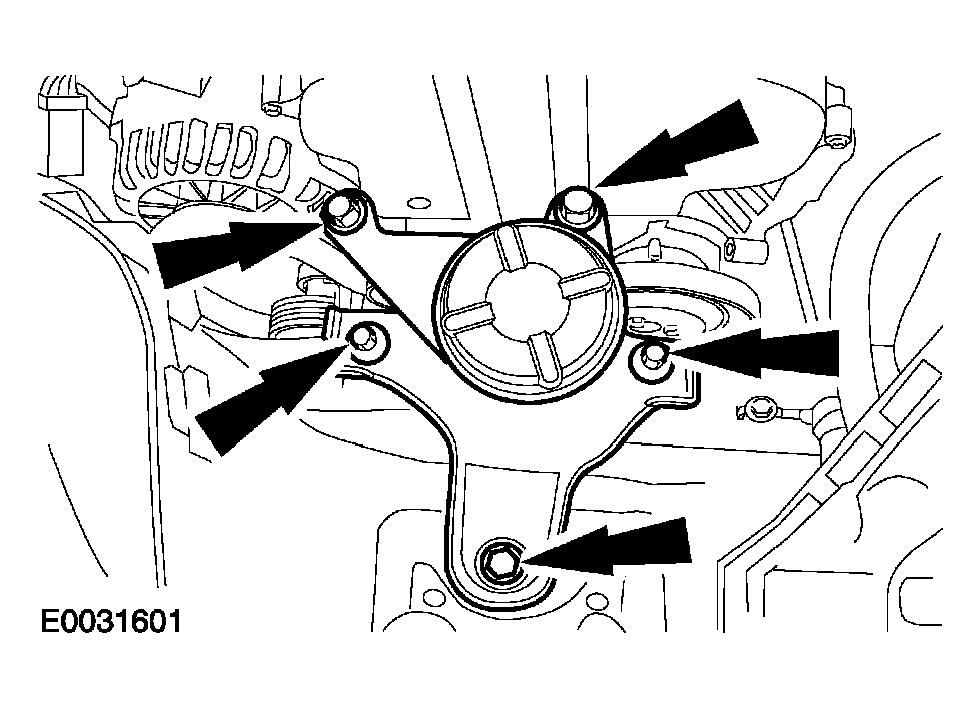

46. Remove the power steering pump bracket.
    Fig 34: Removing Power Steering Pump Bracket

    Courtesy of FORD MOTOR CO.
47. Remove the crossmember.
CAUTION: The catalytic converter must be supported while the support bracket is removed.

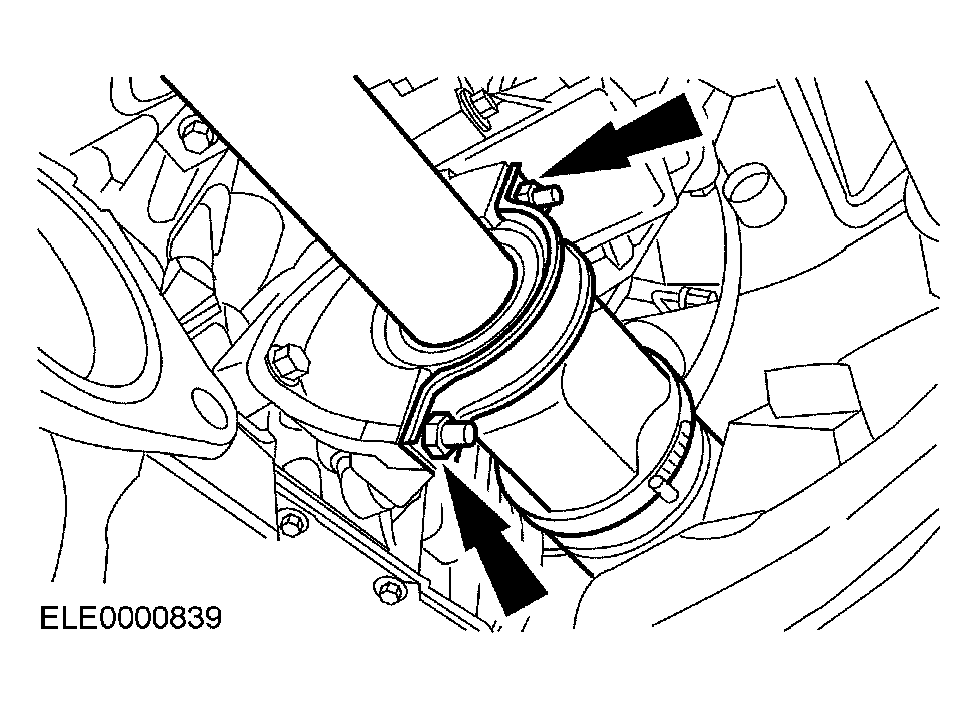

Fig 35: Removing Catalytic Converter Support Bracket
Courtesy of FORD MOTOR CO.
48. Remove the catalytic converter support bracket.
    • Remove the catalyst monitor sensor.

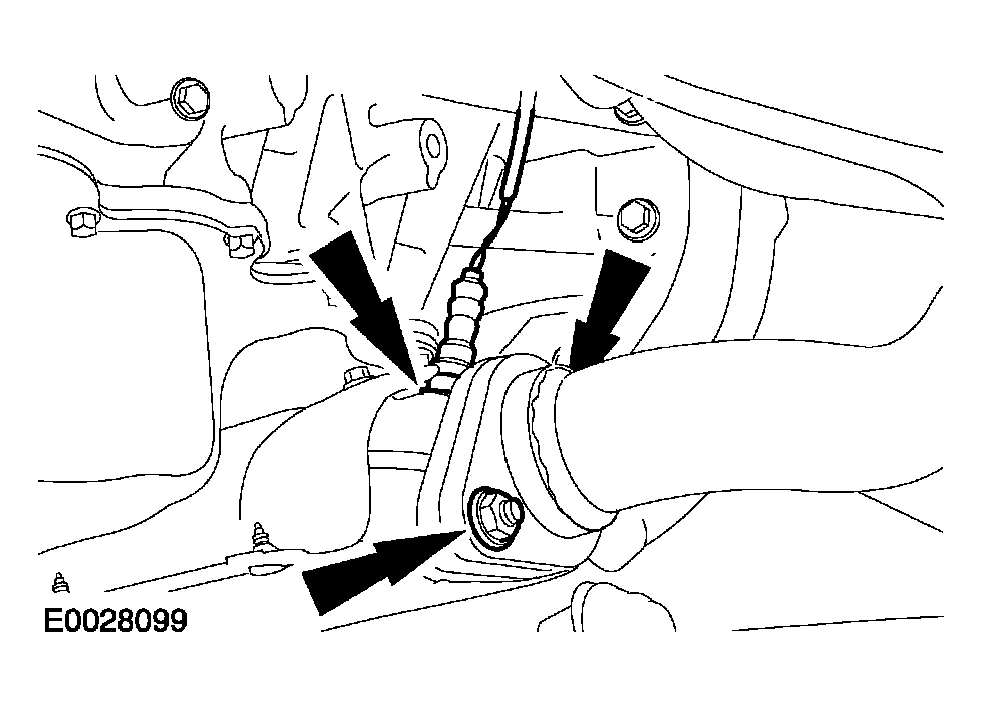

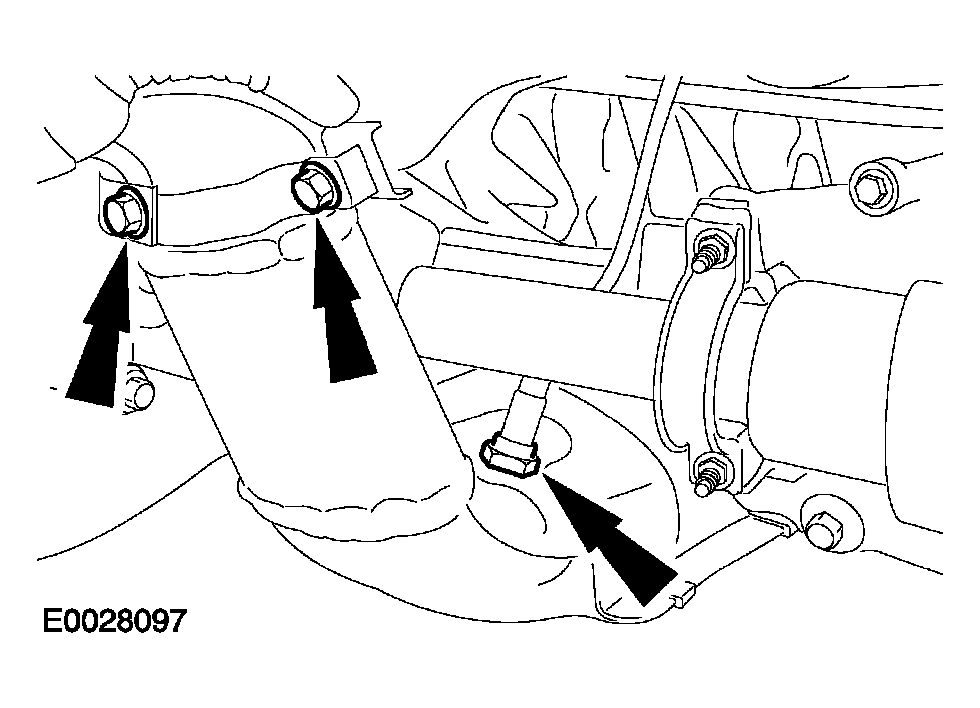

49. Detach the catalytic converter from the exhaust manifold.
    • Discard the gasket and nuts.
    • Remove the heated oxygen (HO2S) sensor.
    Fig 36: Detaching Catalytic Converter From Exhaust Manifold

    Courtesy of FORD MOTOR CO.

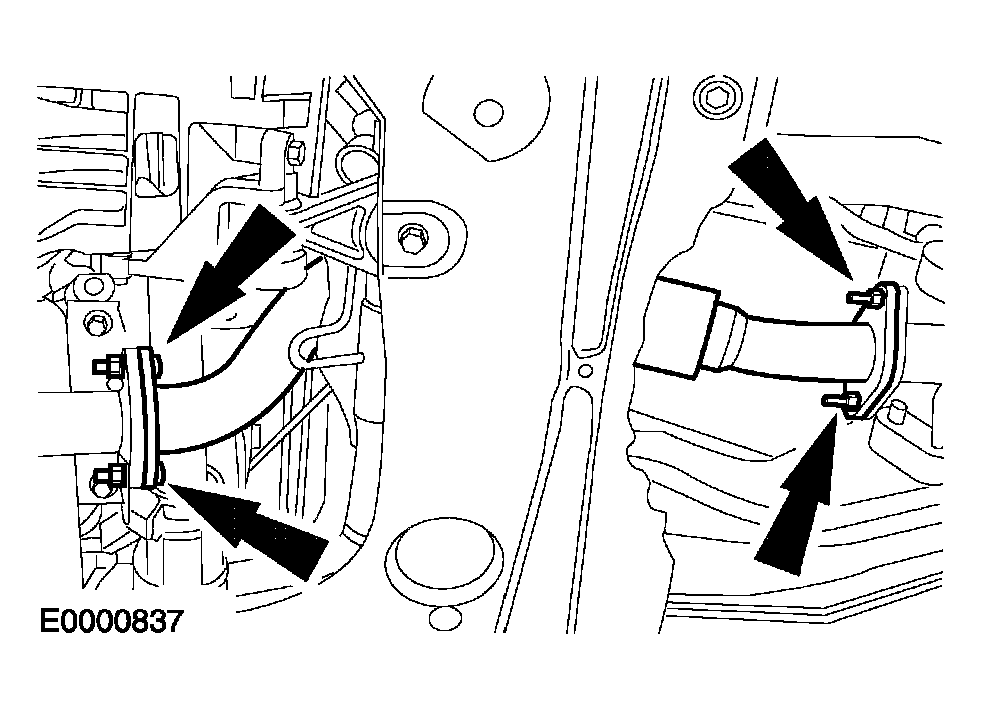

50. Remove the flexible exhaust pipe.
    Fig 37: Removing Flexible Exhaust Pipe

    Courtesy of FORD MOTOR CO.
CAUTION: Support the halfshaft. The inner joint must not be bent at more than 18 degrees. The outer joint must not be bent at more than 45 degrees.
CAUTION: Do not damage the halfshaft oil seal.
NOTE: Plug the transaxle to prevent oil loss or dirt ingress.
Fig 38: Detaching RH Halfshaft And Intermediate Shaft From Transaxle
Courtesy of FORD MOTOR CO.
51. Detach the RH halfshaft and the intermediate shaft from the transaxle and secure it to one side.
    • Allow the oil to drain into a suitable container.
    • Discard the center bearing cap and locknuts.
CAUTION: Support the halfshaft. The inner joint must not be bent at more than 18 degrees. The outer joint must not be bent at more than 45 degrees.
CAUTION: Do not damage the halfshaft oil seal.
NOTE: Plug the transaxle to prevent oil loss or dirt ingress.

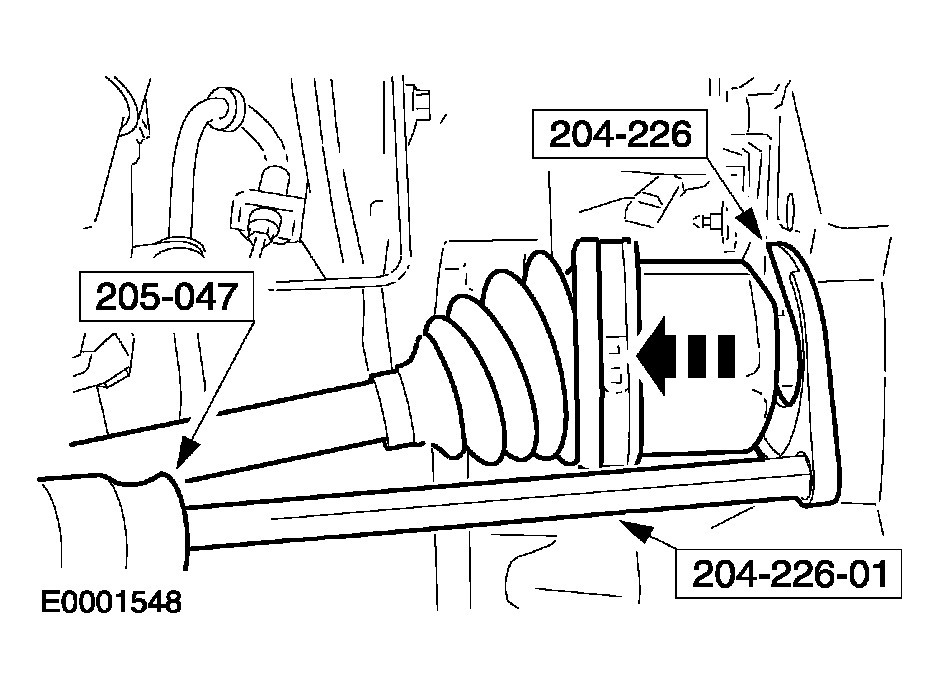

Fig 39: Detaching LH Halfshaft From Transaxle
Courtesy of FORD MOTOR CO.
52. Using the special tools, detach the LH halfshaft from the transaxle and secure it to one side.
    • Allow the oil to drain into a suitable container.
    • Discard the snap ring.
53. Position the assembly table with suitable wooden blocks under the engine and transmission assembly.
54. Carefully lower the vehicle until the engine and transmission assembly is positioned on the assembly stand.
55. Secure the engine and transmission assembly to the assembly stand table with a retaining strap.
    Fig 40: Securing Engine And Transmission Assembly To Assembly Stand Table

    Courtesy of FORD MOTOR CO.

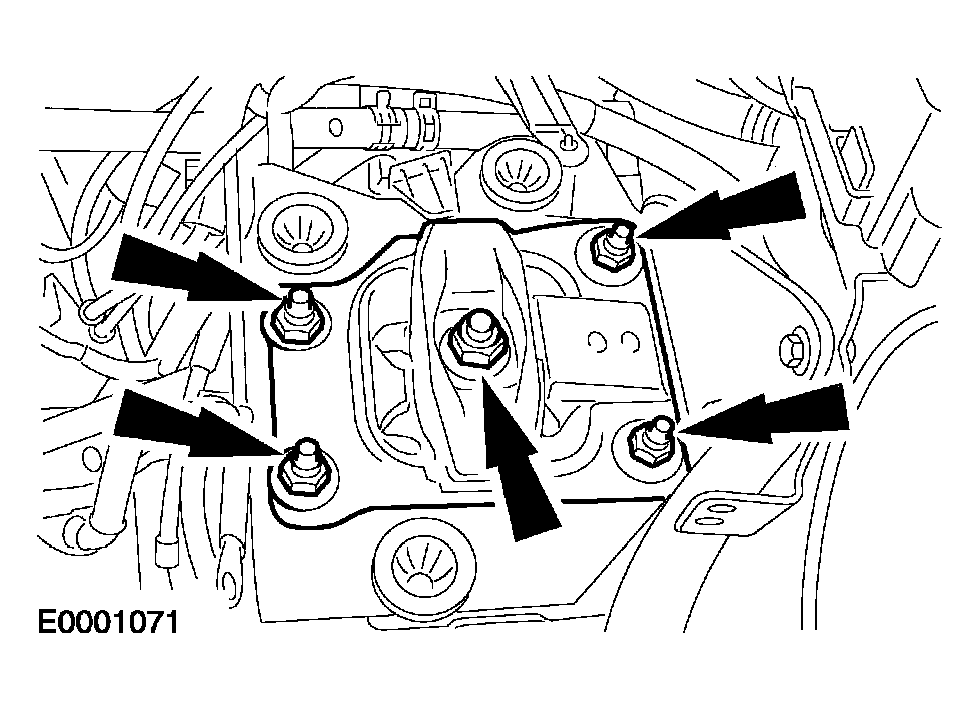

56. Remove the engine rear mount.
    Fig 41: Removing Engine Rear Mount

    Courtesy of FORD MOTOR CO.
57. Remove the engine front mount.
    Fig 42: Removing Engine Front Mount

    Courtesy of FORD MOTOR CO.
58. Carefully raise the vehicle.
    • Pull forward the assembly stand.
59. Using the special tools, secure the engine and transmission assembly on an engine hoist.

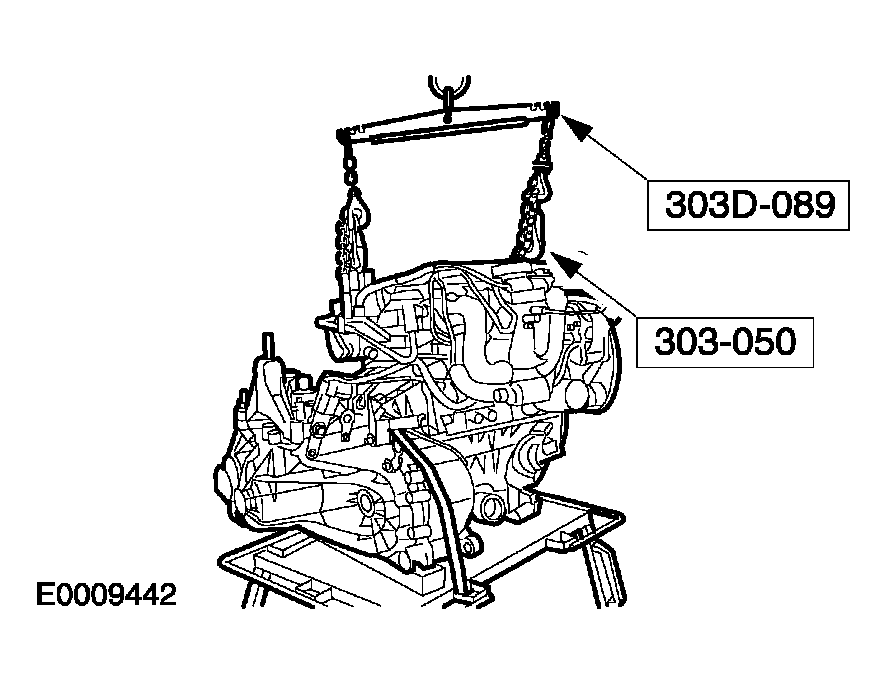

    Fig 43: Securing Engine And Transmission Assembly On An Engine Hoist

    Courtesy of FORD MOTOR CO.
60. Remove the transaxle upper retaining bolts.

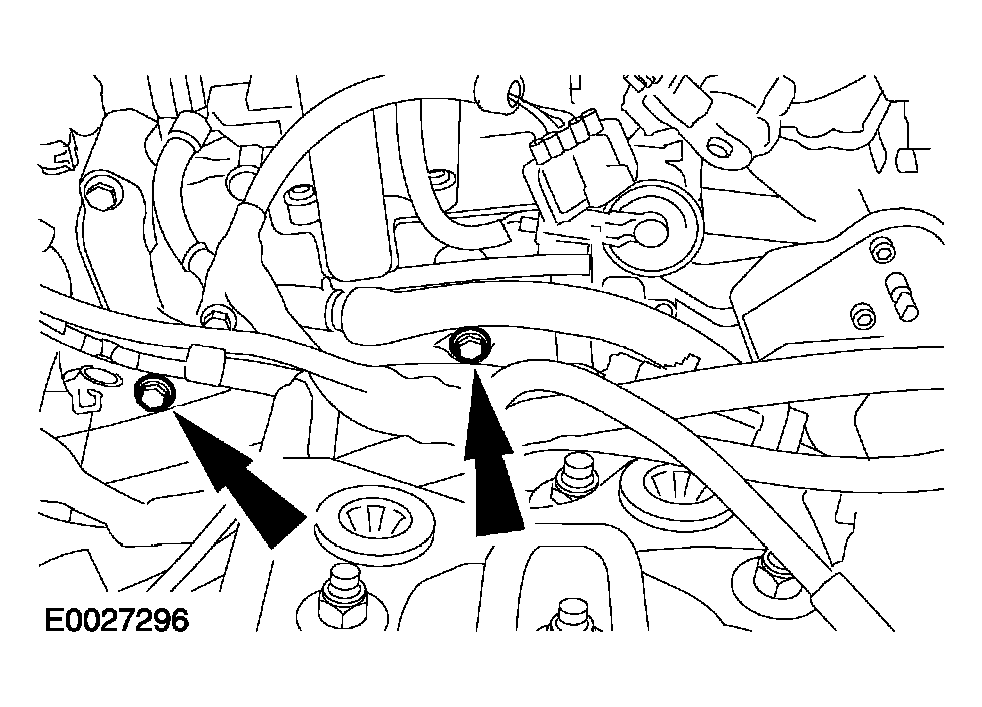

    Fig 44: Removing Transaxle Upper Retaining Bolts

    Courtesy of FORD MOTOR CO.
61. Disconnect the starter motor electrical connectors.
    Fig 45: Disconnecting Starter Motor Electrical Connectors

    Courtesy of FORD MOTOR CO.
62. Remove the starter motor.
    • Detach the ground cable from the transaxle.
    Fig 46: Removing Starter Motor

    Courtesy of FORD MOTOR CO.

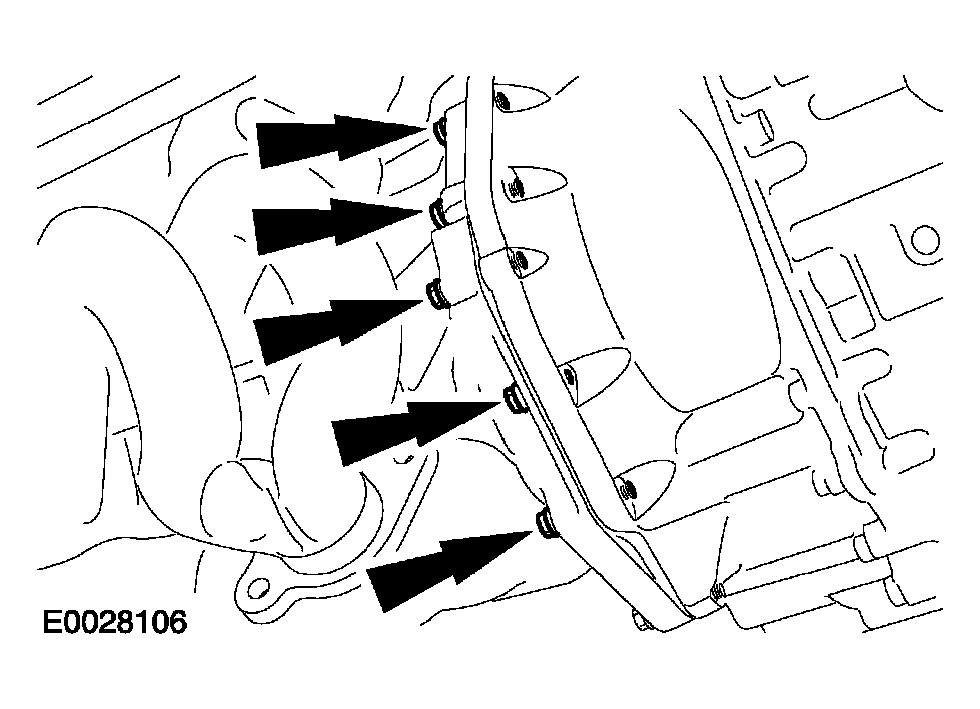

63. Remove the transaxle RH retaining bolts.
    Fig 47: Removing Transaxle RH Retaining Bolts

    Courtesy of FORD MOTOR CO.
64. Remove the transaxle LH retaining bolts.

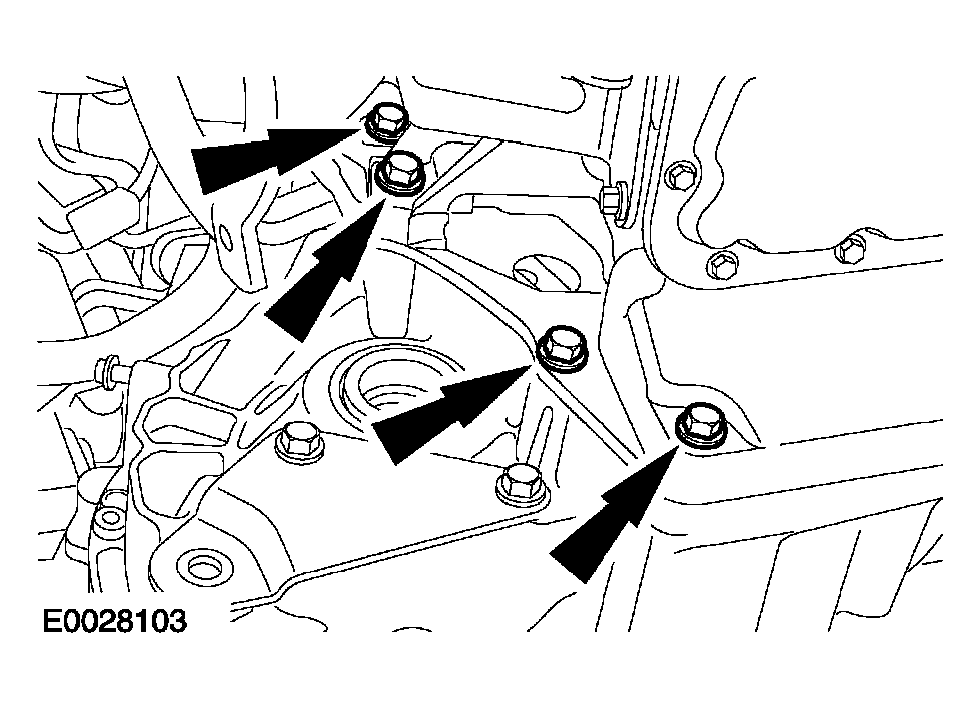

    Fig 48: Removing Transaxle LH Retaining Bolts

    Courtesy of FORD MOTOR CO.
65. Separate the engine from the transaxle.
