Oil Level Indicator and Tube: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
OIL LEVEL INDICATOR AND TUBE MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A
Fig 1: Identifying Components Of Oil Level Indicator And Tube (1 Of 2)
G03996409Courtesy of FORD MOTOR CO.

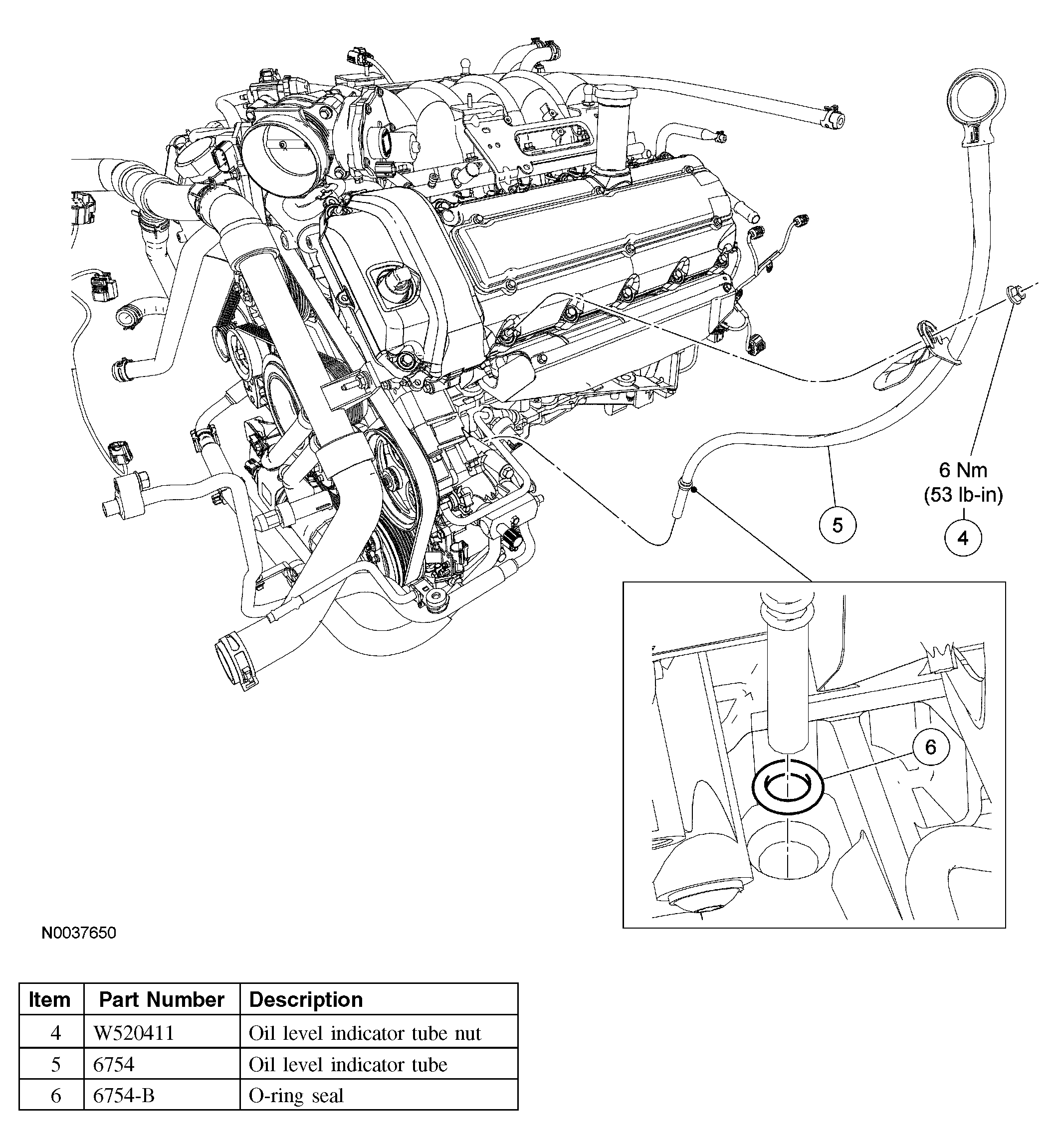

Fig 2: Identifying Components Of Oil Level Indicator And Tube (2 Of 2)
G03996410Courtesy of FORD MOTOR CO.
