Total Backlash Check: Notes
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.
- Raise and support the vehicle. Refer to JACKING & LIFTING .
- Remove the driveshaft. Refer to DRIVESHAFT .
- Install the Drive Pinion Flange Holding Fixture.

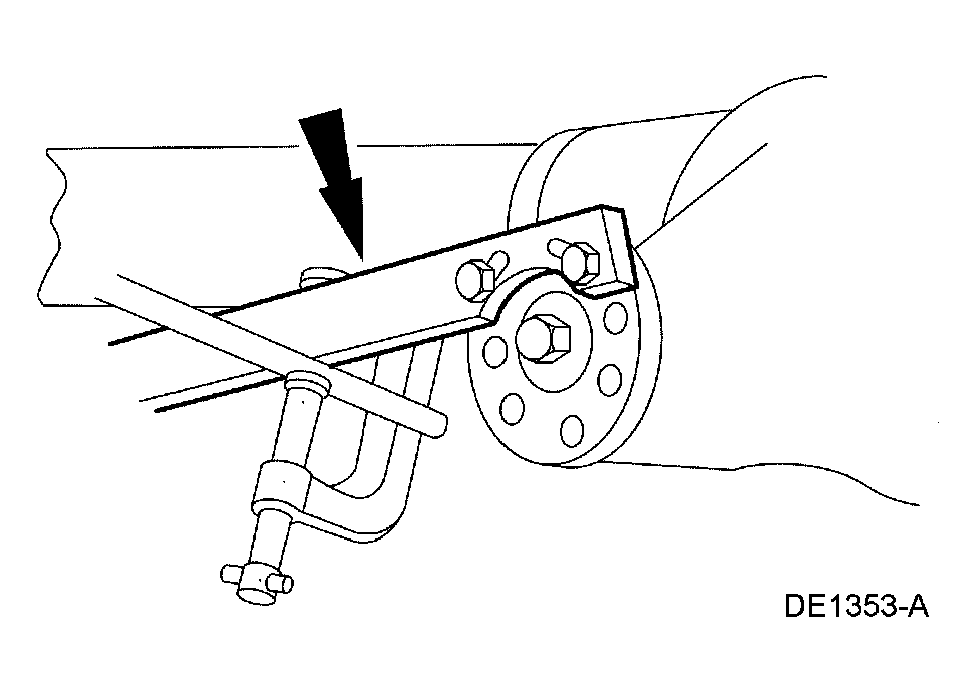

- Clamp a rigid bar or pipe to the tool. Clamp the other end of the bar or pipe to the frame or a body member in order to prevent movement of the rear axle pinion flange.
- Lower the vehicle so that one rear wheel is resting on a wheel chock to prevent it from turning. The other rear wheel will be used to measure total rear axle backlash.
- Rotate the free wheel slowly, by hand, until the feeling of driving the rear axle is encountered. Place a mark on the side of the tire, 305 mm (12 inches) from the center of the wheel, with a crayon or chalk.
- While holding the crayon or chalk against the tire, rotate the wheel slowly in the opposite direction until the feeling of driving the rear axle is encountered again.
- Measure the length of the crayon or chalk mark on the tire.
- If the length of the mark is 25.4 mm (1 inch) or less, the rear axle backlash is within allowable limits.
- If the chalk mark is greater than 25.4 mm (1 inch), check for these conditions:
- Elongation of the differential pinion shaft and holes in the differential case.
- Missing differential pinion thrust washer or differential side gear thrust washer.
- Galling of the differential pinion shaft and bore.
- Excessive ring gear and pinion backlash. Follow the procedure for the type of rear axle to check backlash.
