Extension Housing Gasket: Notes
WARNING:
This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL DESCRIPTION
Item
Specification
MERCON® V Automatic Transmission Fluid
XT-5-QM
MERCON® V

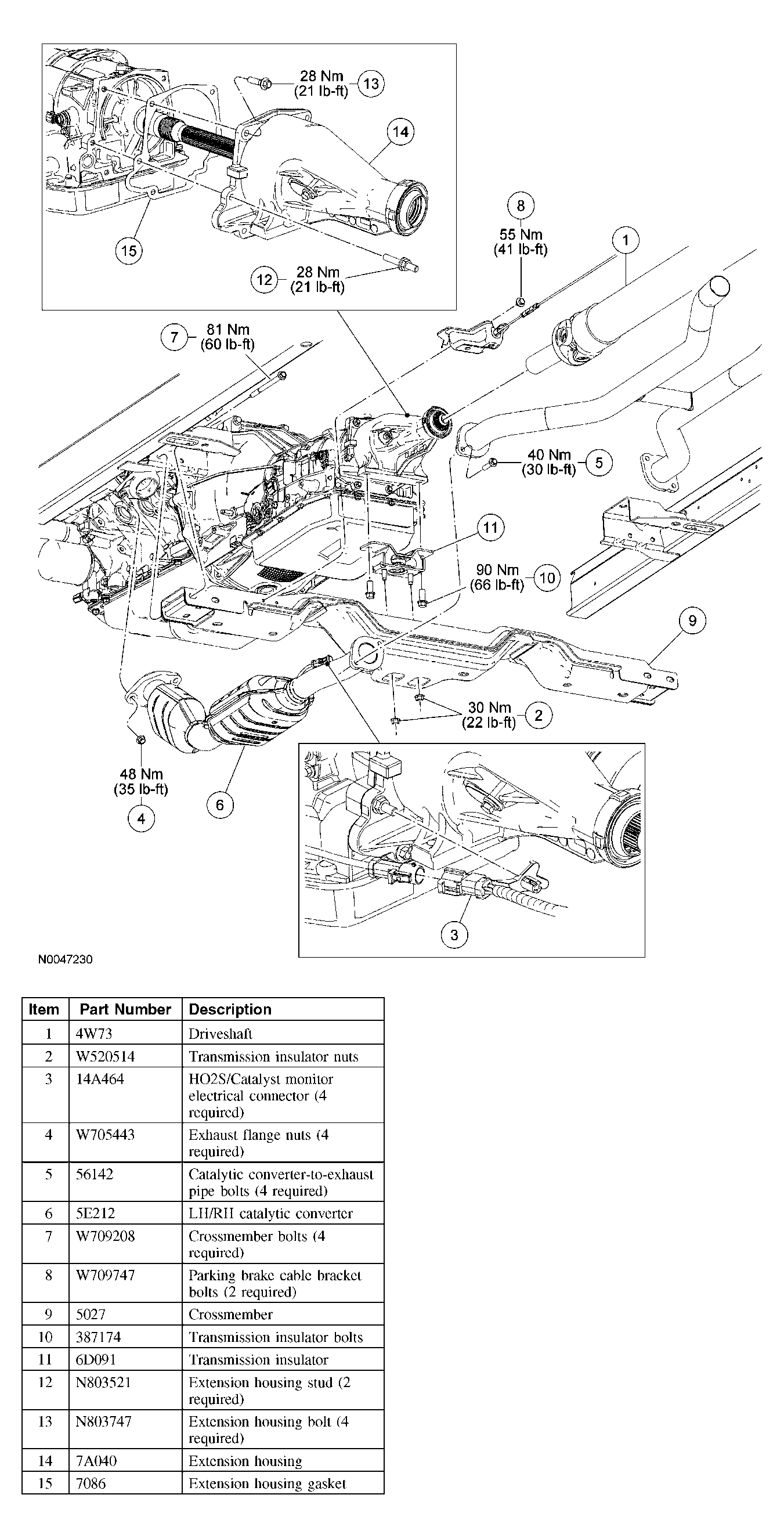

Fig 1: Exploded View Of Extension Housing Gasket
Courtesy of FORD MOTOR CO.
