Anti-Lock Brake System (ABS) Module: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIALS

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

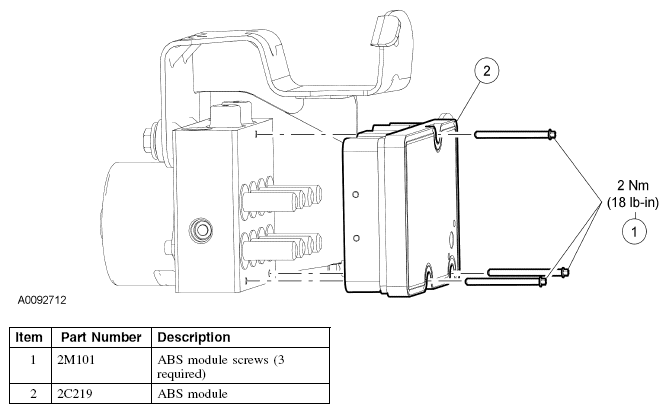

Fig 1: Anti-Lock Brake System (ABS) Module Replacement Components With Torque Specifications
G04617738Courtesy of FORD MOTOR CO.
