Steering Linkage - Exploded View

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

F250, F350, 4x2

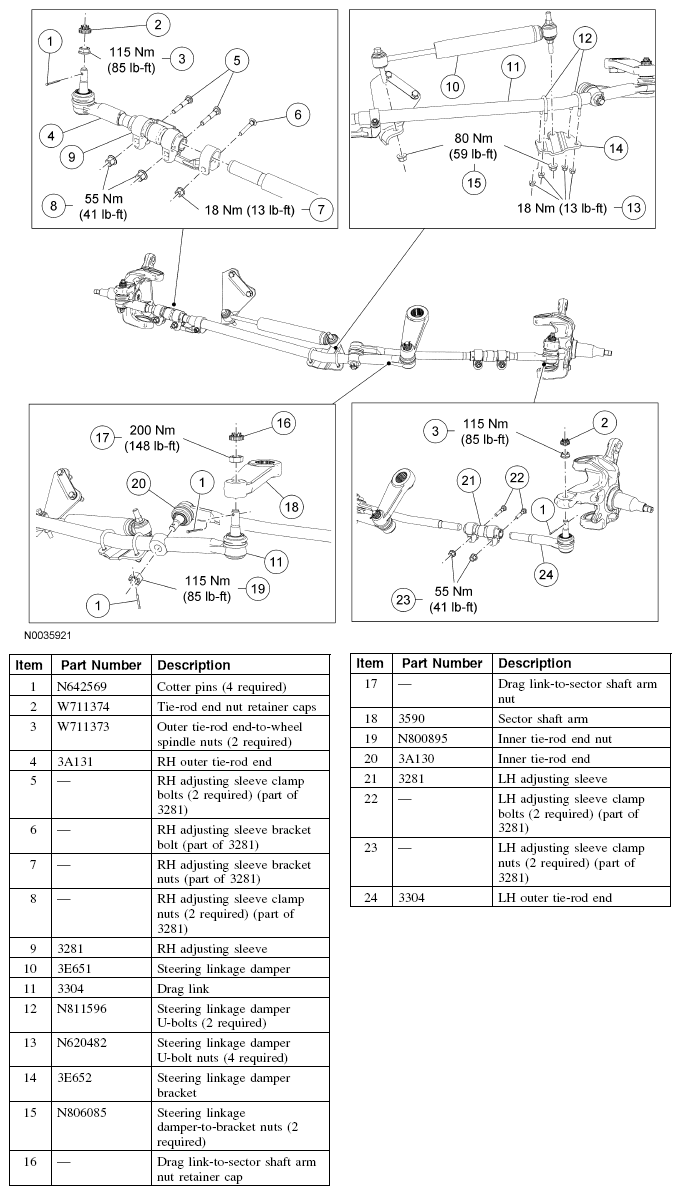

Fig 1: Exploded View Of Steering Linkage - F250-F350 (4x2)
G04644674Courtesy of FORD MOTOR CO.

F250, F350, - 4x4 and F450-F550

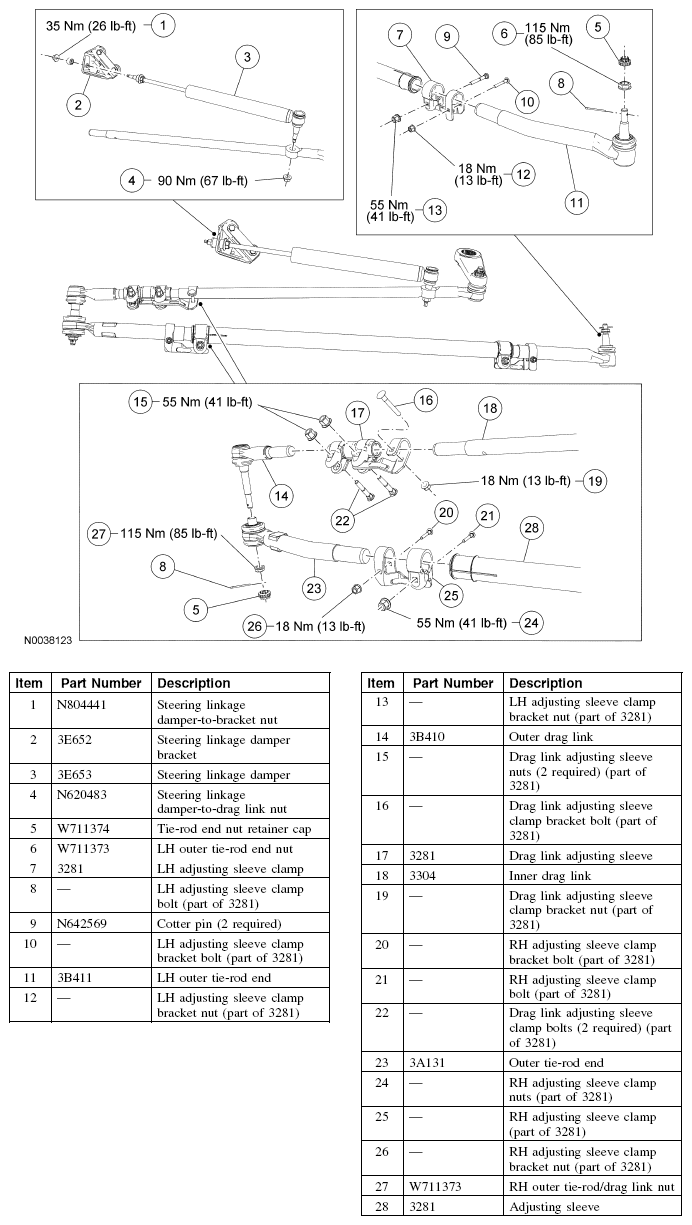

Fig 2: Exploded View Of Steering Linkage - F250-F350 (4x4) & F450-F550
G04644675Courtesy of FORD MOTOR CO.
