Occupant Classification Sensor - Service Kit: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S) TABLE

Courtesy of FORD MOTOR CO.

Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

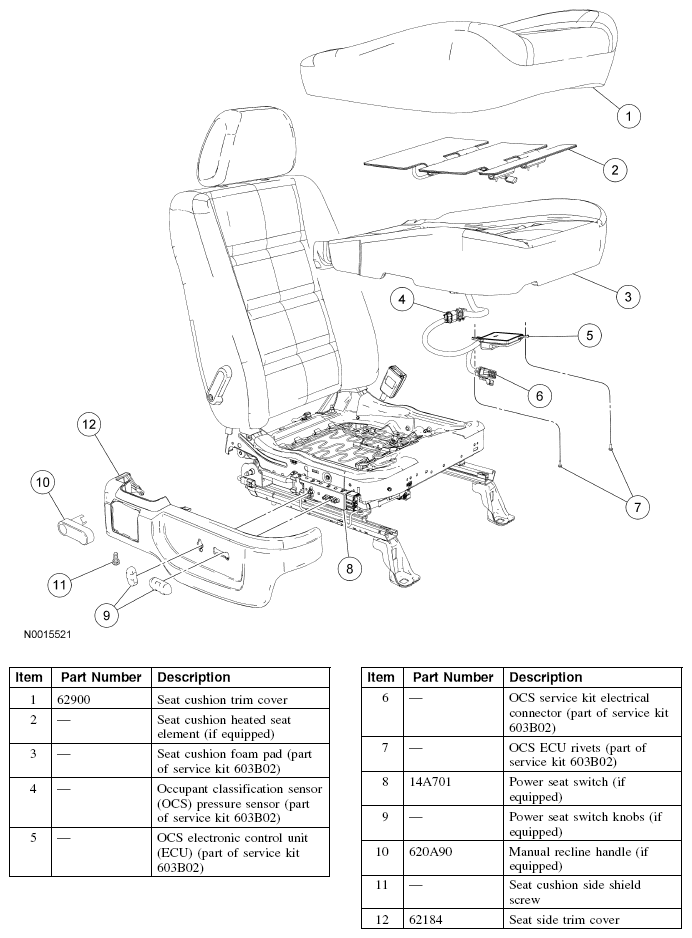

Fig 1: Identifying Occupant Classification Sensor Components - Service Kit

Courtesy of FORD MOTOR CO.
