Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

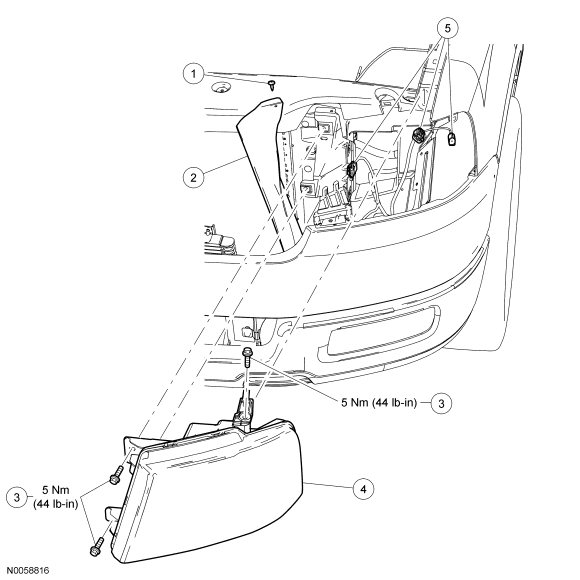

LH side shown, RH side similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W706350 |
Pin-type retainer |
| 2 |
8A261 |
Radiator side air deflector |
| 3 |
W702434 |
Headlamp bolts (3 required) |
| 4 |
13008 |
Headlamp assembly |
| 5 |
- |
Electrical connectors (part of 12A581) |
