Subwoofer Amplifier: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

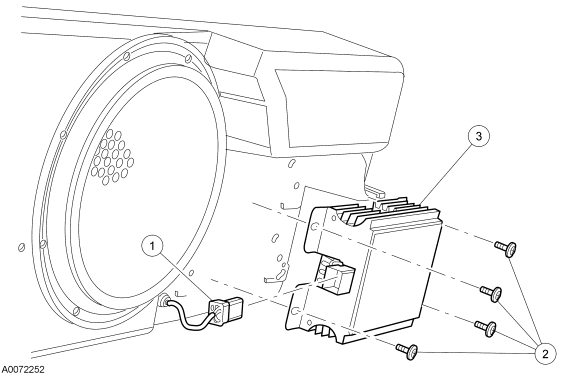

Fig 1: Identifying Subwoofer Amplifier
GF0004574Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Subwoofer amplifier electrical connector
2 MA147A10 Subwoofer amplifier screws (4 required)
3 18C808 Subwoofer amplifier
