Occupant Classification Sensor - Service Kit: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |

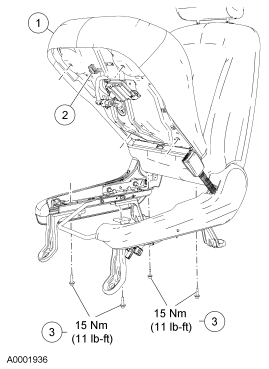

Fig 1: Exploded View Of Occupant Classification Sensor - Service Kit - (1 Of 2) With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat cushion assembly |
| 2 | - | Electrical connectors (part of 603B02) |
| 3 | - | Seat cushion bolts |
Fig 2: Exploded View Of Occupant Classification Sensor - Service Kit - (2 Of 2) With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 4 | 62900 | Seat cushion trim cover |
| 5 | 603B02 | Occupant classification sensor (OCS) assembly |
| 6 | - | Seat cushion pan |
| 7 | - | Pressure sensor (part of 603B02) |
| 8 | - | OCS electronic control unit (ECU) (part of 603B02) |
| 9 | 391950 | OCS ECU rivets (2 required) (part of 603B02) |
