Restraints Control Module (RCM): Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

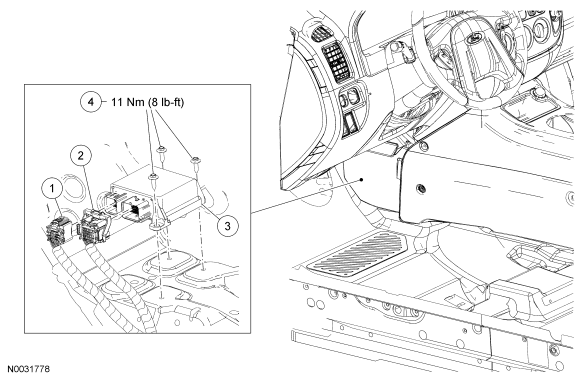

| Item |
Part Number |
Description |
| 1 |
- |
Small restraints control module (RCM) electrical wiring connector (part of 14401) |
| 2 |
- |
Large RCM electrical wiring connector (part of 14405) |
| 3 |
14B321 |
RCM |
| 4 |
W709970 |
Bolts (3 required) |
