Hydraulic Control Unit (HCU): Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

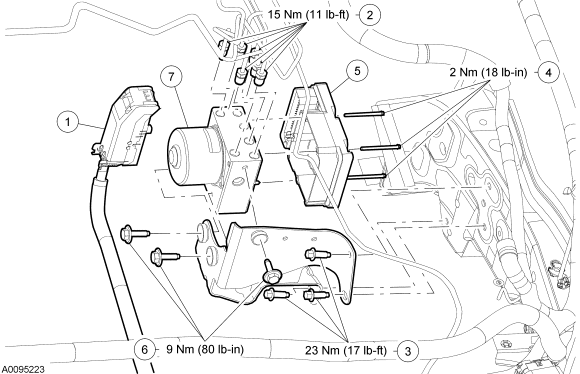

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Harness connector (part of 14398) |
| 2 | 2C296 | Brake tube-to-hydraulic control unit (HCU) fittings |
| 3 | W706922 | HCU bracket-to-frame bolts (3 required) |
| 4 | 2M101 | Anti-lock brake system (ABS) module screws (3 required) |
| 5 | 2C219 | ABS module |
| 6 | W706922 | Bracket-to-HCU bolts (3 required) |
| 7 | 2C286 | HCU |
