Spring Lock Coupling: Connect

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

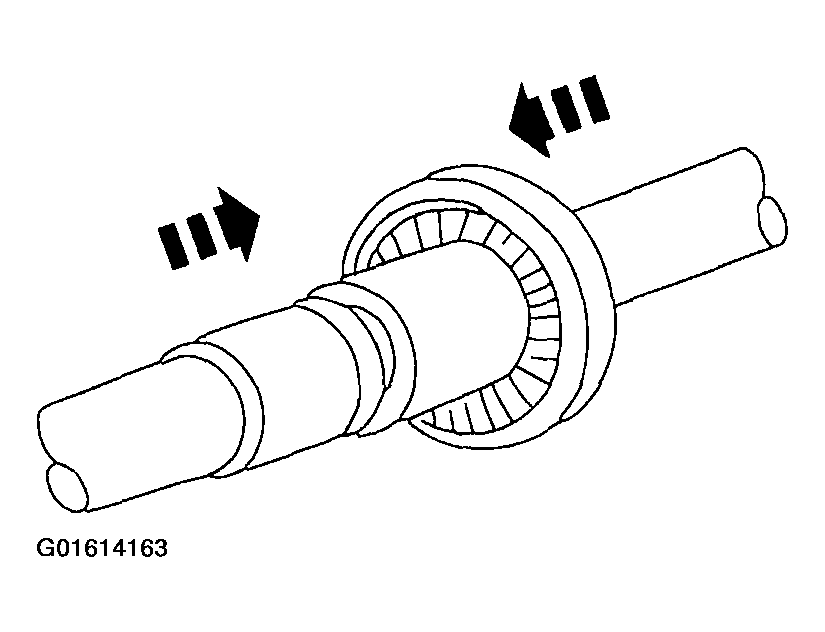

Install the spring lock coupling spring.

Fig 1: Installing Spring Lock Coupling Spring
Courtesy of FORD MOTOR CO.

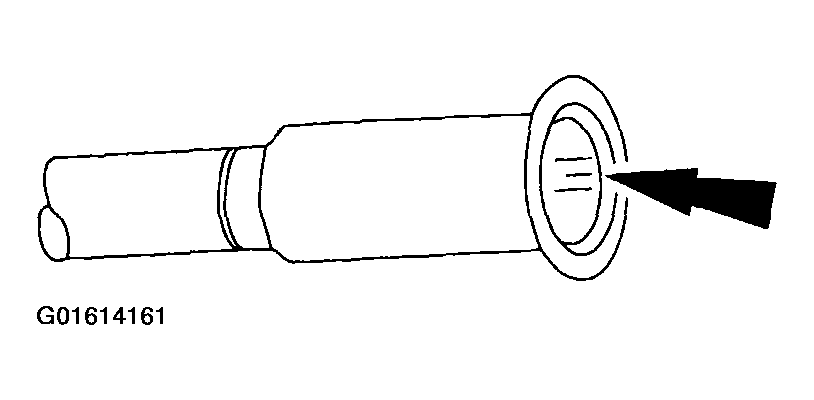

Lubricate the inside of the coupling with PAG oil.

Fig 2: Lubricating Inside Of Coupling With PAG Oil
Courtesy of FORD MOTOR CO.

CAUTION: Use only the new O-ring seals. The use of any O-ring seals other than those specified in the Ford Master Parts Catalog may result in intermittent leakage during vehicle operation.

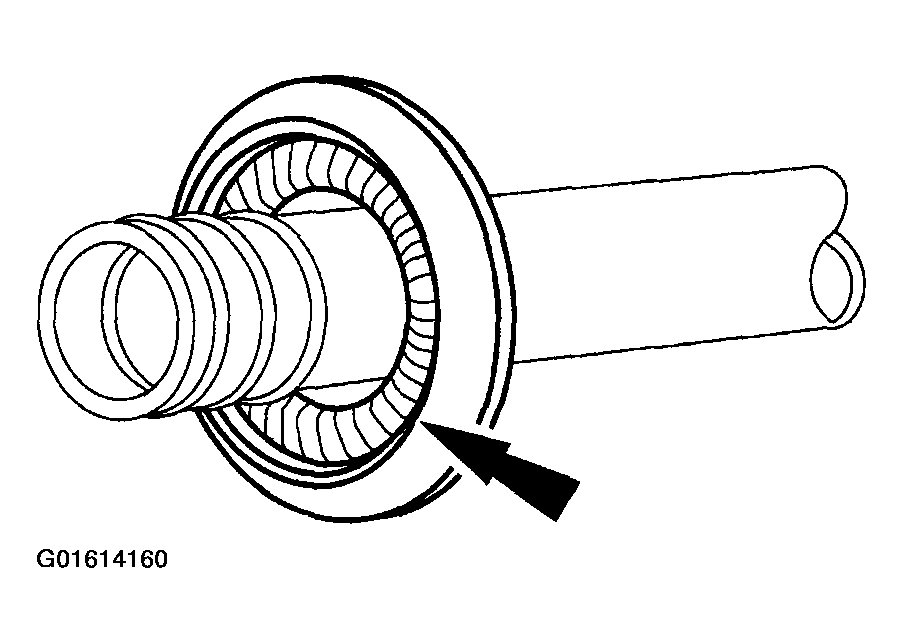

Install the O-ring seals.
- Lubricate the O-ring seals with PAG oil.

  Fig 3: Lubricating O-Ring Seals With PAG Oil
  Courtesy of FORD MOTOR CO.

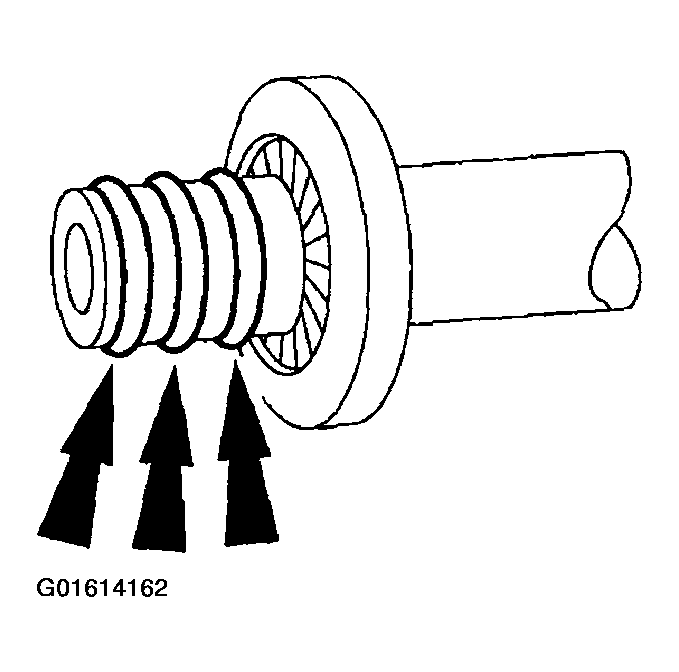

Connect the spring lock coupling fittings with a twisting motion until the spring lock coupling spring snaps over the flared end of the female fitting.

Fig 4: Connecting Spring Lock Coupling Fittings
Courtesy of FORD MOTOR CO.
Install the spring lock coupling clip.
