Steering Column: Disassembly

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

ALL VEHICLES

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the steering column removal and installation procedure.

Remove the steering column. For additional information, refer to Column .
Remove the steering wheel. For additional information, refer to Wheel .
Remove the clockspring. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

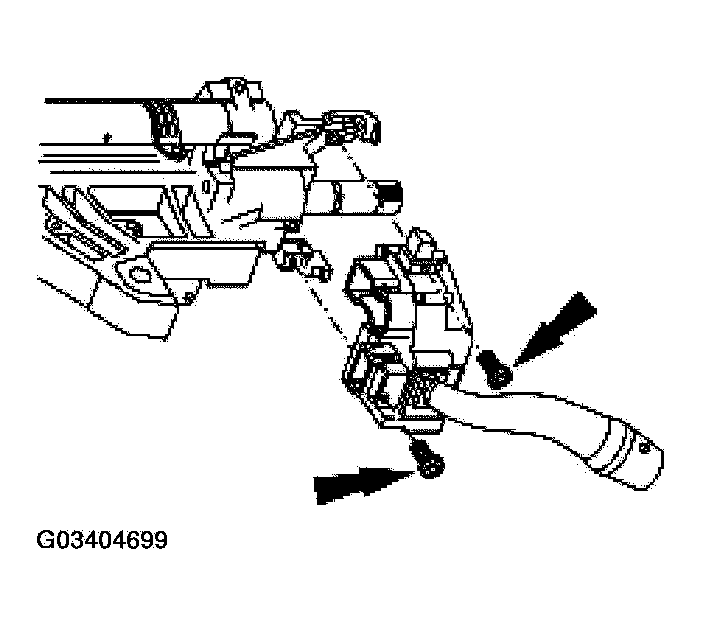

Remove the 2 screws and the multifunction switch.

Fig 1: Removing Multifunction Switch
Courtesy of FORD MOTOR CO.

CAUTION: Carefully note the position of the steering column lock gear, bearing and retainer prior to removal.

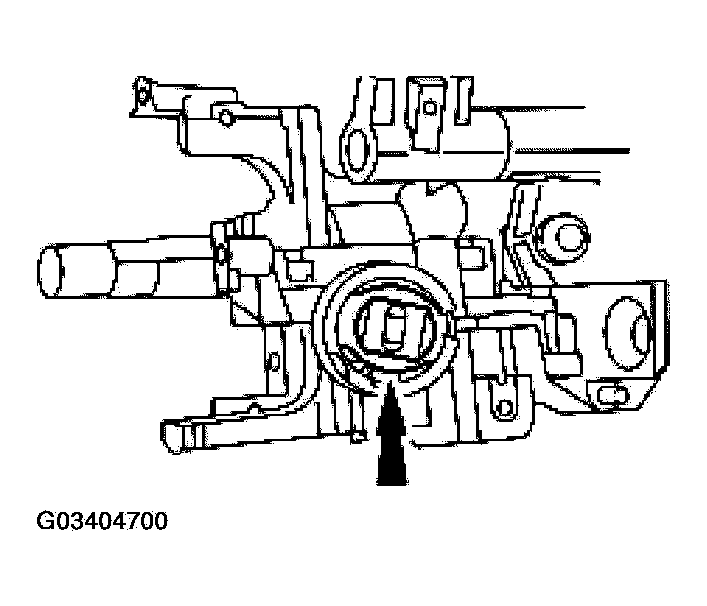

Fig 2: Removing Bearing Retainer

G03404700

Courtesy of FORD MOTOR CO.

Remove the bearing retainer.
Remove the steering column lock housing bearing.

Fig 3: Removing Steering Column Lock Housing Bearing
Courtesy of FORD MOTOR CO.

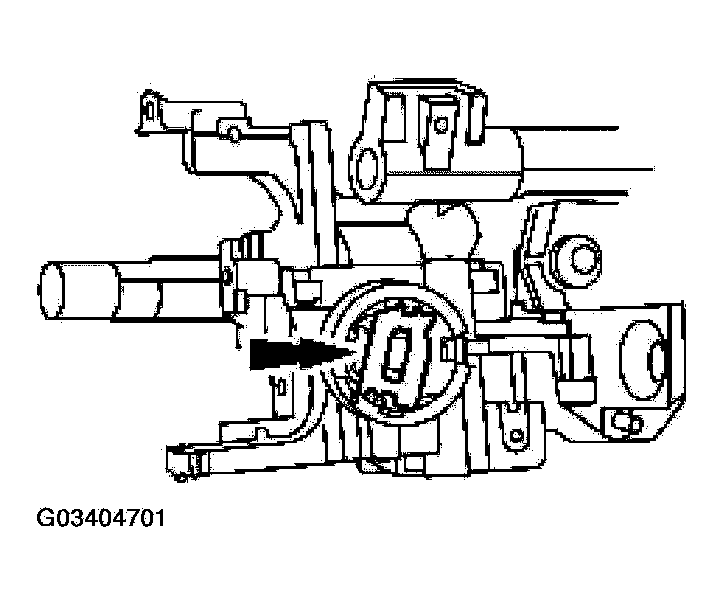

Remove the steering column lock gear.

Fig 4: Removing Steering Column Lock Gear
Courtesy of FORD MOTOR CO.

VEHICLES WITH TILT COLUMN
Remove the electronic steering sensor.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the electronic steering sensor.

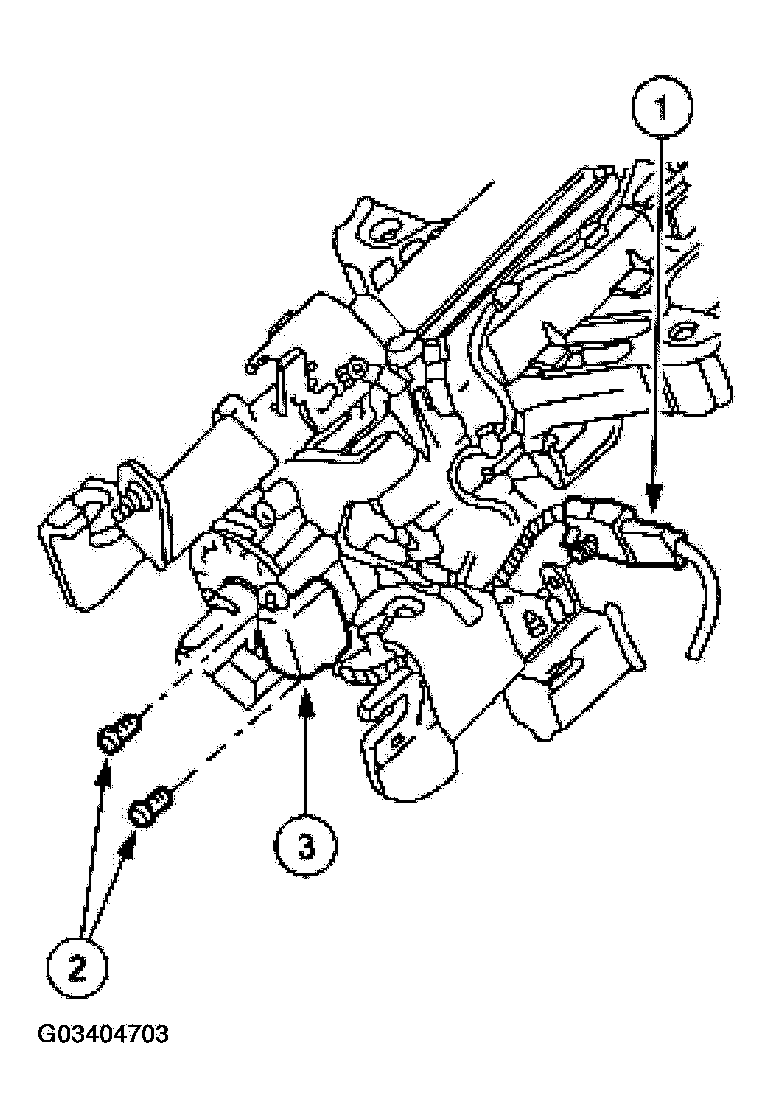

  Fig 5: Removing Electronic Steering Sensor
  Courtesy of FORD MOTOR CO.

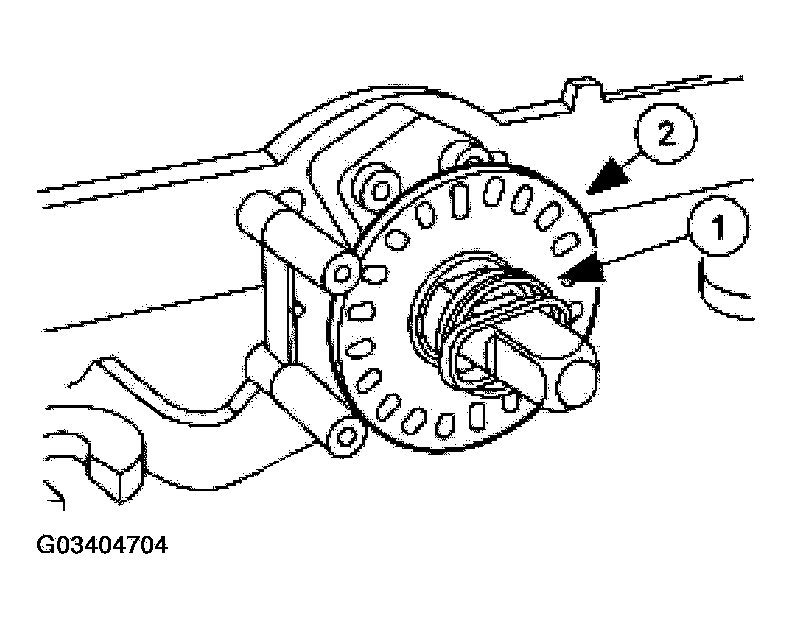

Remove the sensor ring.
1. Remove the steering column lower bearing spring.
2. Remove the sensor ring.

  Fig 6: Removing Sensor Ring
  Courtesy of FORD MOTOR CO.

  VEHICLES WITH FIXED COLUMN

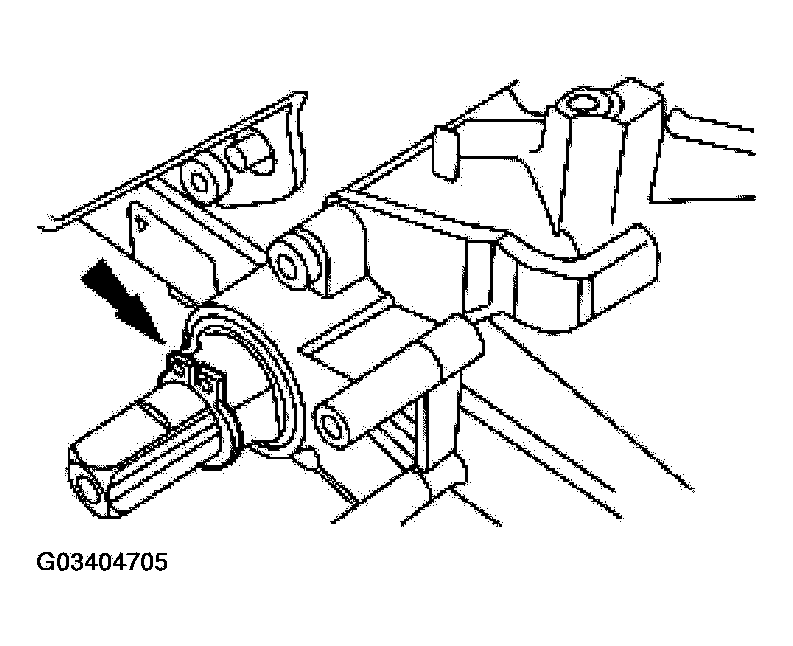

Remove the snap ring from the bottom of the steering column shaft.

Fig 7: Removing Snap Ring From Bottom Of Steering Column Shaft
Courtesy of FORD MOTOR CO.

ALL VEHICLES

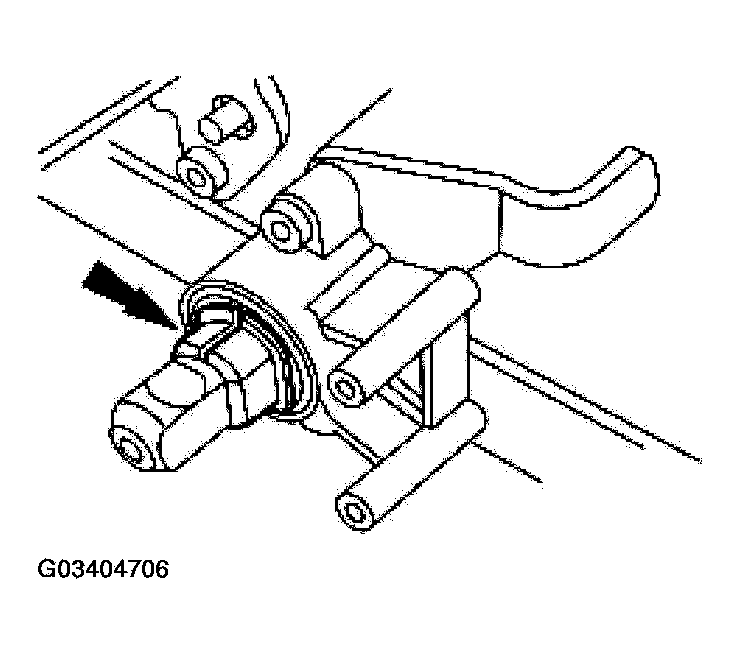

Remove the steering column bearing tolerance ring from the steering column shaft.

Fig 8: Removing Steering Column Bearing Tolerance Ring
Courtesy of FORD MOTOR CO.

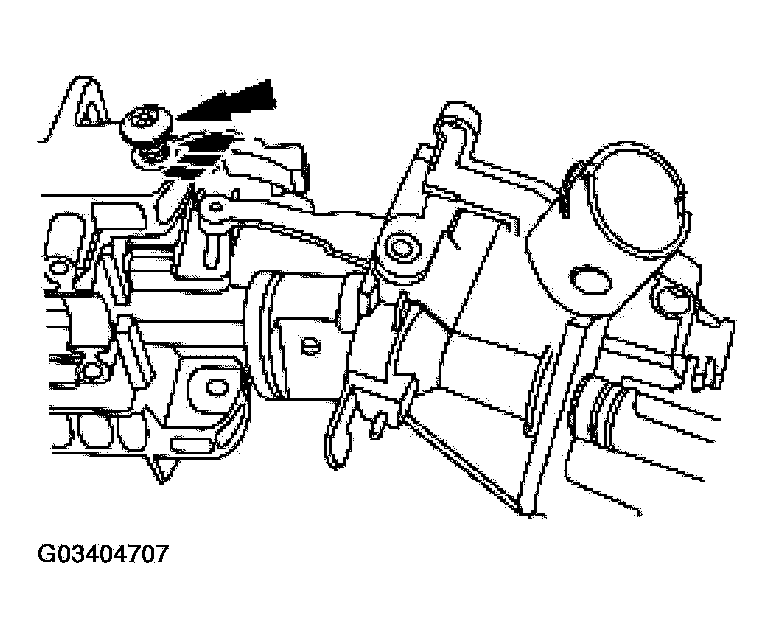

Remove the two lock cylinder housing pivot screws.

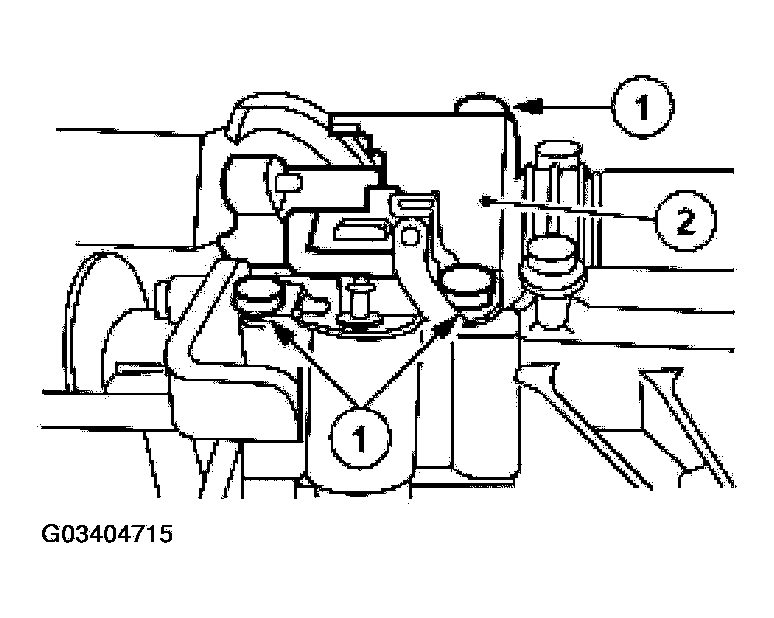

Fig 9: Removing Two Lock Cylinder Housing Pivot Screws
Courtesy of FORD MOTOR CO.

WARNING: The steering column position spring is under tension and may come out with great force.

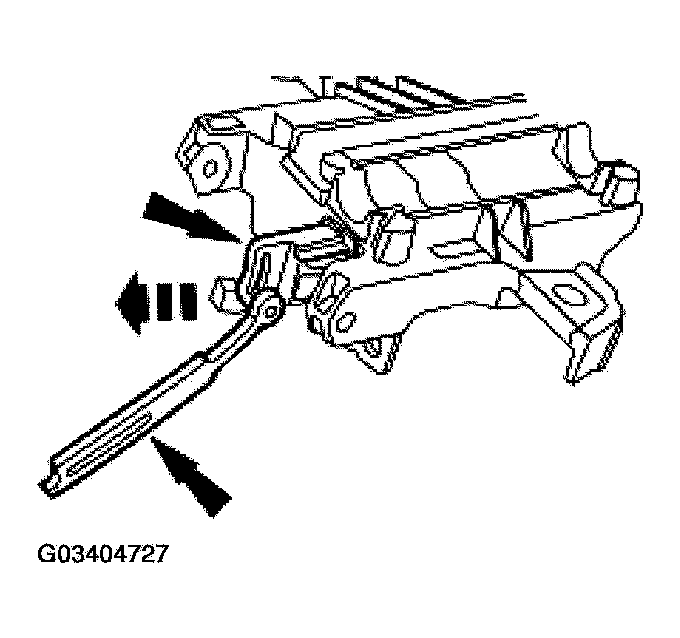

Remove the steering column lock cylinder housing and the steering column shaft from the steering actuator housing.
1. Pry up on the steering column locking levers using a shop-fabricated tool.
2. On tilt steering columns, remove the steering column position spring.

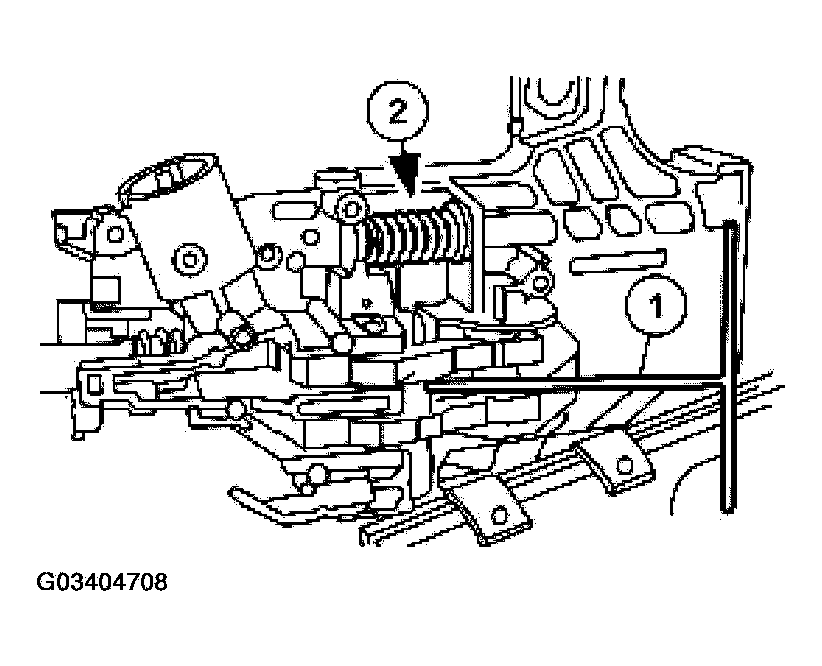

  Fig 10: Removing Steering Column Lock Cylinder Housing And The Steering Column Shaft
  Courtesy of FORD MOTOR CO.
Remove the snap ring.

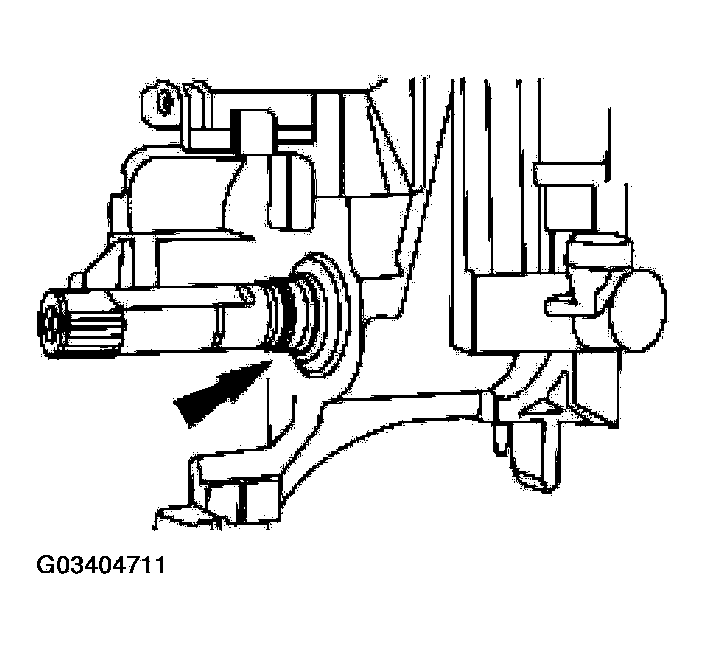

Fig 11: Removing Snap Ring
Courtesy of FORD MOTOR CO.

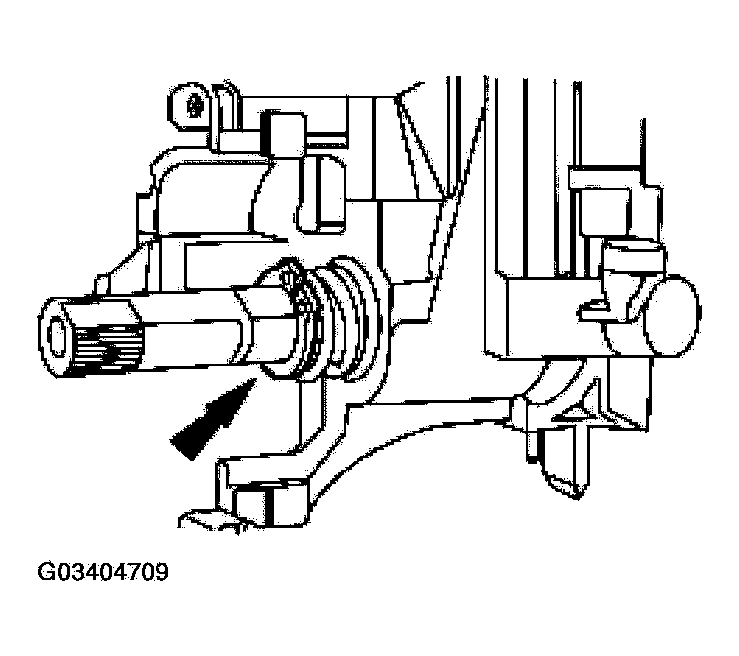

Remove the steering column upper bearing spring.

Fig 12: Removing Steering Column Upper Bearing Spring
Courtesy of FORD MOTOR CO.

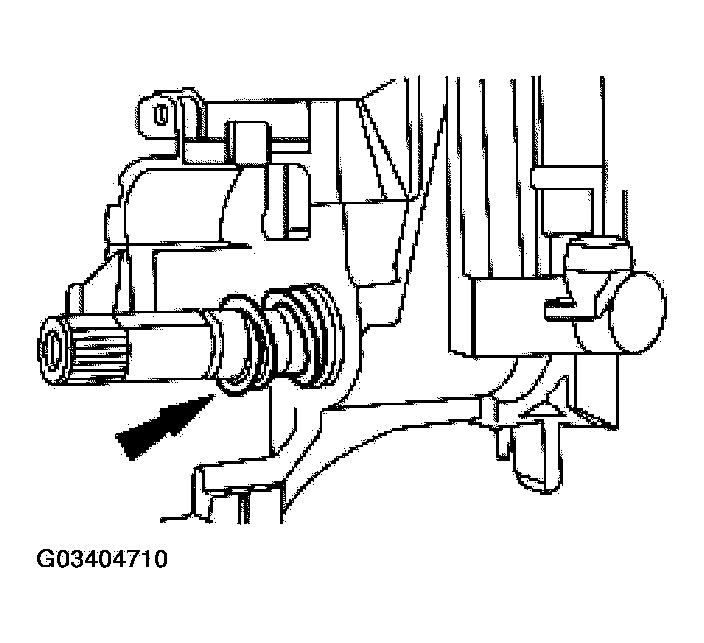

Remove the steering column bearing sleeve.

Fig 13: Removing Steering Column Bearing Sleeve
Courtesy of FORD MOTOR CO.
Remove the steering column bearing tolerance ring.
1. Slide the steering column shaft in toward the steering column lock cylinder housing, then out.
2. Slide the steering column bearing tolerance ring off the steering column shaft.

  Fig 14: Removing Steering Column Bearing Tolerance Ring
  Courtesy of FORD MOTOR CO.

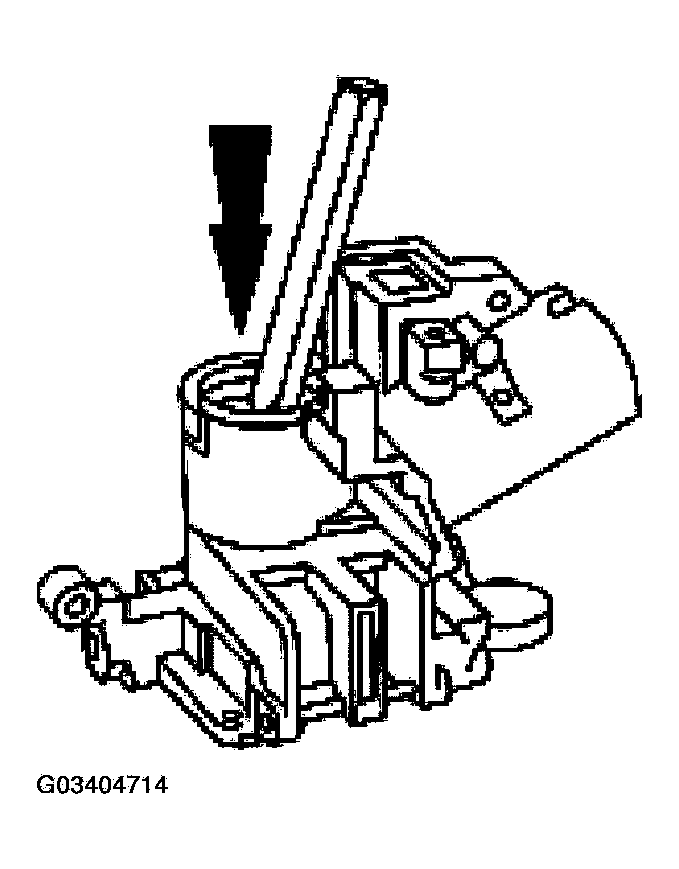

Using a suitable punch, remove the steering column bearing from the steering column lock cylinder housing.

Fig 15: Removing Steering Column Bearing From Steering Column Lock Cylinder Housing
Courtesy of FORD MOTOR CO.

VEHICLES WITH TILT COLUMN

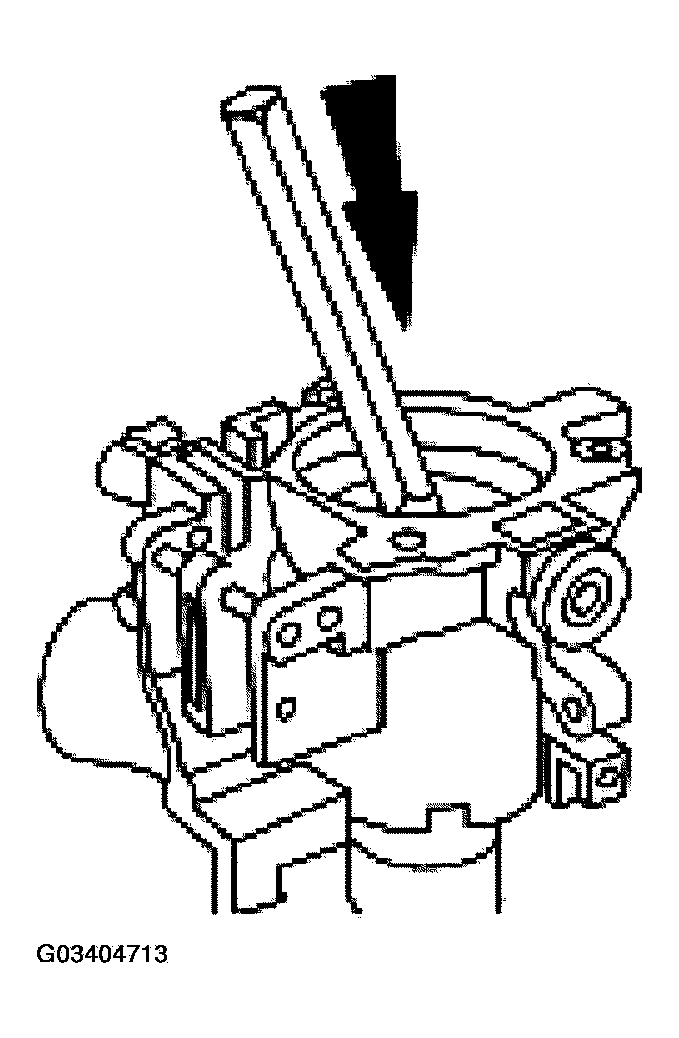

Use a suitable punch to remove the steering column bearing from the steering column lock cylinder housing.

Fig 16: Removing Steering Column Bearing From Steering Column Lock Cylinder Housing
Courtesy of FORD MOTOR CO.

ALL VEHICLES

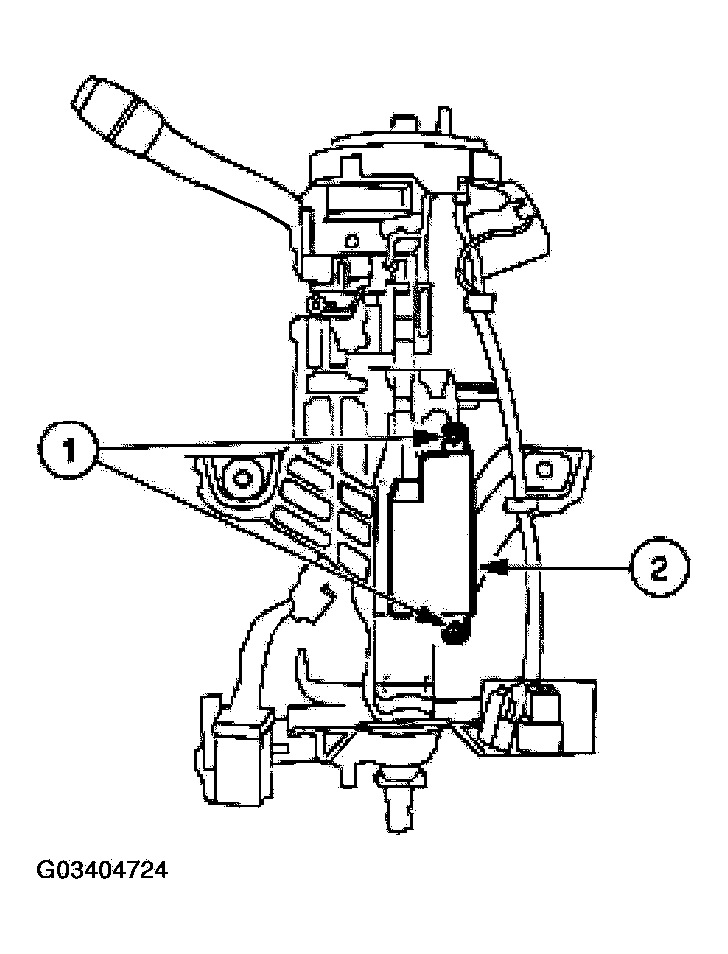

Remove the brake shift interlock solenoid.
1. Remove the three bolts.
2. Remove the brake shift interlock solenoid.

  Fig 17: Removing Brake Shift Interlock Solenoid
  Courtesy of FORD MOTOR CO.
Remove the shift tube.
1. Remove the four bolts.
2. Remove the two shift tube clamps.
3. Remove the shift tube.

  Fig 18: Removing Shift Tube
  Courtesy of FORD MOTOR CO.

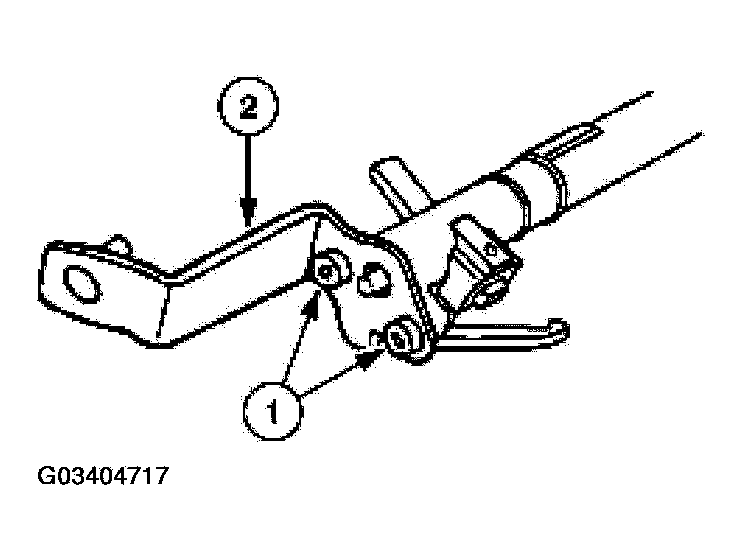

Remove the transmission selector lever arm and support.
1. Remove the two bolts.
2. Remove the transmission selector lever arm and support.

  Fig 19: Removing Transmission Selector Lever Arm And Support
  Courtesy of FORD MOTOR CO.

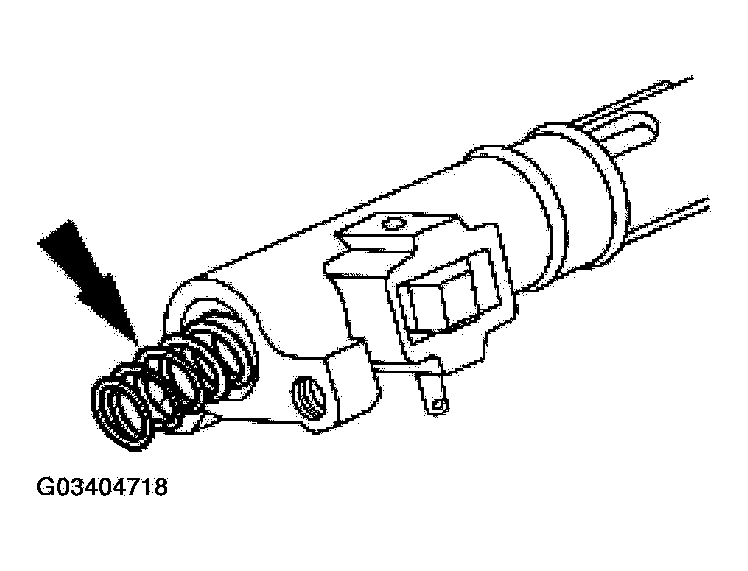

Remove the gearshift selector tube spring.

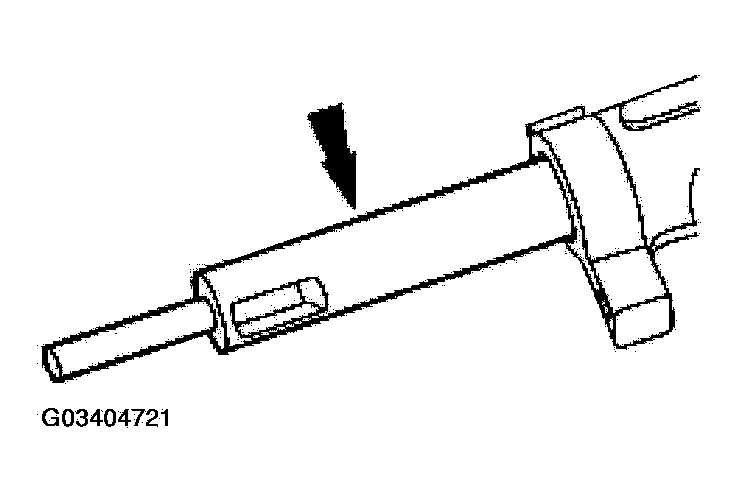

Fig 20: Removing Gearshift Selector Tube Spring
Courtesy of FORD MOTOR CO.
Drive out the gearshift lever pin from the shift tube.

Fig 21: Removing Gearshift Lever Pin From Shift Tube
Courtesy of FORD MOTOR CO.
Remove the gearshift lever.

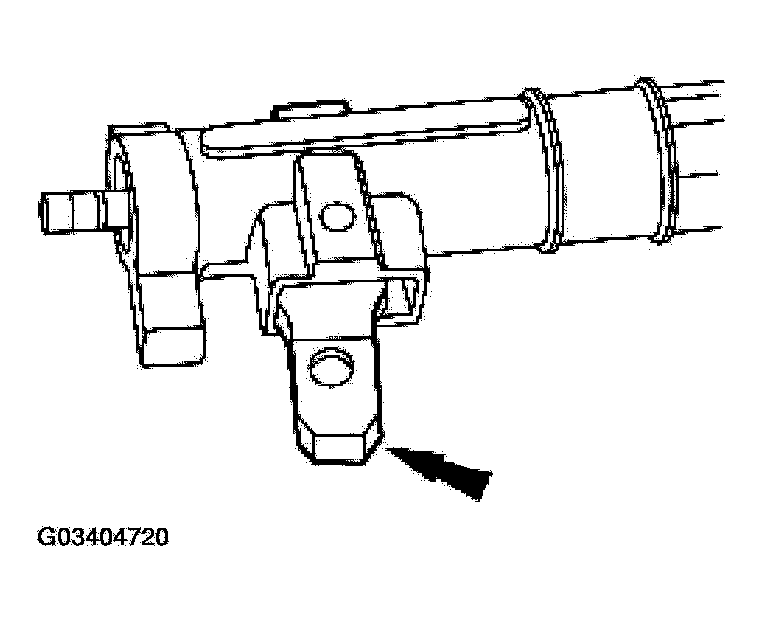

Fig 22: Removing Gearshift Lever
Courtesy of FORD MOTOR CO.

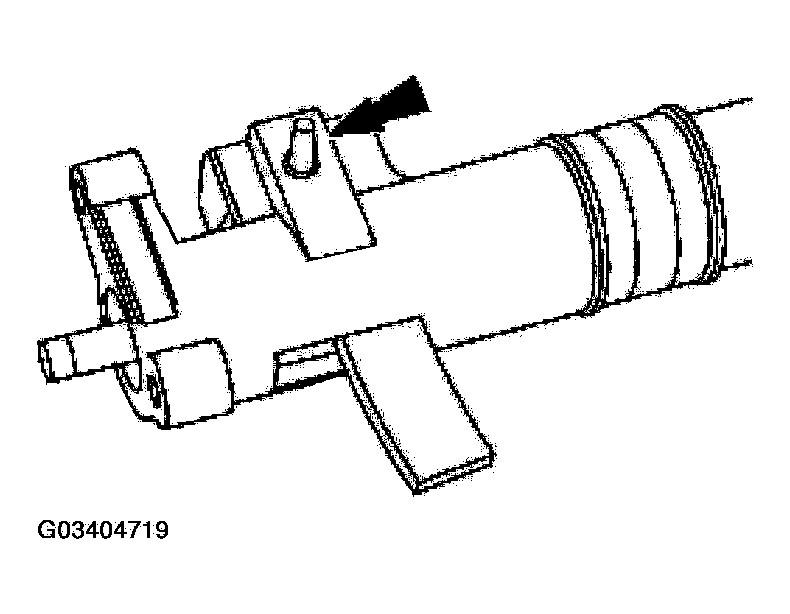

Remove the column shift selector lever plunger.
- If it is bent, replace the column shift selector lever plunger.

  Fig 23: Removing Column Shift Selector Lever Plunger
  Courtesy of FORD MOTOR CO.
Remove the two gearshift lever socket bushings and the transmission control selector lever spring clip.

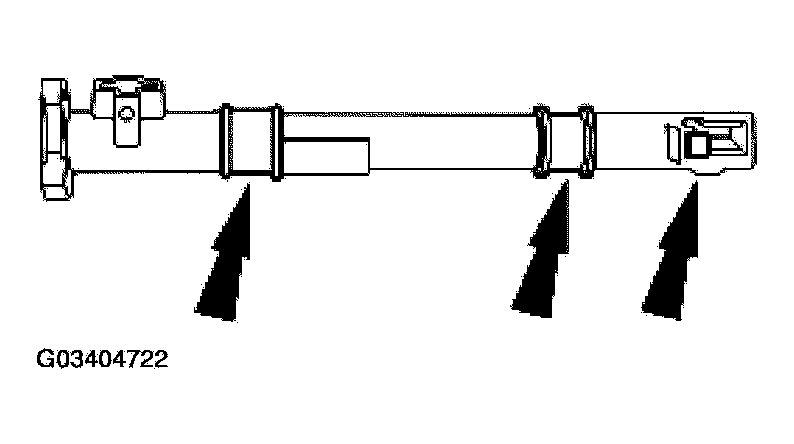

Fig 24: Removing Two Gearshift Lever Socket Bushings
Courtesy of FORD MOTOR CO.

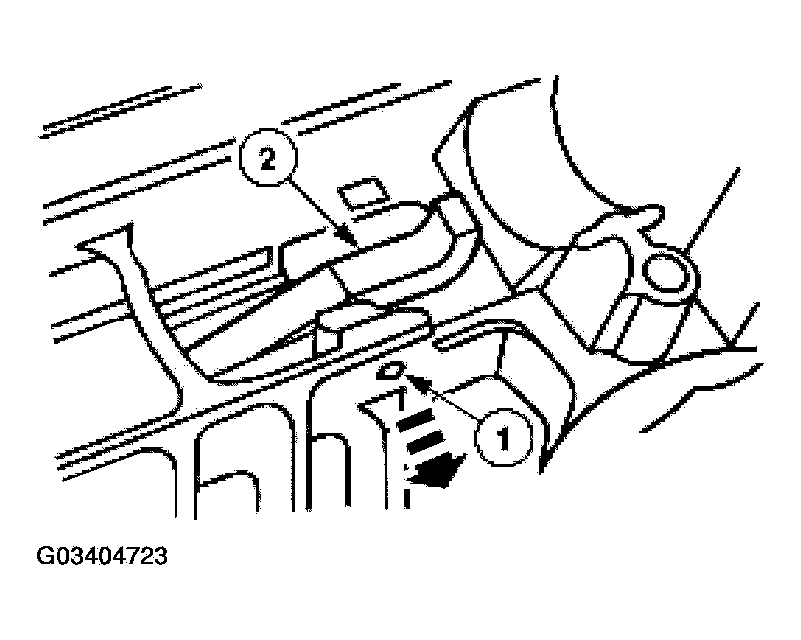

Remove the steering column lock pawl.
1. Drive out the steering column lock lever pin.
2. Remove the steering column lock pawl.

  Fig 25: Removing Steering Column Lock Pawl
  Courtesy of FORD MOTOR CO.
Remove the ignition switch.
1. Remove the bolts.
2. Remove the ignition switch.

  Fig 26: Removing Ignition Switch
  Courtesy of FORD MOTOR CO.
Remove the lower steering column bearing and sleeve.

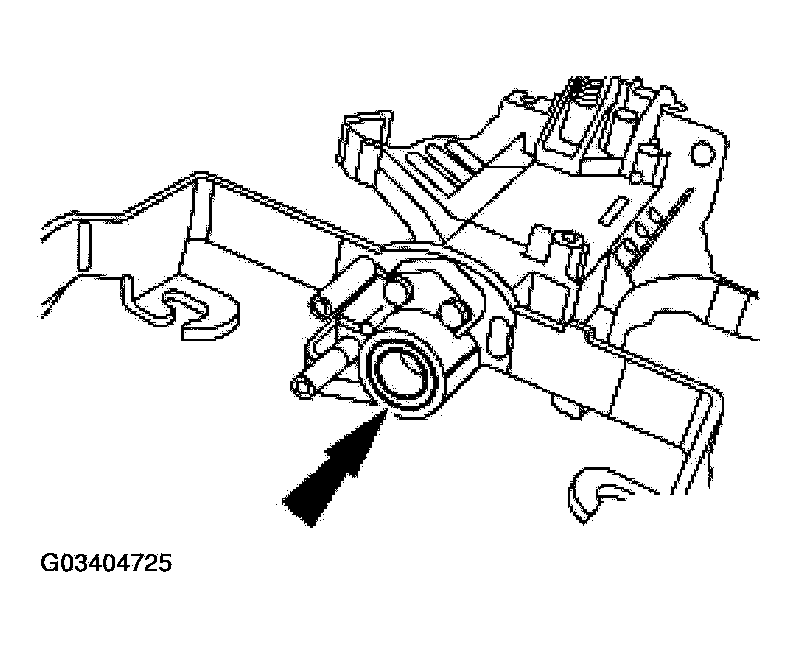

Fig 27: Removing Lower Steering Column Bearing And Sleeve
Courtesy of FORD MOTOR CO.

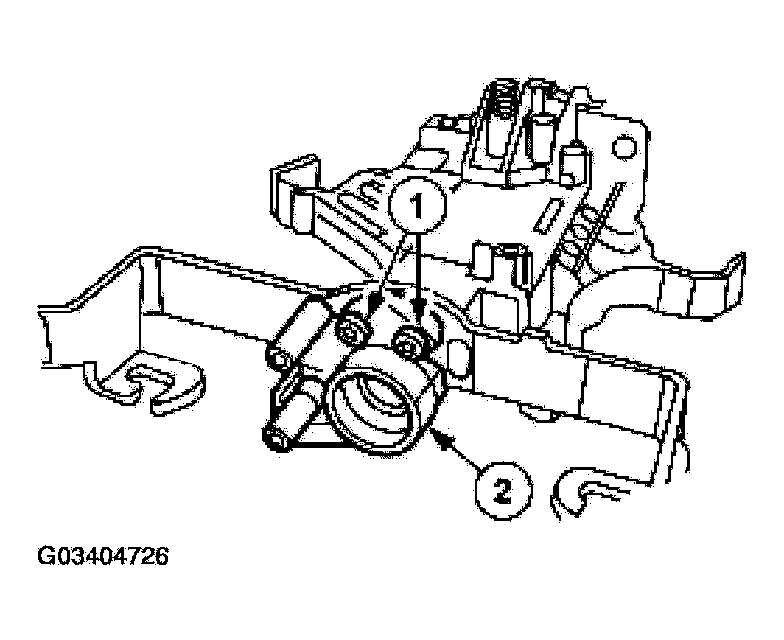

Remove the steering column lower bearing retainer.
1. Remove the three bolts.
2. Remove the steering column lower bearing retainer.

  Fig 28: Removing Steering Column Lower Bearing Retainer
  Courtesy of FORD MOTOR CO.
Remove the upper steering column lock actuator and the lower steering column lock actuator.

Fig 29: Removing Upper & Lower Steering Column Lock Actuator
Courtesy of FORD MOTOR CO.
