Valve - Spring Squareness
WARNING: This page is about a different car, the 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

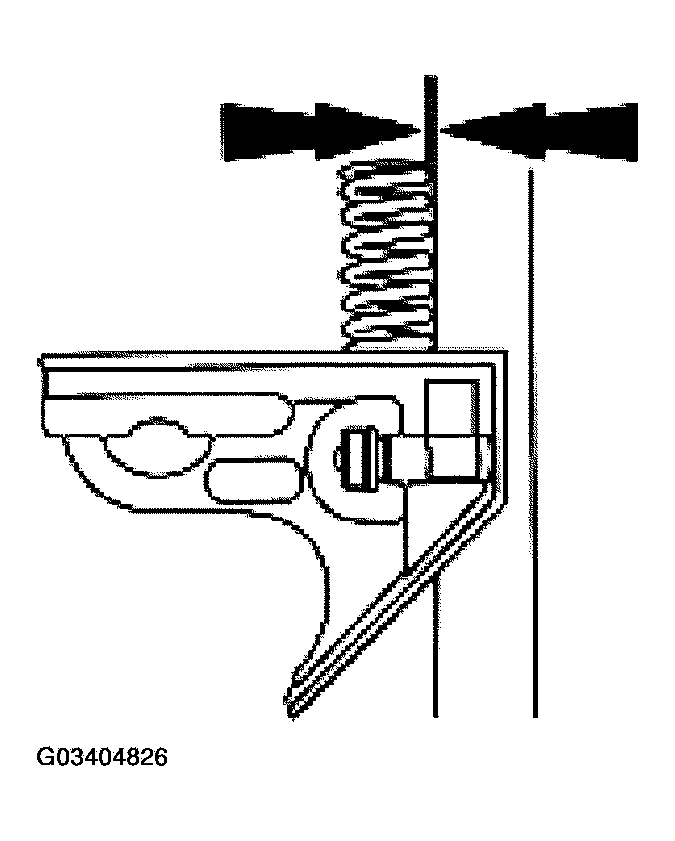

- Measure the out-of-square on each valve spring.
- Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square. Refer to the appropriate ENGINE article for the procedure.
