Front Electronic Module (FEM) C201b

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

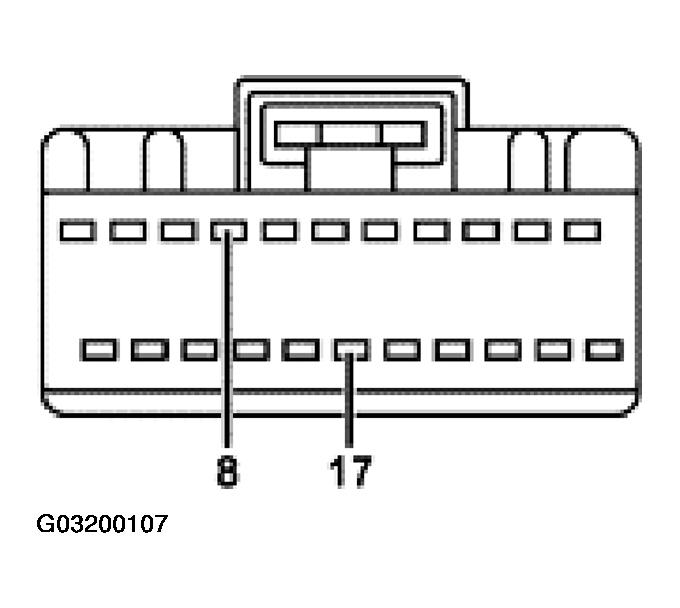

Fig 1: Identifying Front Electronic Module C201B Connector Pins

Courtesy of FORD MOTOR CO.

C201B CONNECTOR PINS REFERENCE

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
8	32-AL19 (WH/GN) ground input to FEM, moves pedal away from driver	0 voltage and less than 5 ohms to chassis ground, continuity between switch and FEM module.
17	34-AL19 (BU/BK) ground input to FEM, moves pedal toward driver	0 voltage and less than 5 ohms resistance to chassis ground, continuity between switch and FEM module.
