Front Electronic Module (FEM) C201e

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

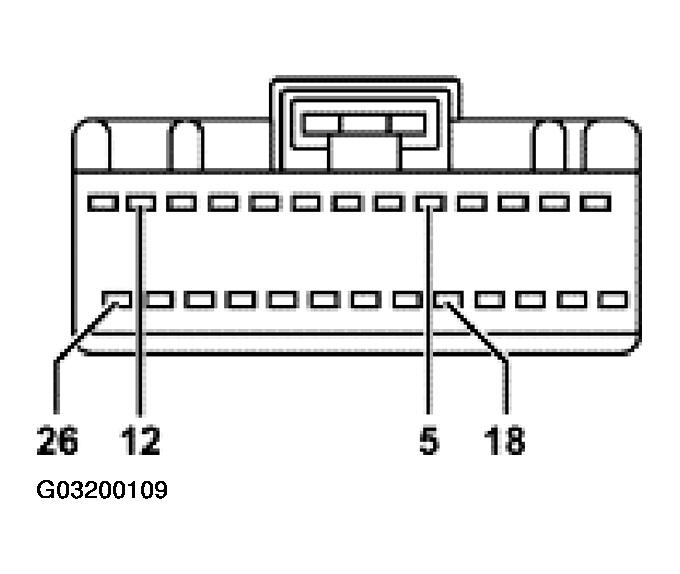

Fig 1: Identifying Front Electronic Module C201E Connector Pins

Courtesy of FORD MOTOR CO.

C201E CONNECTOR PINS REFERENCE

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
5	8-AL 18 (WH/RD) pedal position feedback circuit (FEM uses signal to recall pedal position from memory)	Voltage varies with pedal position, continuity between FEM and adjustable pedal motor.
12	34-AL 18 (BU/RD) adjustable pedal motor rearward (away from driver)	Greater than 10 volts with adjustable pedal motor moves rearward. Provides ground to adjustable pedal motor when adjustable pedal motor moves forward.
18	9-AL 18 (BN/RD) adjustable pedal potentiometer signal ground to FEM, (-), and diagnostic feedback circuit	Resistance between 3,600 and 5,400 ohms, 0 voltage, when connected.
26	35-AL 18 (VT/BU) adjustable pedal motor forward (toward driver)	Greater than 10 volts with adjustable pedal motor moves forward. Provides ground to adjustable pedal motor when adjustable pedal motor moves rearward.
