Front Electronic Module (FEM) C201f

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

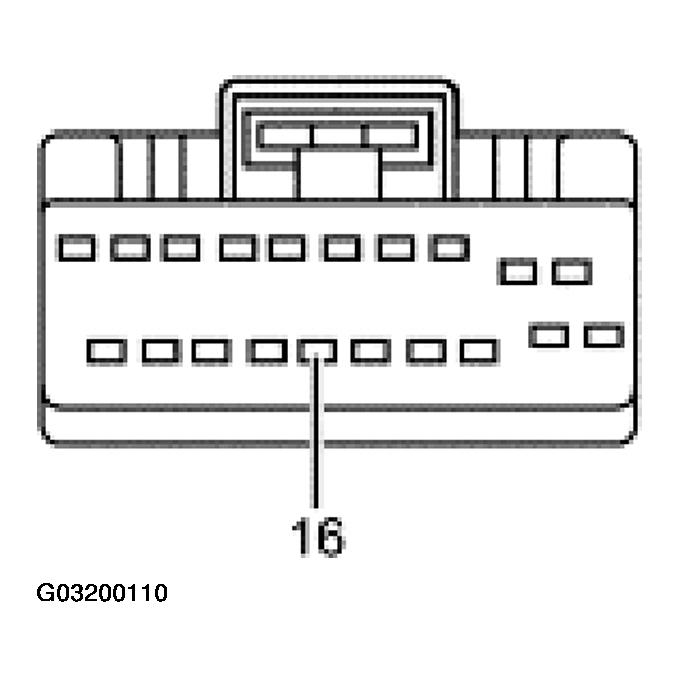

Fig 1: Identifying Front Electronic Module C201F Connector Pins

Courtesy of FORD MOTOR CO.

C201F CONNECTOR PINS REFERENCE

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
16	7-AL 18 (YE/RD) adjustable pedal potentiometer (+)	10 volt reference applied to adjustable pedal potentiometer, continuity between adjustable pedal motor and FEM.
