Driver Memory Seat Module C341c

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

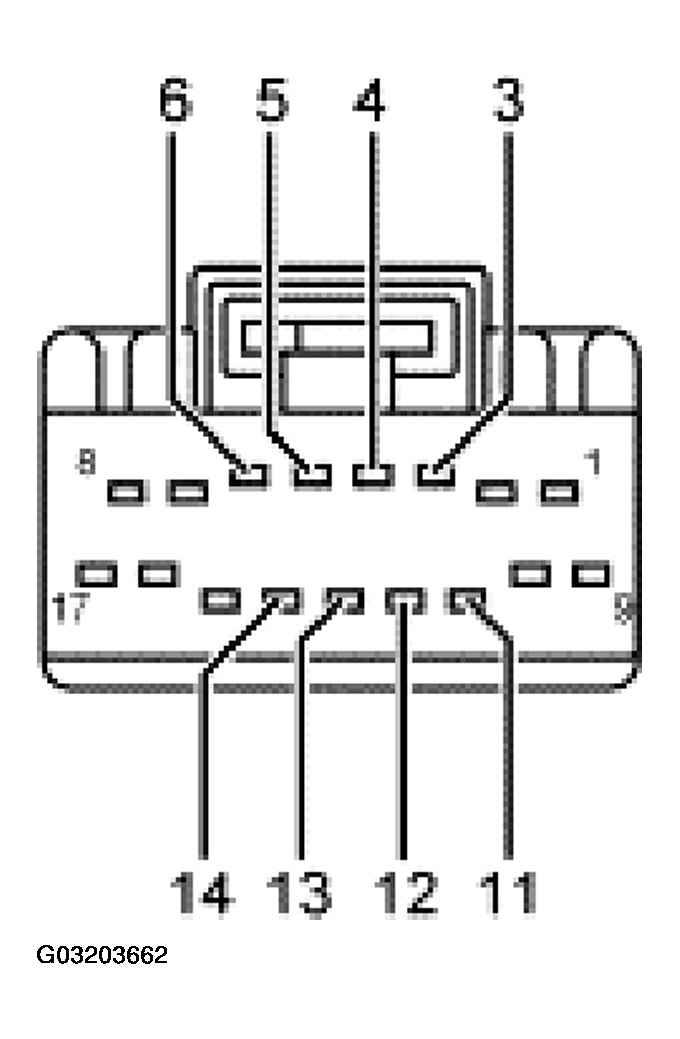

Fig 1: Identifying Driver Memory Seat Module C341C Connector

Courtesy of FORD MOTOR CO.

PINS CIRCUIT REFERENCE

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
3	CKT 10-AH83 (GY/OG) Rearward input circuit from power seat switch to DSM	Less than 5 ohms to the DSM. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in rearward, less than 5 ohms to ground when switch is in forward.
4	CKT 10-AH82 (GY/RD) Rearward recliner input circuit from power seat switch to DSM	Less than 5 ohms to the DSM. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in rearward, less than 5 ohms to ground when switch is in forward.
5	CKT 8-AH84 (WH/BK) Front down input circuit from power seat switch to DSM	Less than 5 ohms to the DSM. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in front down, less than 5 ohms to ground when switch is in front up.
6	CKT 10-AH85 (GY/WH) Rear down input circuit from power seat switch to DSM	Less than 5 ohms to the DSM. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in rear down, less than 5 ohms to ground when switch is in rear up.
11	CKT 8-AH83 (WH/GN) Forward input circuit from power seat switch to DSM	Less than 5 ohms to the DSM. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in forward, less than 5 ohms to ground when switch is in rearward.
12	CKT 8-AH82 (WH/RD) Forward recliner input circuit from power seat switch to DSM	Less than 5 ohms to the DSM. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in forward, less than 5 ohms to ground when switch is in rearward.
13	CKT 10-AH84 (GY/BK) Front up input circuit from power seat switch to DSM	Less than 5 ohms to the DSM. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in front up, less than 5 ohms to ground when switch is in front down.
14	CKT 8-AH85 (WH/VT) Rear up input circuit from power seat switch to DSM	Less than 5 ohms to the DSM. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in rear up, less than 5 ohms to ground when switch is in rear down.
