Light Sensor

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH and RH windshield side garnish mouldings. For additional information, refer to INTERIOR TRIM PANELS .
  2. Remove the parts in the order indicated in the following illustration and table.

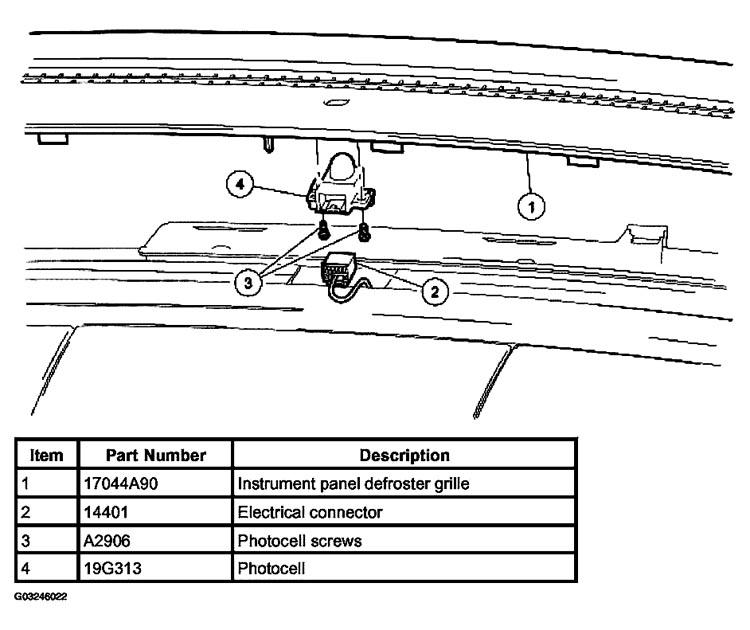

    Fig 1: Light Sensor Components Removal Sequence
    G03246022Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
