Strut And Spring Assembly: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

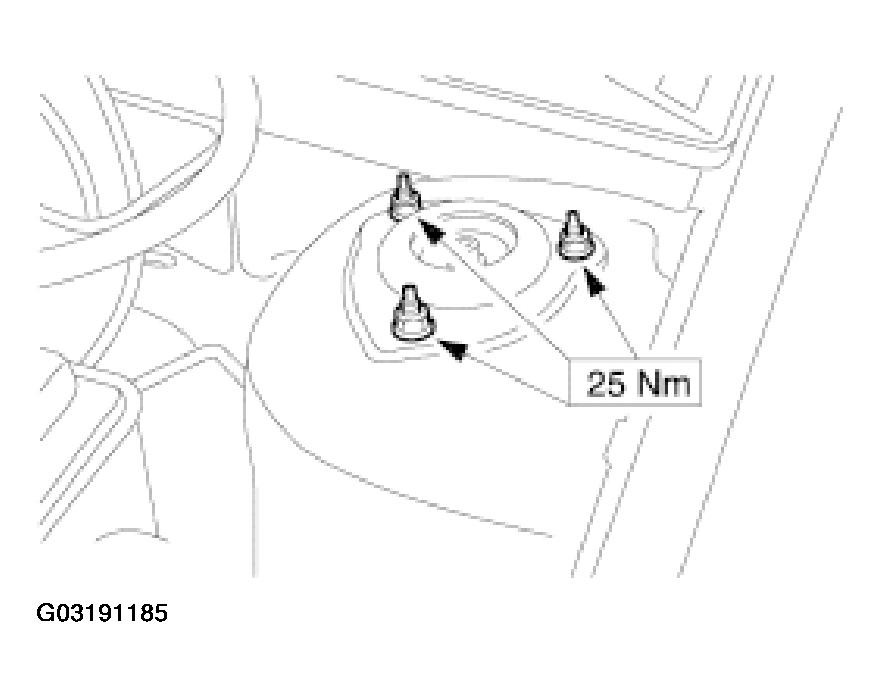

Fig 1: Tightening Strut Tower Nuts
Courtesy of FORD MOTOR CO.

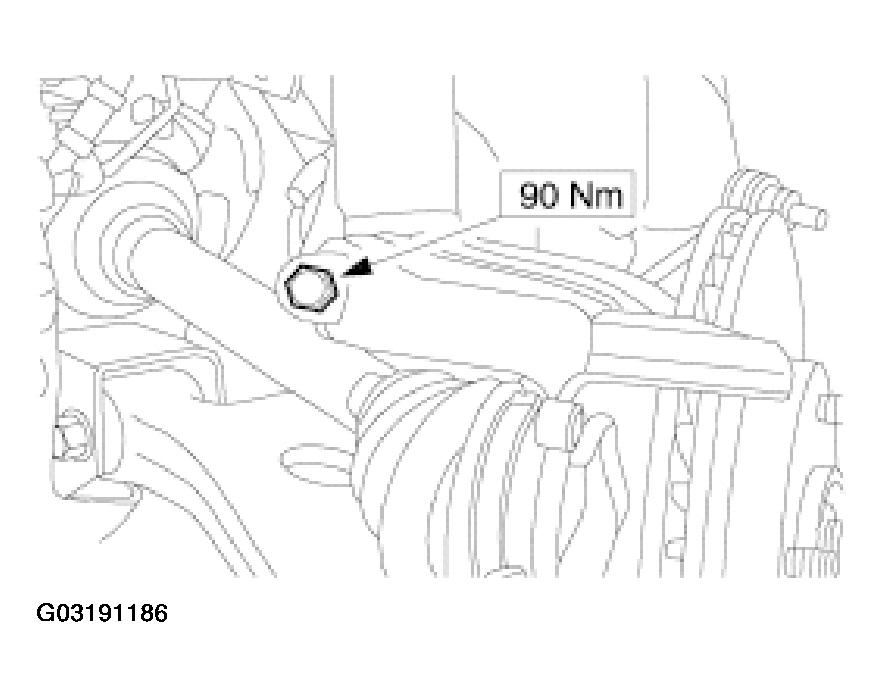

Fig 2: Tightening Wheel Knuckle Bolt
Courtesy of FORD MOTOR CO.

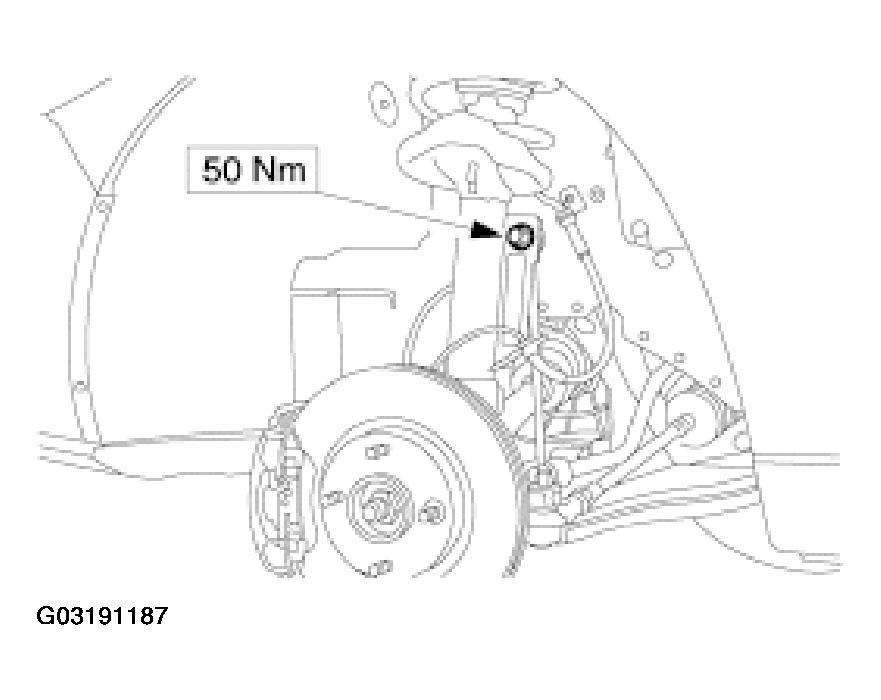

Fig 3: Stabilizer Bar Connecting Link Tightening Torque
Courtesy of FORD MOTOR CO.
Check the front wheel alignment. For additional information, refer to SUSPENSION SYSTEM -- GENERAL INFORMATION .
