Section 601 (Engine - 4.0L): Assembly: Engine: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

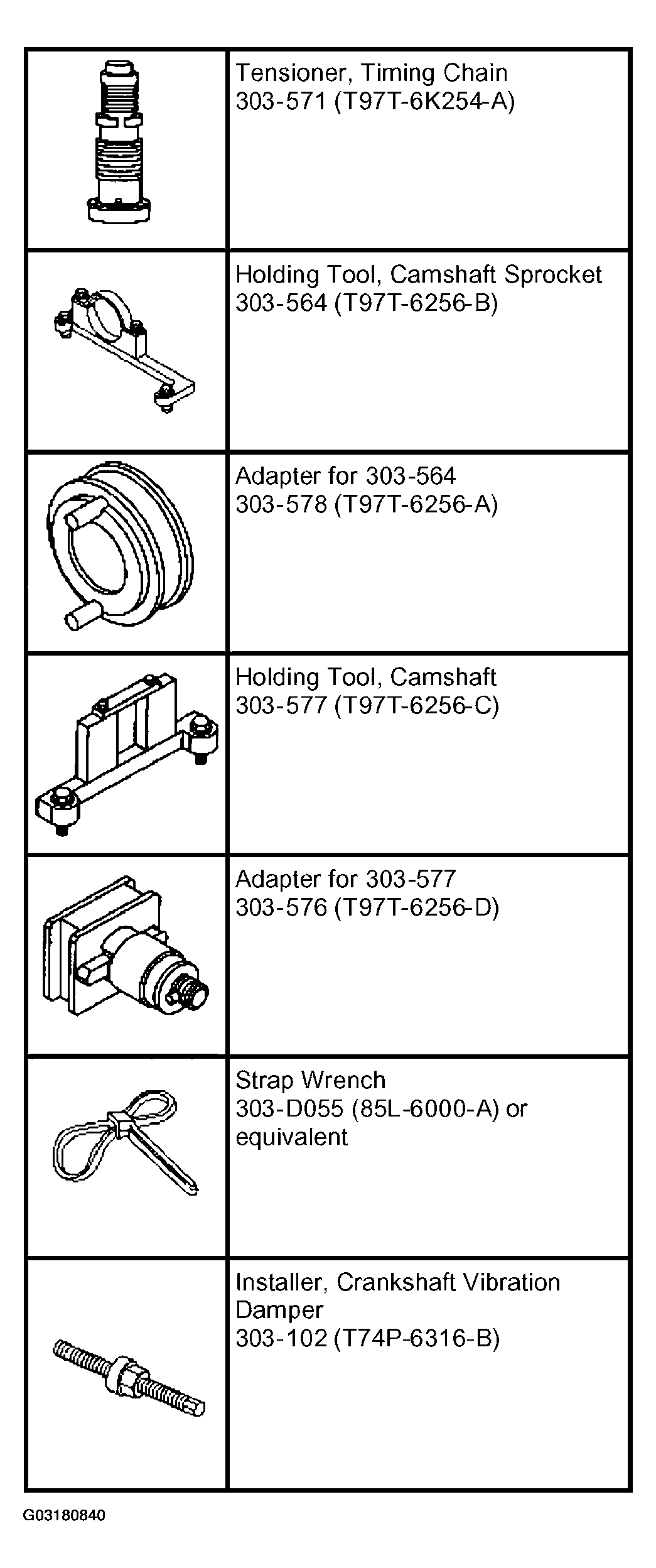

Fig 1: Identifying Special Tool(s) (1 Of 2)
G03180840Courtesy of FORD MOTOR CO.

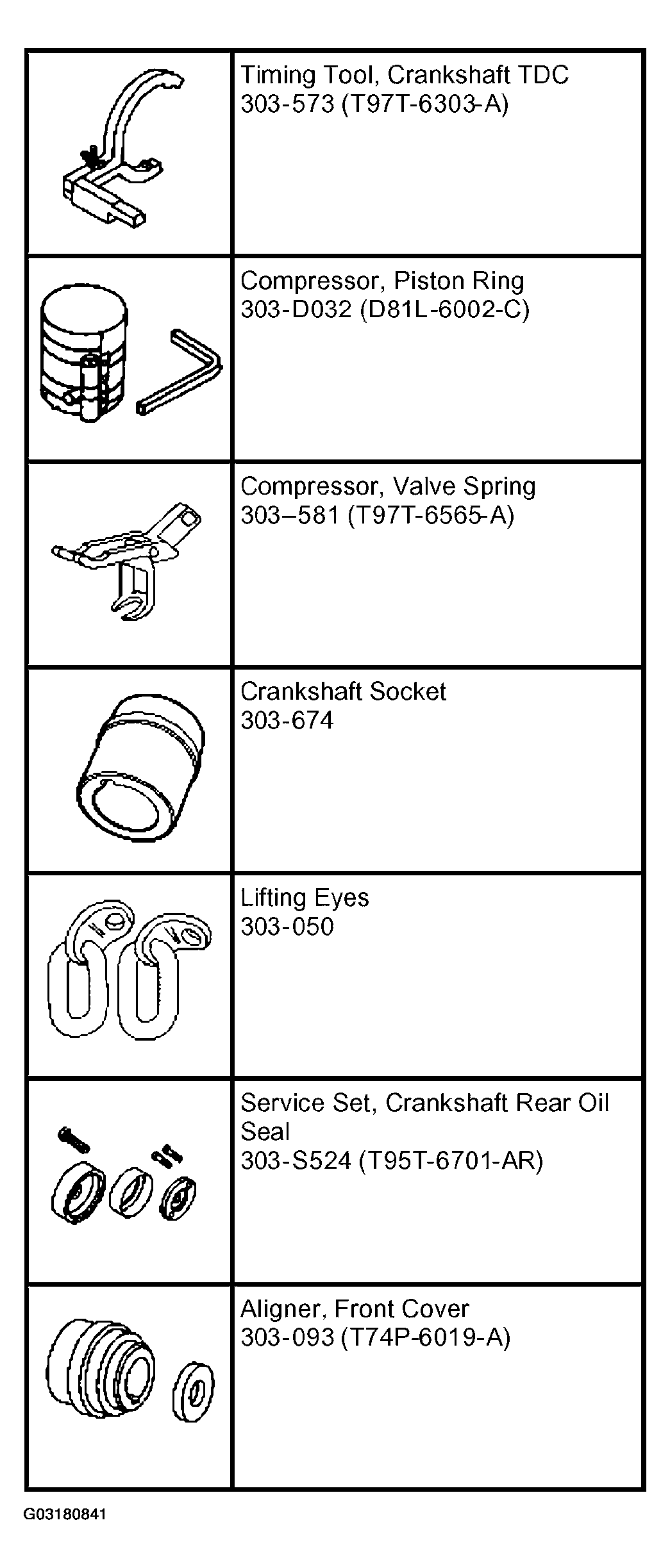

Fig 2: Identifying Special Tool(s) (2 Of 2)
G03180841Courtesy of FORD MOTOR CO.
MATERIALS

Item Specification
SAE 5W-30 Super Premium Motor Oil XO-5W30-QSP or equivalent WSS-M2C153-6
Metal Surface Cleaner F4AZ-19A536-RA or equivalent WSE-M5B392-A
Silicone Gasket and Sealant F7AZ-19554-EA or equivalent WSE-M4G323-A4
Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A or equivalent ESE-M1C171-A
