Function Selector Switch
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

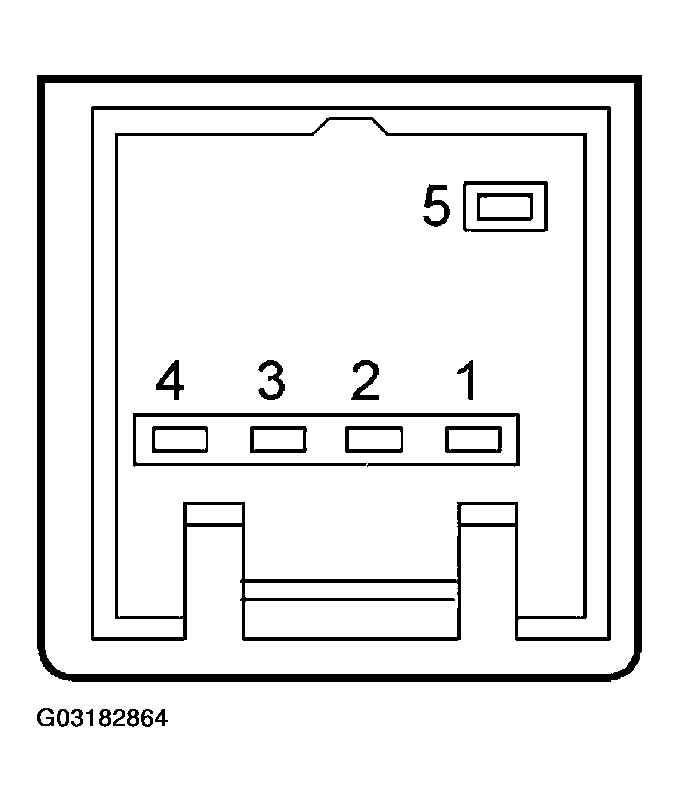

Courtesy of FORD MOTOR CO. FUNCTION SELECTOR SWITCH CONTINUITY
| Function selection |
Continuity between electrical pins |
| MAX A/C |
1,2,3 and 4 |
| PANEL |
1,2 and 4 |
| PANEL/FLOOR |
1,2 and 4 |
| OFF |
None |
| FLOOR |
1,2 and 4 |
| FLOOR/DEFROST |
1,2 and 5 |
| DEFROST |
1,2 and 5 |
