Brake System Bleeding: Pressure

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Clean all dirt from and remove the brake master cylinder filler cap. Fill the brake master cylinder reservoir with the specified brake fluid.

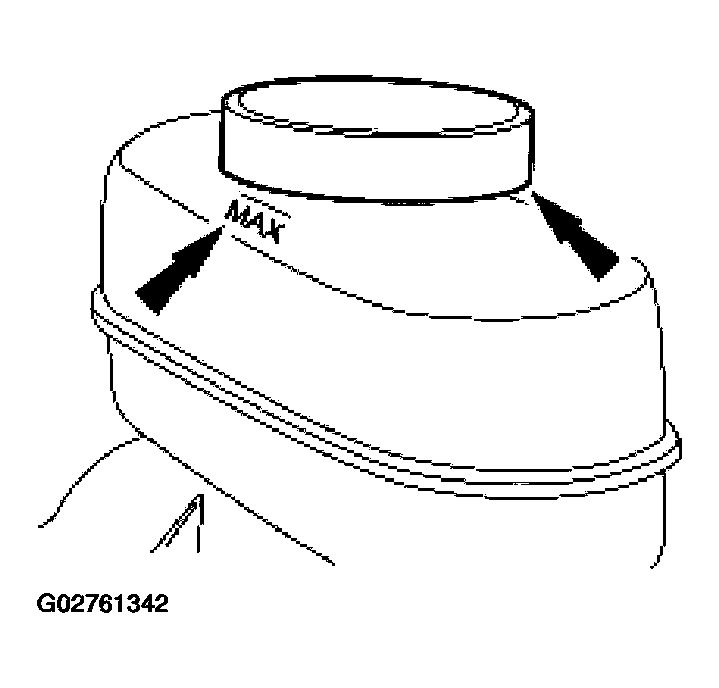

Fig 1: View Of Brake Master Cylinder Reservoir
Courtesy of FORD MOTOR CO.

NOTE: Master cylinder pressure bleeder adapter tools are available from various manufacturers of pressure bleeding equipment. Follow the instructions of the manufacturer when installing the adapter.

Install the bleeder adapter to the brake master cylinder reservoir, and attach the bleeder tank hose to the fitting on the adapter.

NOTE: Bleed the longest line first. Make sure the bleeder tank contains enough specified brake fluid to complete the bleeding operation.

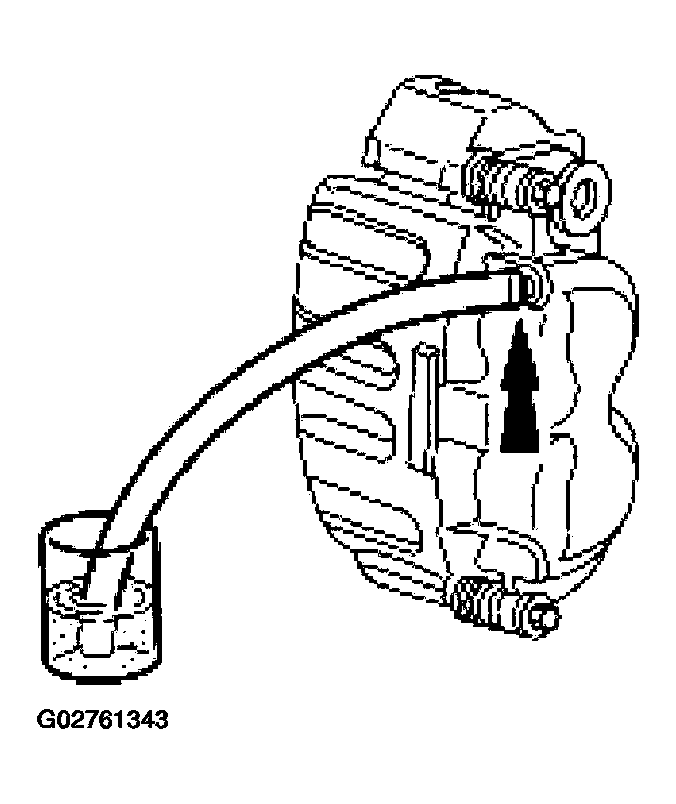

Fig 2: Attaching Rubber Drain Tube To Rh Rear Bleeder Screw

Courtesy of FORD MOTOR CO.

Attach a rubber drain tube to the RH rear bleeder screw, and submerge the free end of the tube in a container partially filled with clean brake fluid.
Open the valve on the bleeder tank.
Loosen the RH rear bleeder screw. Leave open until clear, bubble-free brake fluid flows, then tighten the RH rear bleeder screw and remove the rubber hose.

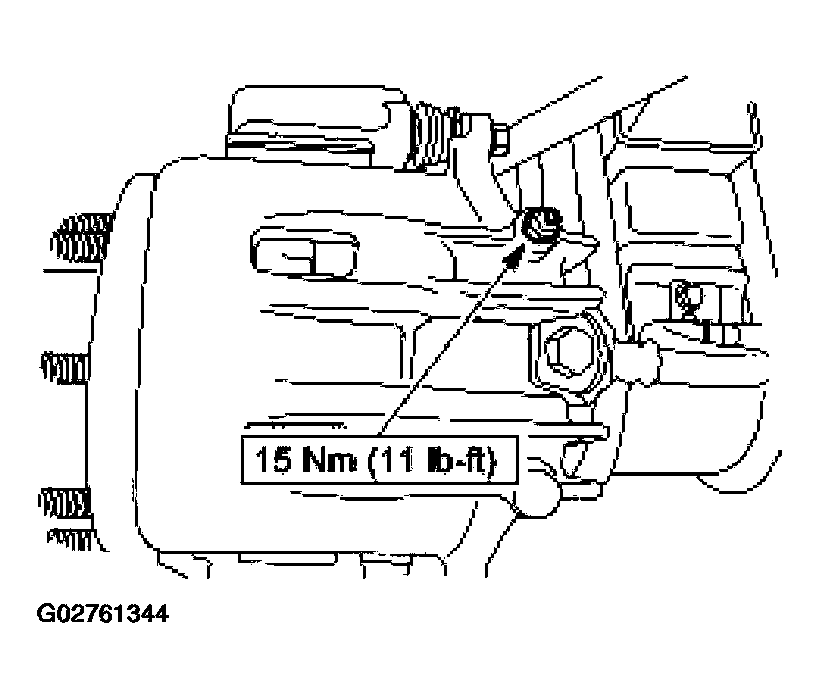

Fig 3: Identifying Tightening Torque Of RH Rear Bleeder Screw
Courtesy of FORD MOTOR CO.
Continue bleeding the rear of the system, going in order from the LH rear bleeder screw to the RH front disc brake caliper bleeder screw and ending with the LH front disc brake caliper bleeder screw.
Close the bleeder tank valve. Remove the tank hose from the adapter, and remove the adapter.
