Heater Core Backflushing
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

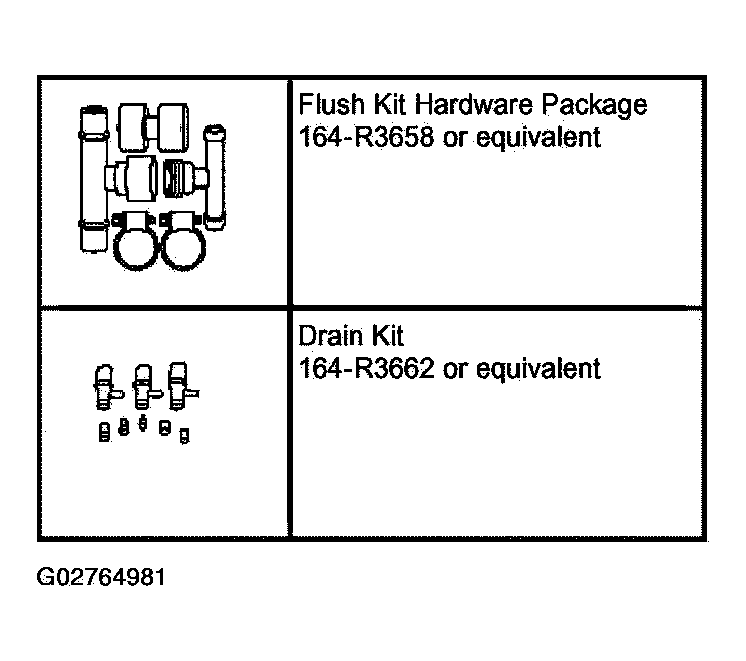

SPECIAL TOOL(S)
- Once pressure is released, remove the Pressure Relief cap.
- Partially drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
- Use an appropriate cooling system flusher to backflush the heater core. Use Motorcraft Cooling System Flush VC-1 or equivalent meeting Ford specification ESR-M14P7-A.
- Fill the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
WARNING:
Never remove the Pressure Relief cap while the engine is operating or when the cooling system is hot. Failure to follow these instructions can result in damage to the cooling system or engine or personal injury. To avoid having scalding hot coolant or steam blow out of the degas bottle when removing the Pressure Relief cap, wait until the engine has cooled, then wrap a thick cloth around the Pressure Relief cap and turn it slowly. Step back while the pressure is released from the cooling system. When you are sure all the pressure has been released, (still with a cloth) turn and remove the Pressure Relief cap.
NOTE:
For additional information, refer to the cooling system flusher operating instructions for particular vehicle hook-up.
