Spring Lock Coupling: Disconnect
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the spring lock coupling clip (19E746), if equipped.

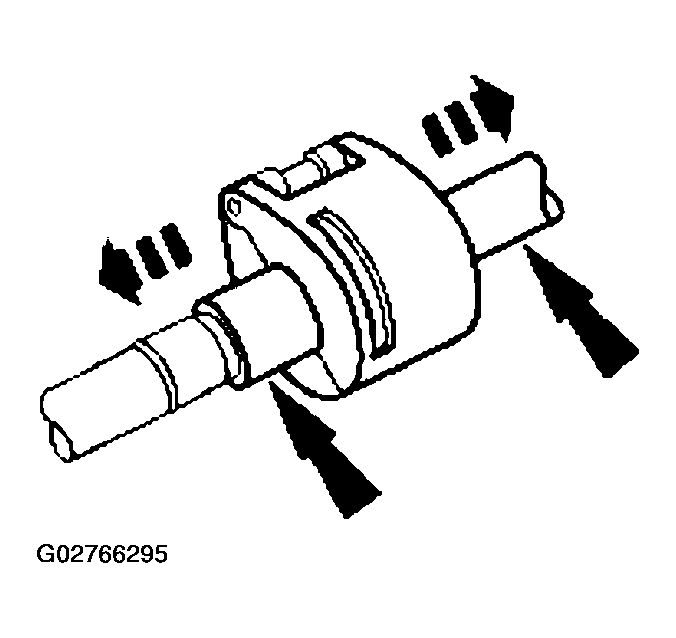

- Push the tool into the cage opening to release the female fitting from the spring lock coupling spring (19E576) and pull the fitting apart.
- Remove the O-ring seals using a non-metallic tool.

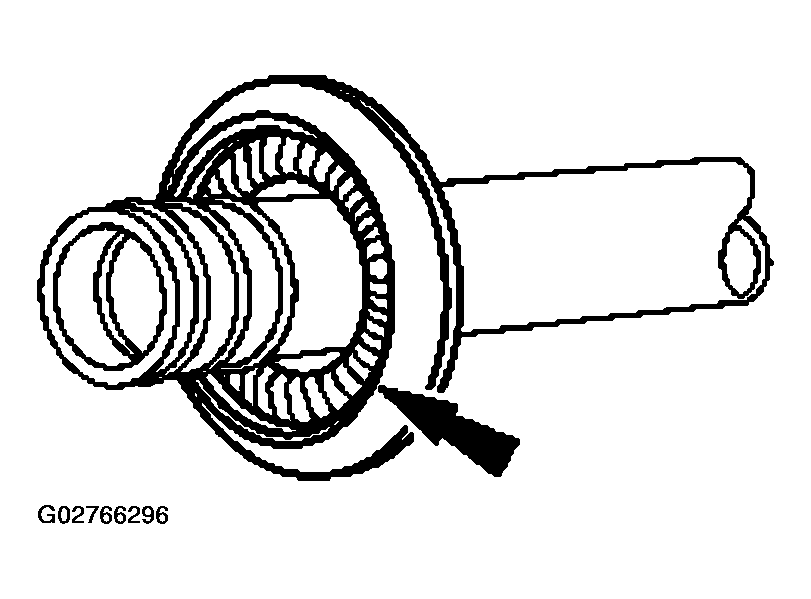

- Remove the spring lock coupling spring with a small hooked wire.
CAUTION:
Do not use metal tools to remove the O-ring seals. They can cause axial scratches across the O-ring seal grooves, resulting in refrigerant leaks.
CAUTION:
Do not use a screwdriver or similar tool to remove the A/C tube lock coupling spring; this can cause axial scratches across the O-ring seal grooves resulting in refrigerant leaks.
