Function Selector Switch

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For circuit reference, see WIRING DIAGRAMS .

To check function selector switch operation, see Fig 1.

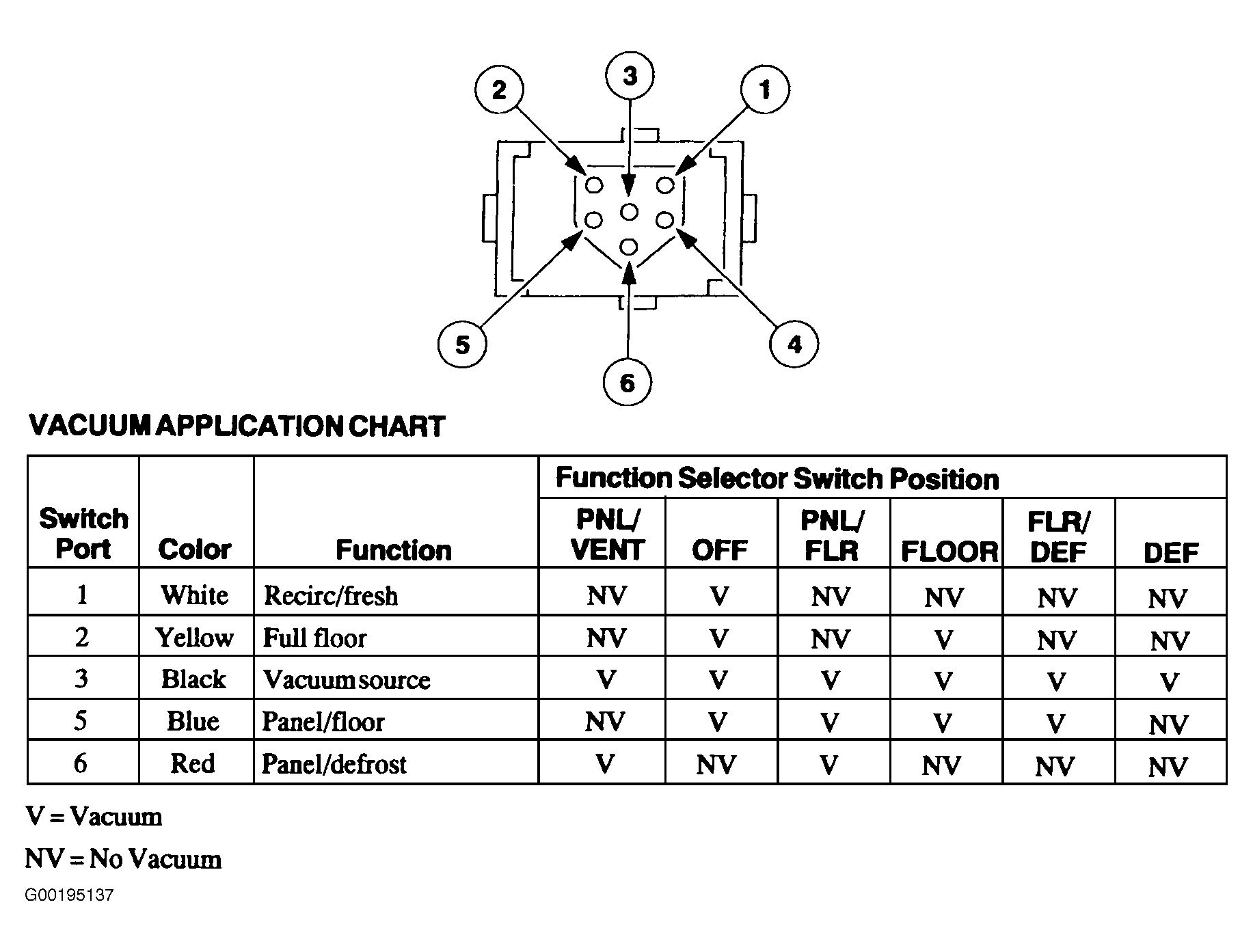

Fig 1: Testing Function Selector Switch

Courtesy of FORD MOTOR CO.
