Supplemental Inflatable Restraint System: Adjustments: CLOCKSPRING

If clockspring becomes misaligned, turn clockspring inner element clockwise until tight. Back off inner element 3.5 turns. Align Yellow arrows on inner and outer elements. See Fig 1 .

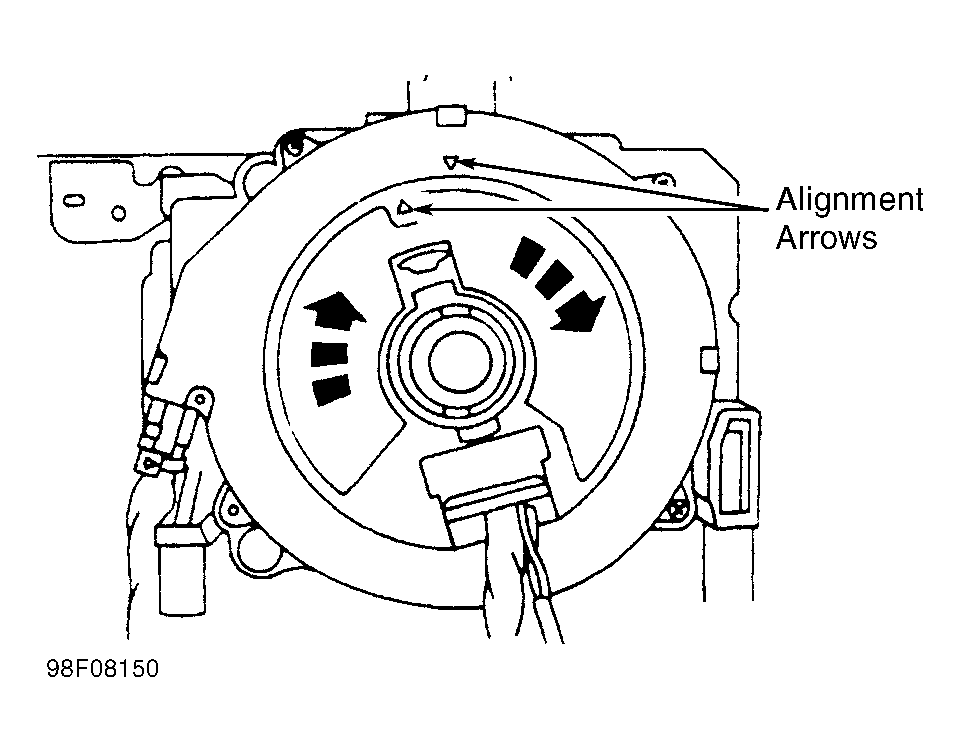

Fig 1: Aligning Clockspring

Courtesy of FORD MOTOR CO.
