Electronic Climate Control Module

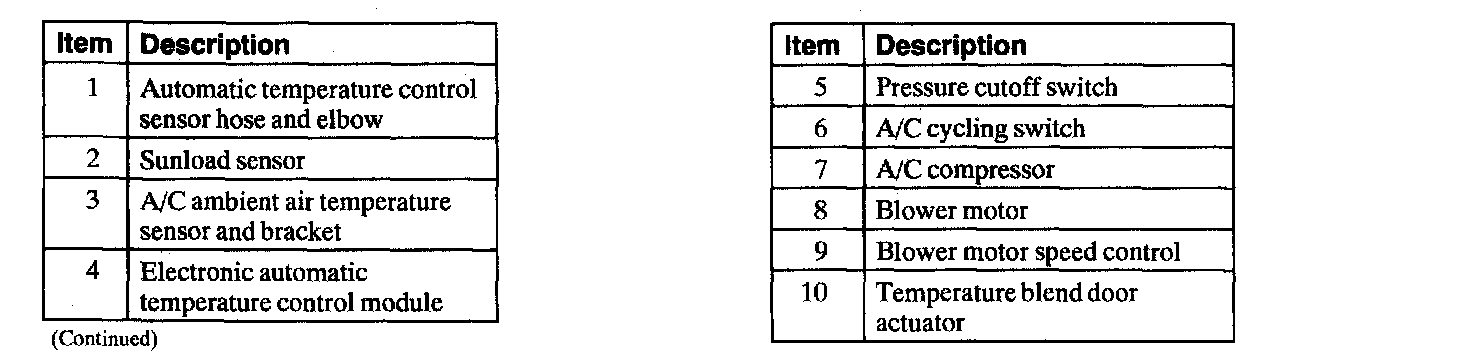

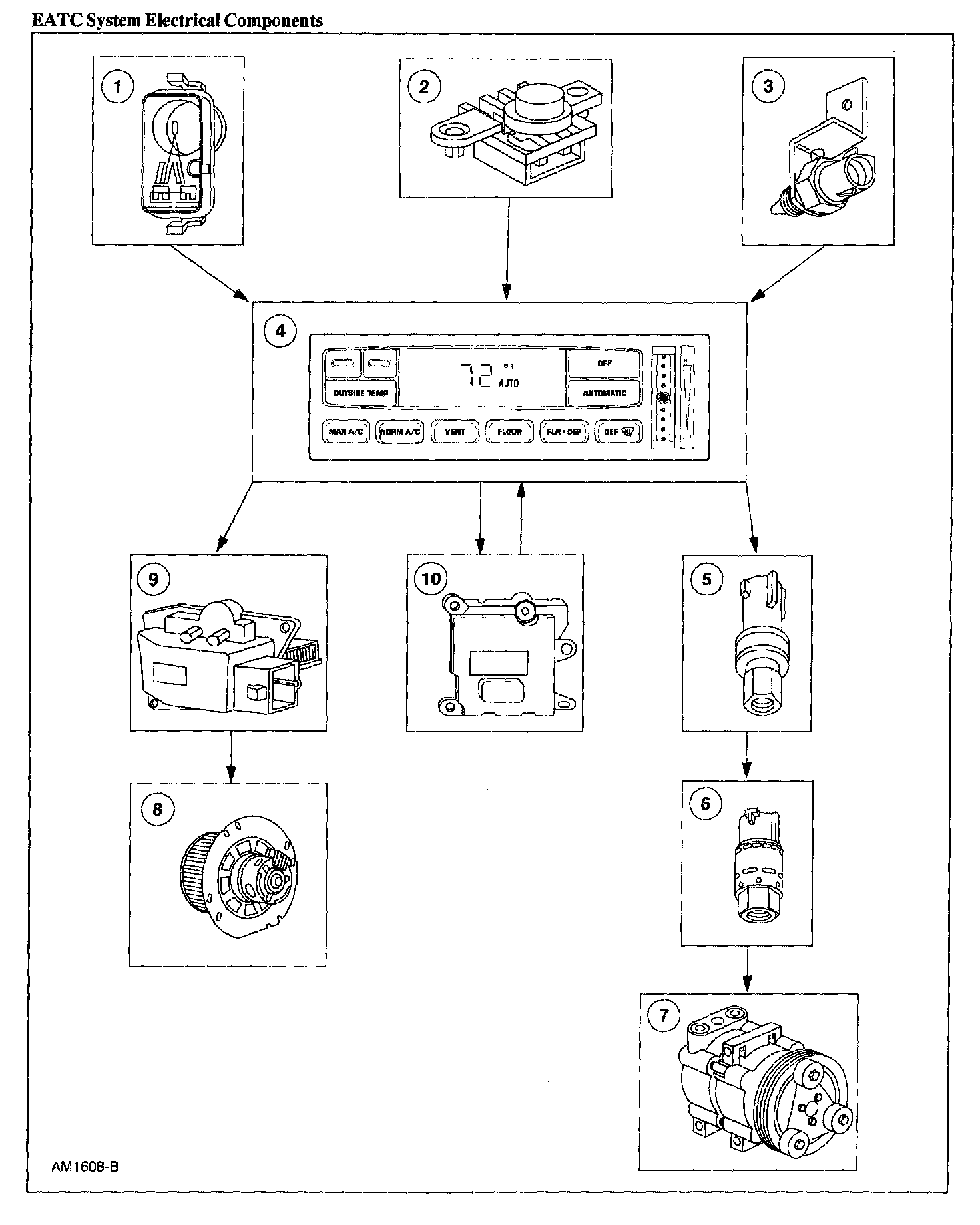

EATC System Electrical Components, Part 1:

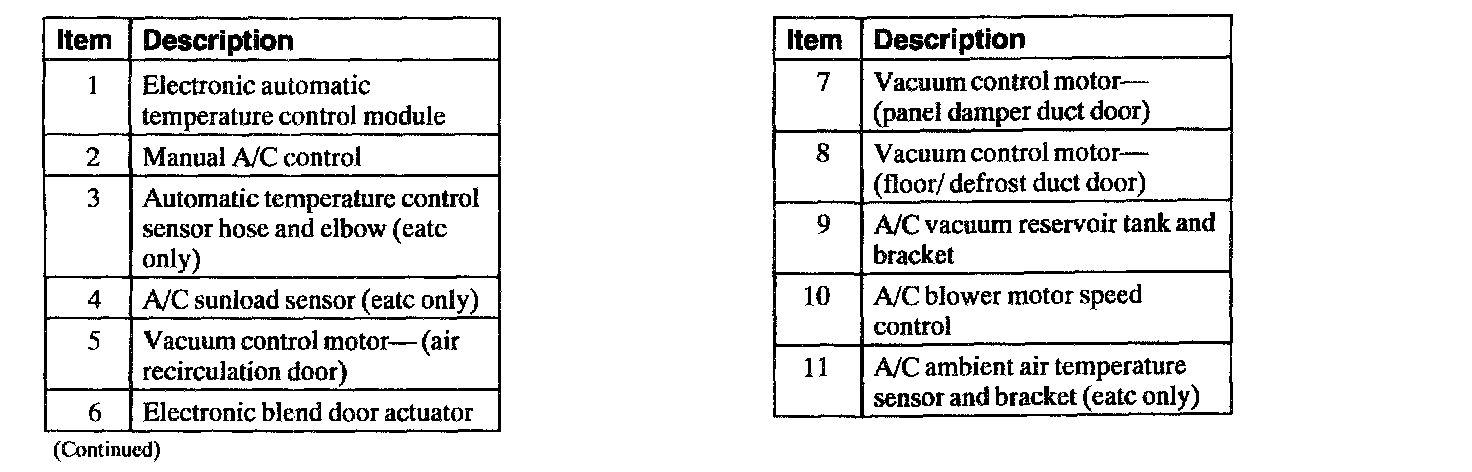

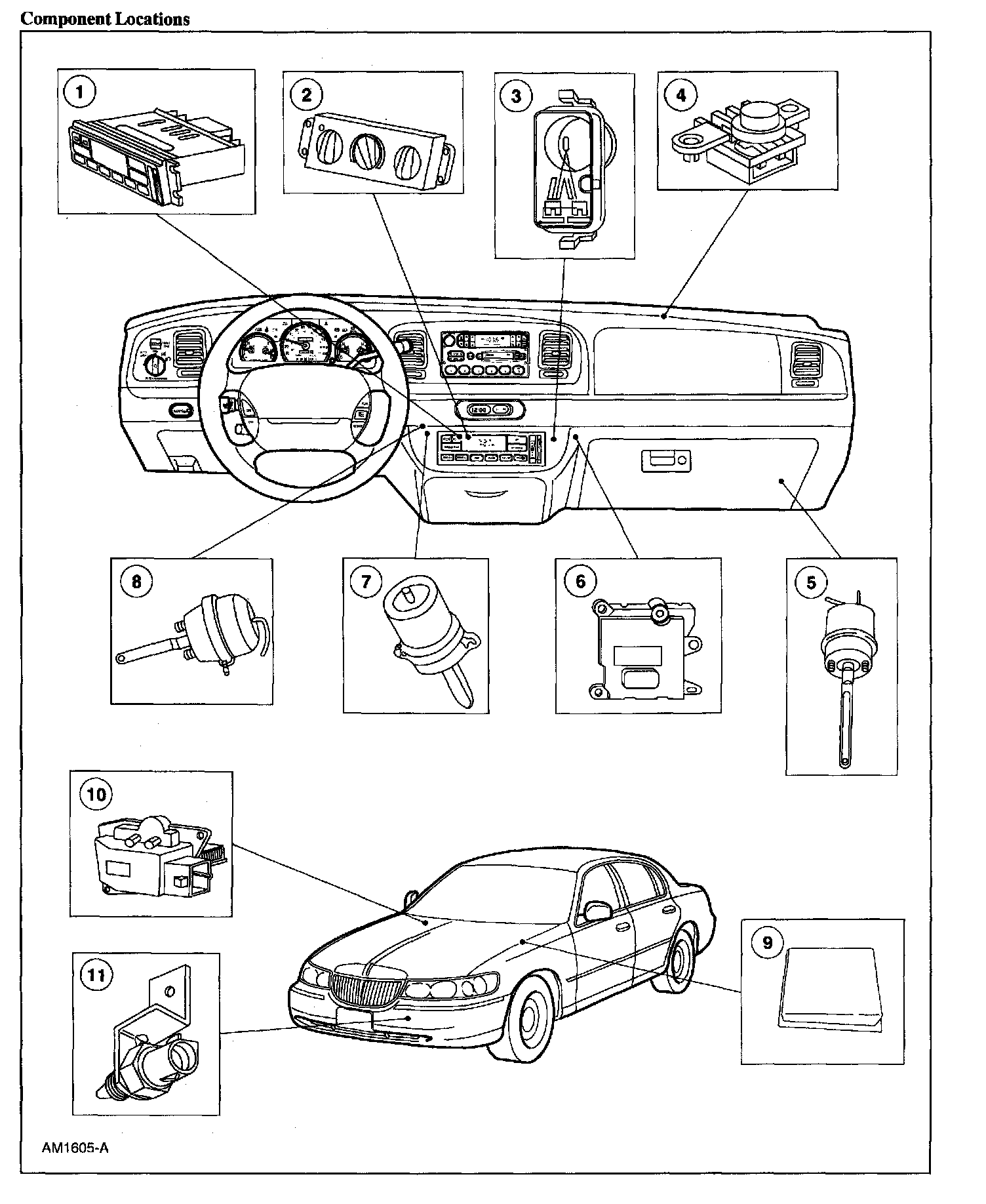

EATC System Electrical Components, Part 2:






Part 1:






Part 2:






View 151-7:
