Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to removal of the module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, Refer to MODULE CONFIGURATION .

Disconnect the battery. For additional information, Refer to BATTERY, MOUNTING AND CABLES .
Remove the LH instrument panel lower insulator.
1. Remove the pin-type retainers.
2. Disconnect the courtesy lamp.

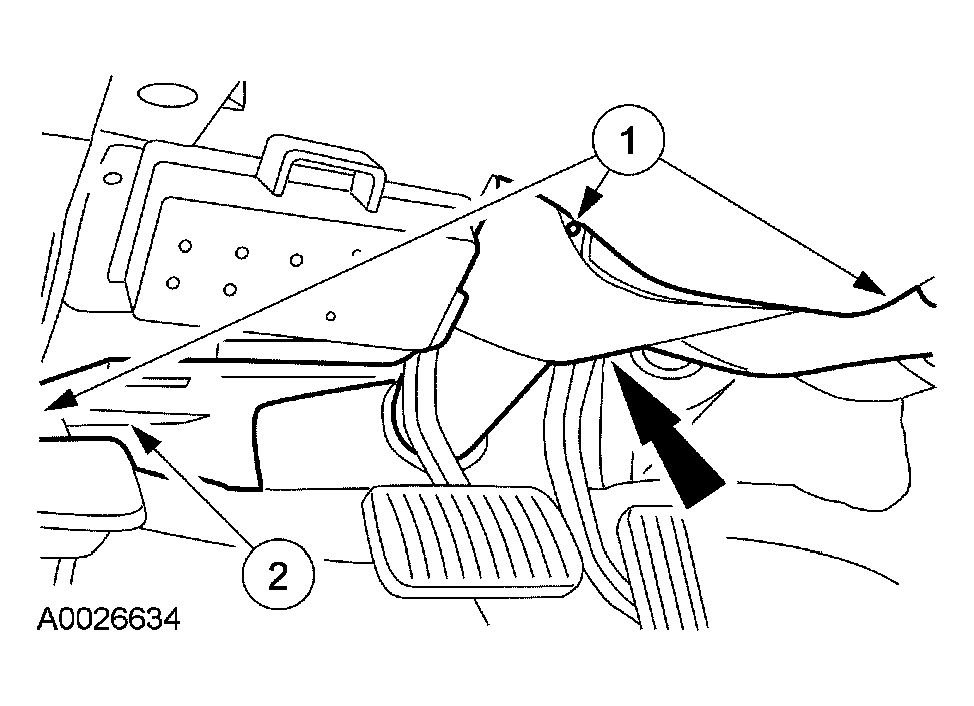

Fig 1: Removing LH Instrument Panel Lower Insulator
Courtesy of FORD MOTOR CO.
Remove the accelerator pedal and shaft. For additional information, Refer to ACCELERATION CONTROL .
Position the LCM aside.
1. Remove the screws.
2. Release the locking tab.

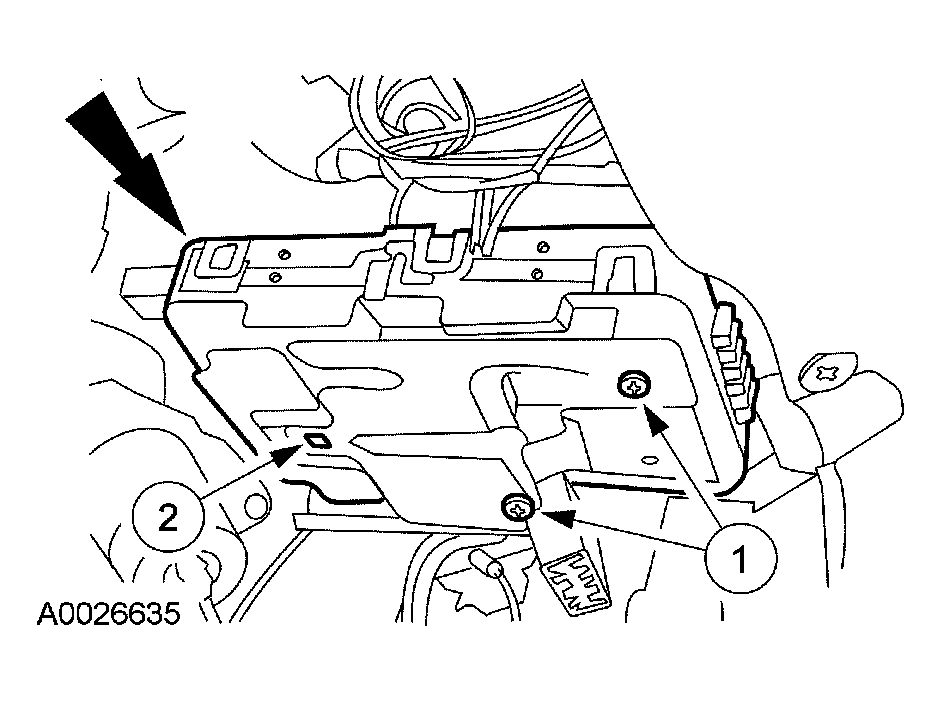

Fig 2: Positioning LCM Aside
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors and remove the LCM.

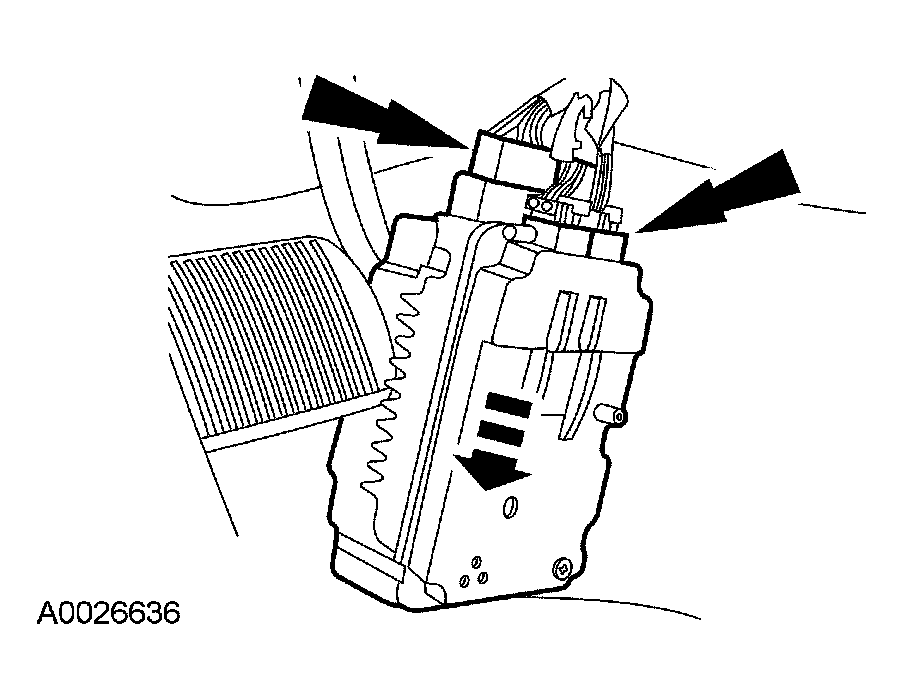

Fig 3: Removing LCM
Courtesy of FORD MOTOR CO.

CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module. For additional information, Refer to MODULE CONFIGURATION .

To install, reverse the removal procedure.
