Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

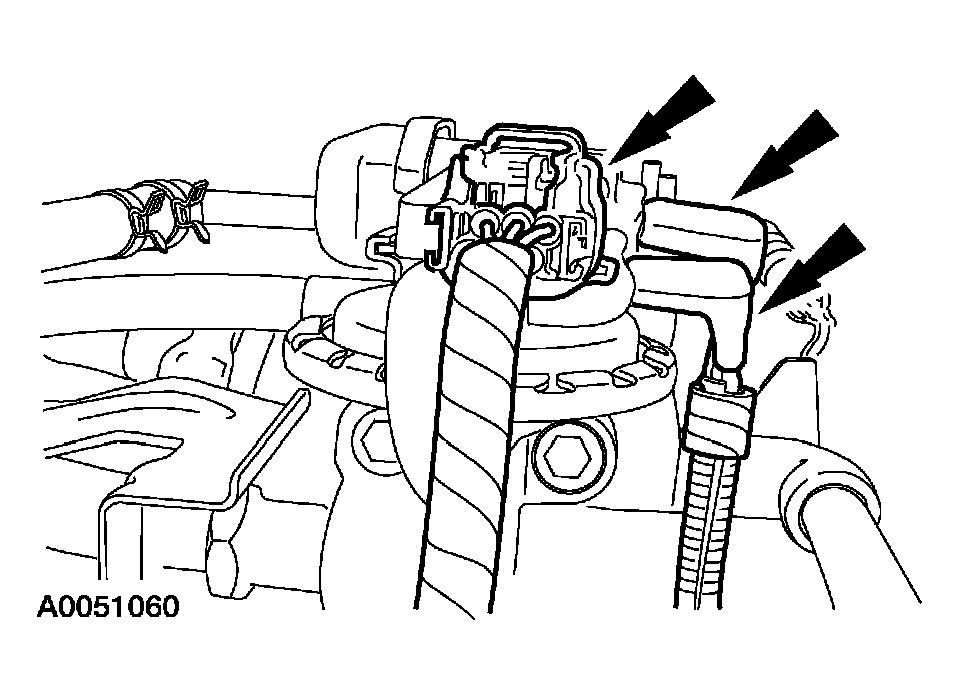

Disconnect the vacuum tubes and the electrical connector.

Fig 1: Disconnecting Vacuum Tubes And Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolts from the intake manifold shield.

Fig 2: Removing Bolts From Intake Manifold Shield
Courtesy of FORD MOTOR CO.
Disconnect the exhaust valve recirculation (EGR) system module tube nut from the EGR system module.

Fig 3: Disconnecting Exhaust Valve Recirculation (EGR) System Module Tube Nut From EGR System Module
Courtesy of FORD MOTOR CO.

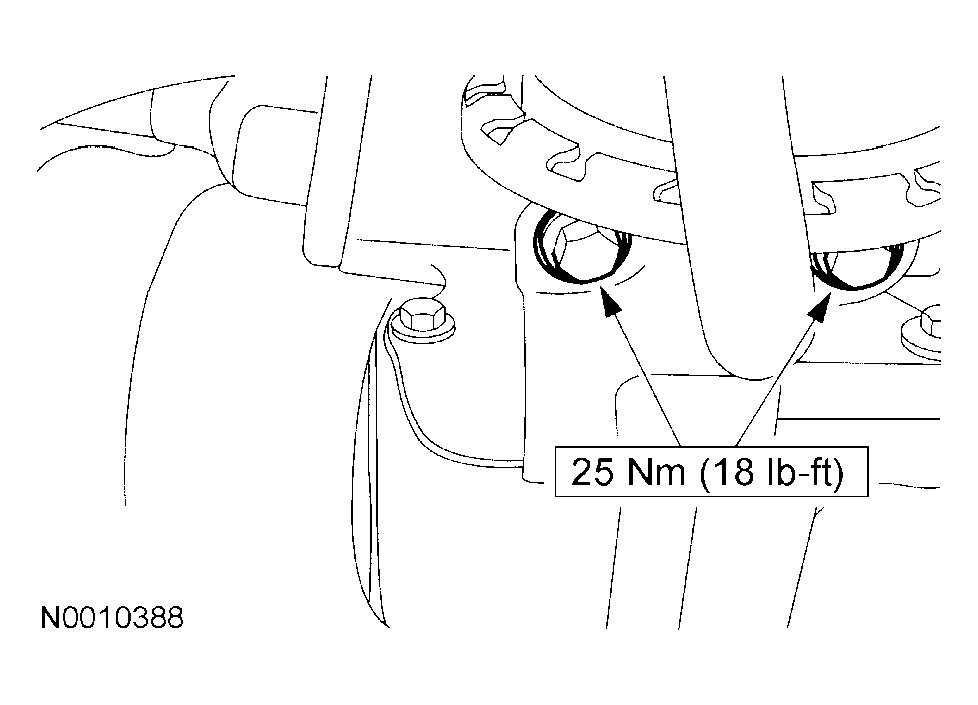

Remove the bolts and the EGR system module.

Fig 4: Removing Bolts And EGR System Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install a new EGR system module gasket with the side with the raised circle facing the intake manifold.
Fig 5: Identifying EGR System Module Gasket
Courtesy of FORD MOTOR CO.
