Home >> Ford >> 2001 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> System Diagram

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

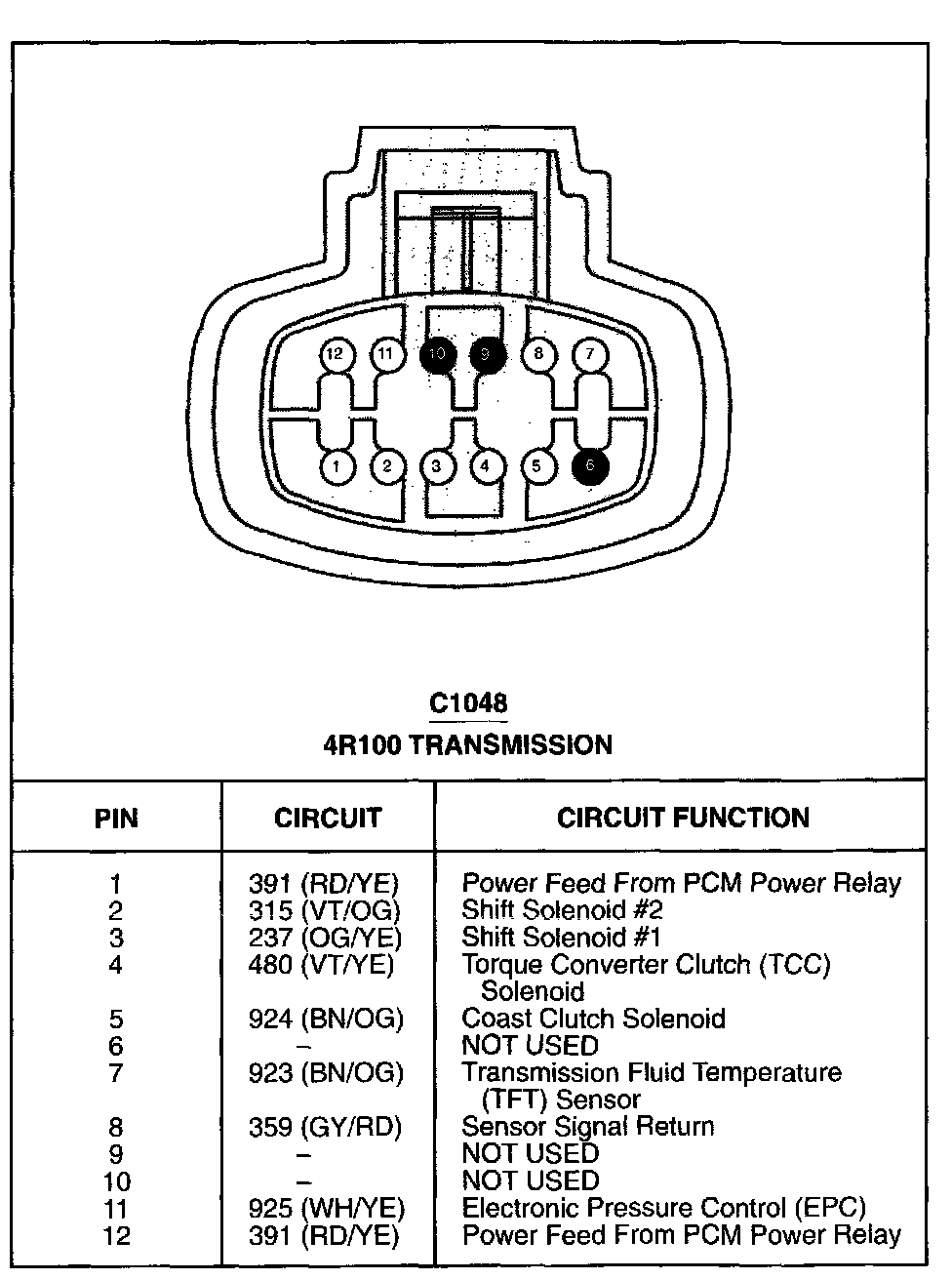

System Diagram
