Dana Model 80, Full-Floating Rear Axle, Disassembled View

Dana Model 80, Full-Floating Rear Axle, Disassembled View

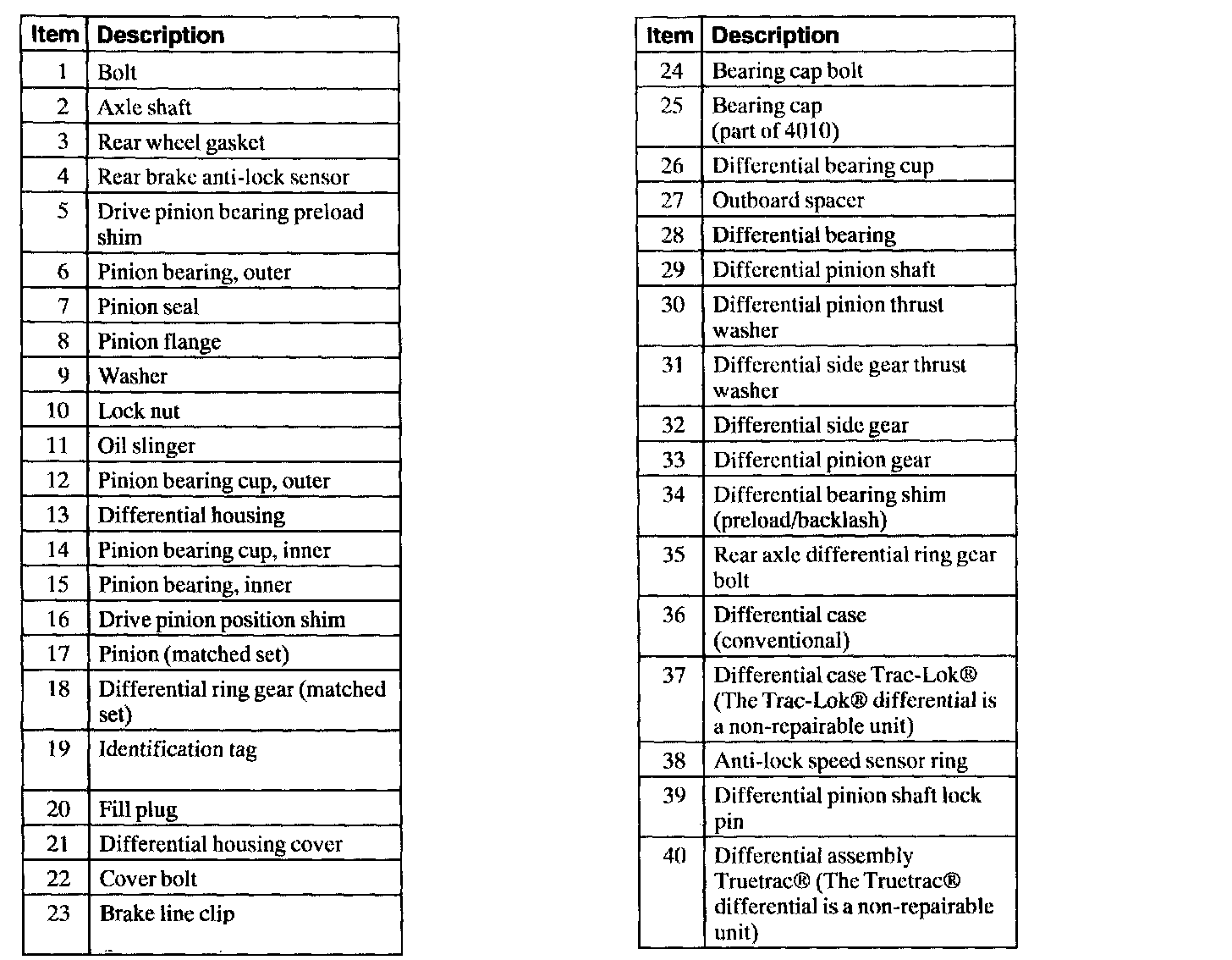

Part 1 of 2

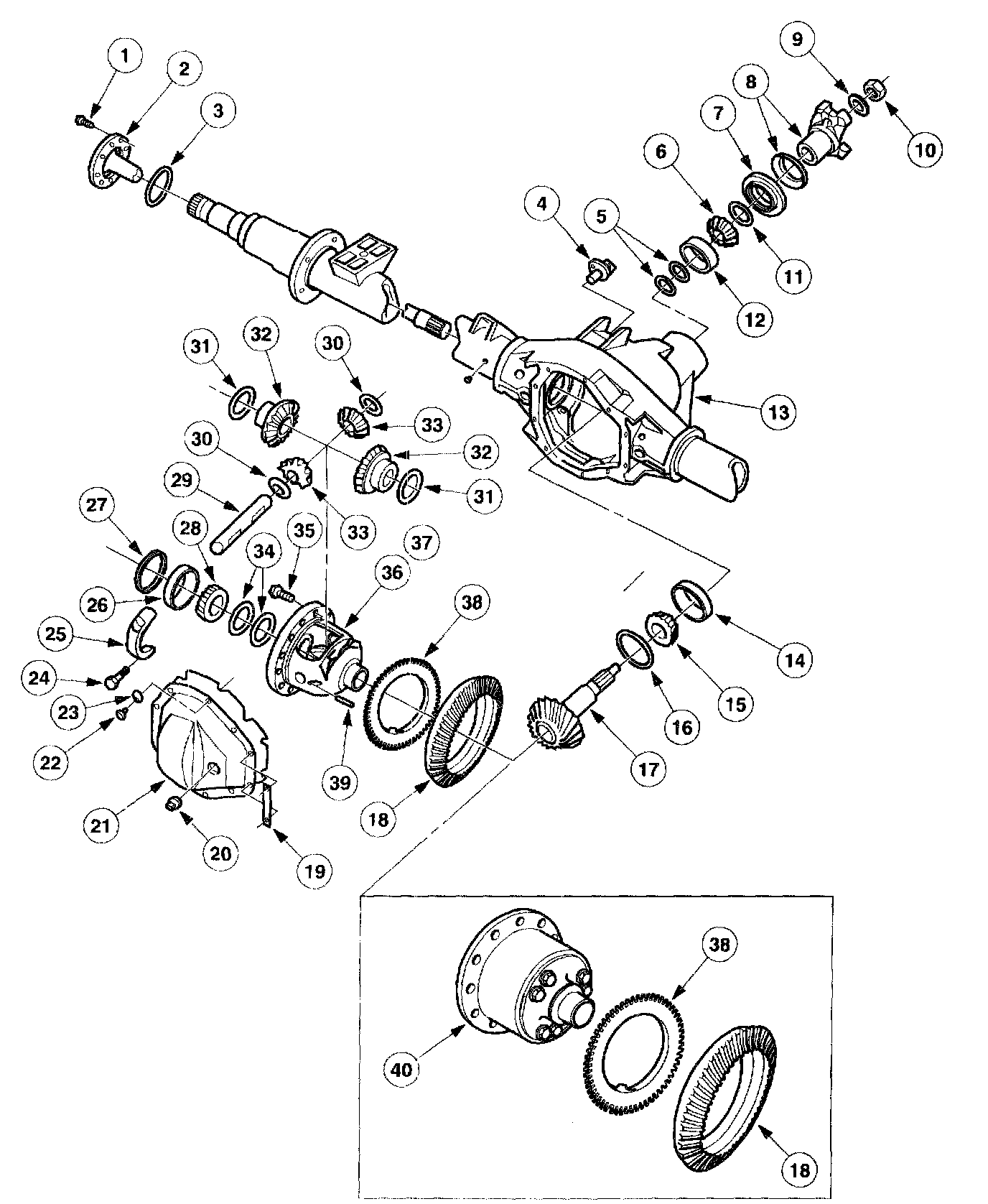

Part 2 of 2
