DTC Condition/Cause Charts

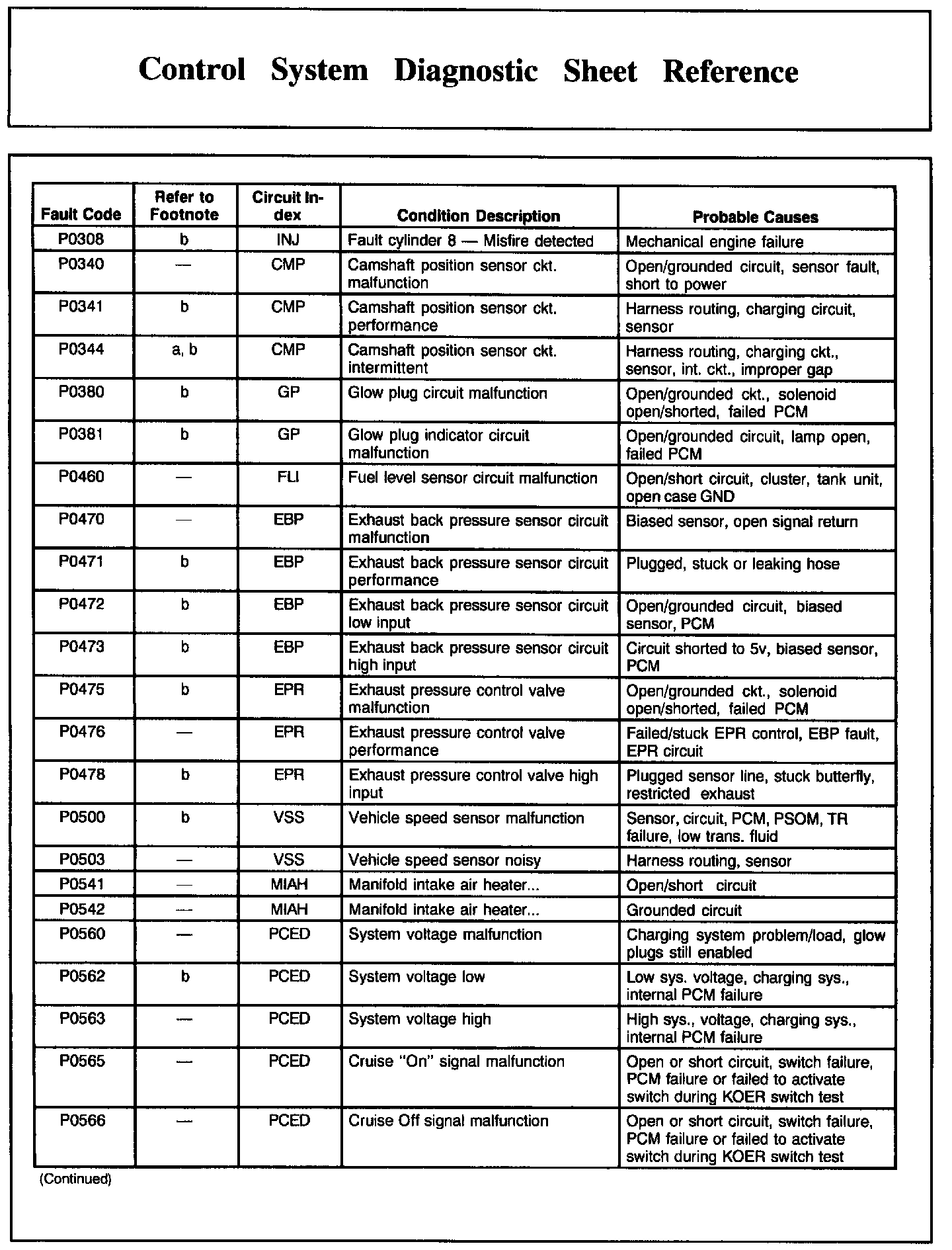

DTC Condition/Cause Chart, Part 1:

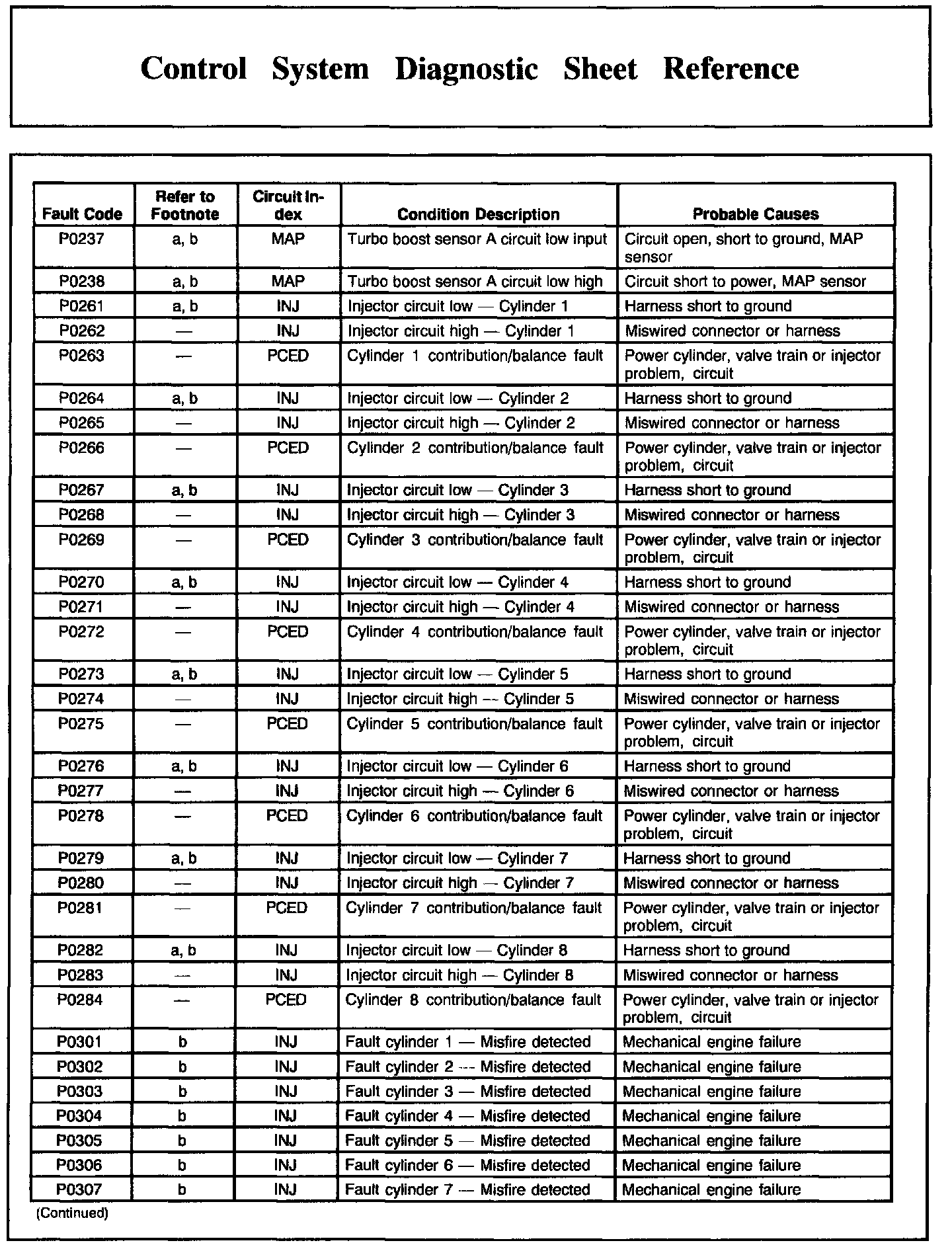

DTC Condition/Cause Chart, Part 2:

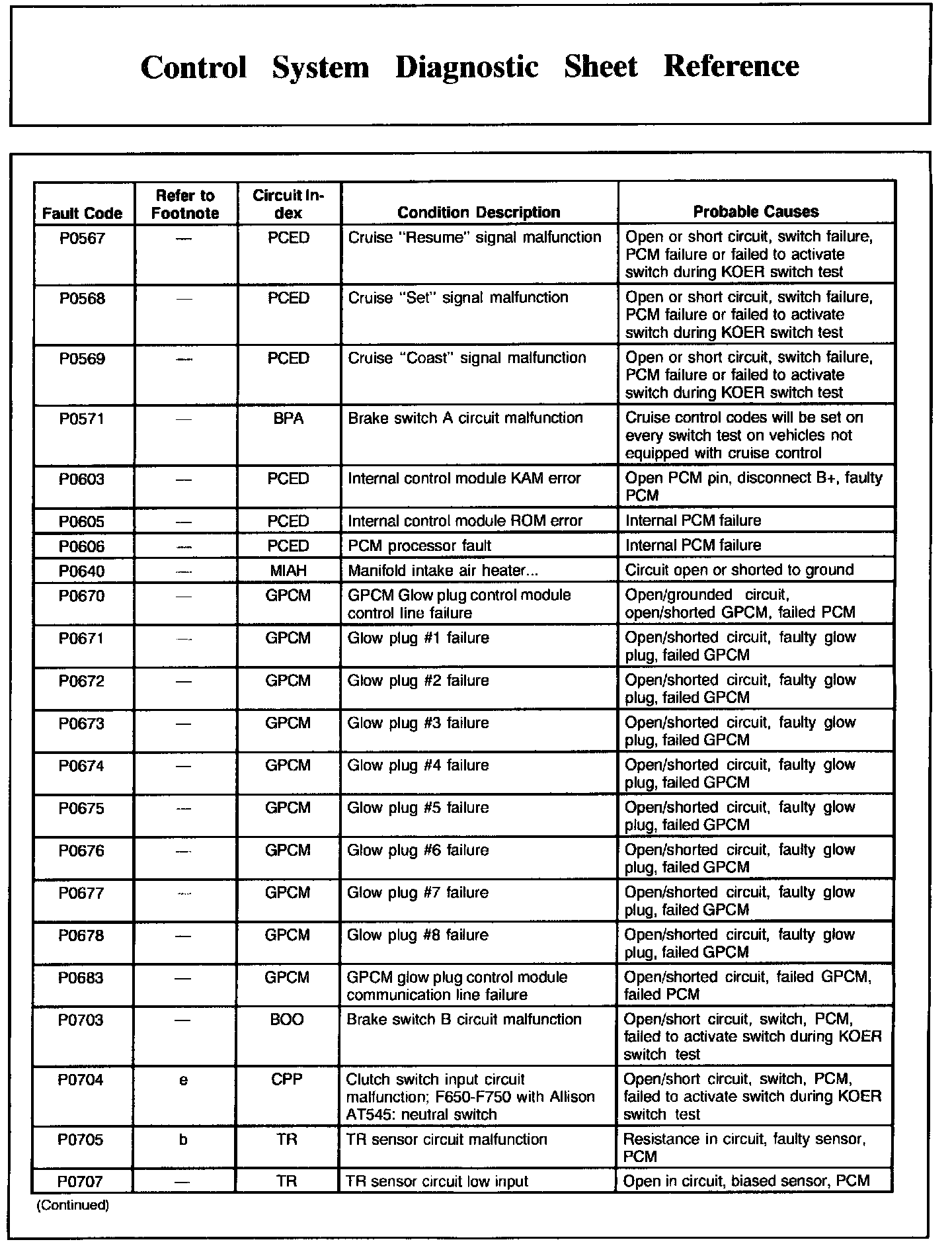

DTC Condition/Cause Chart, Part 3:

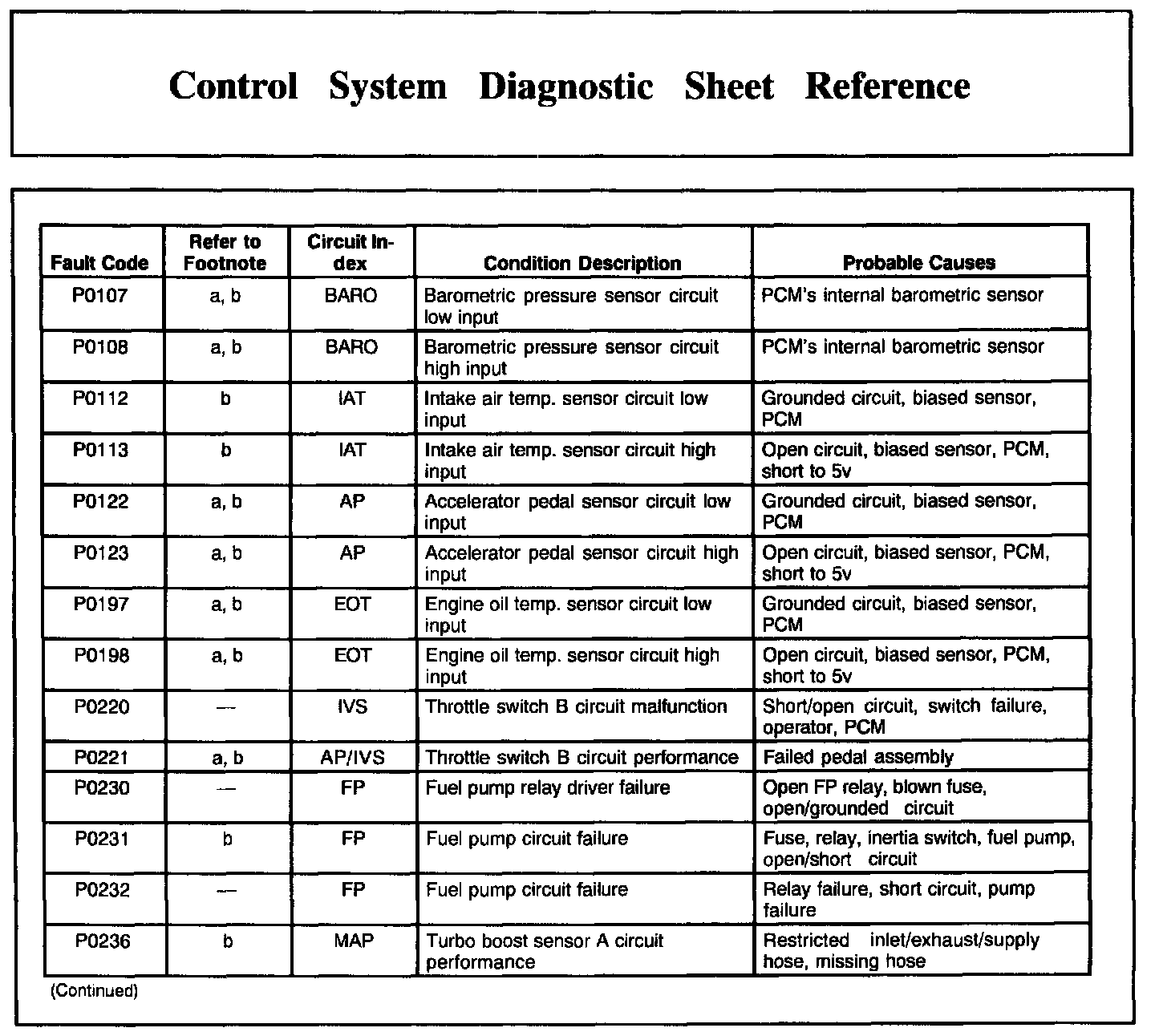

DTC Condition/Cause Chart, Part 4:

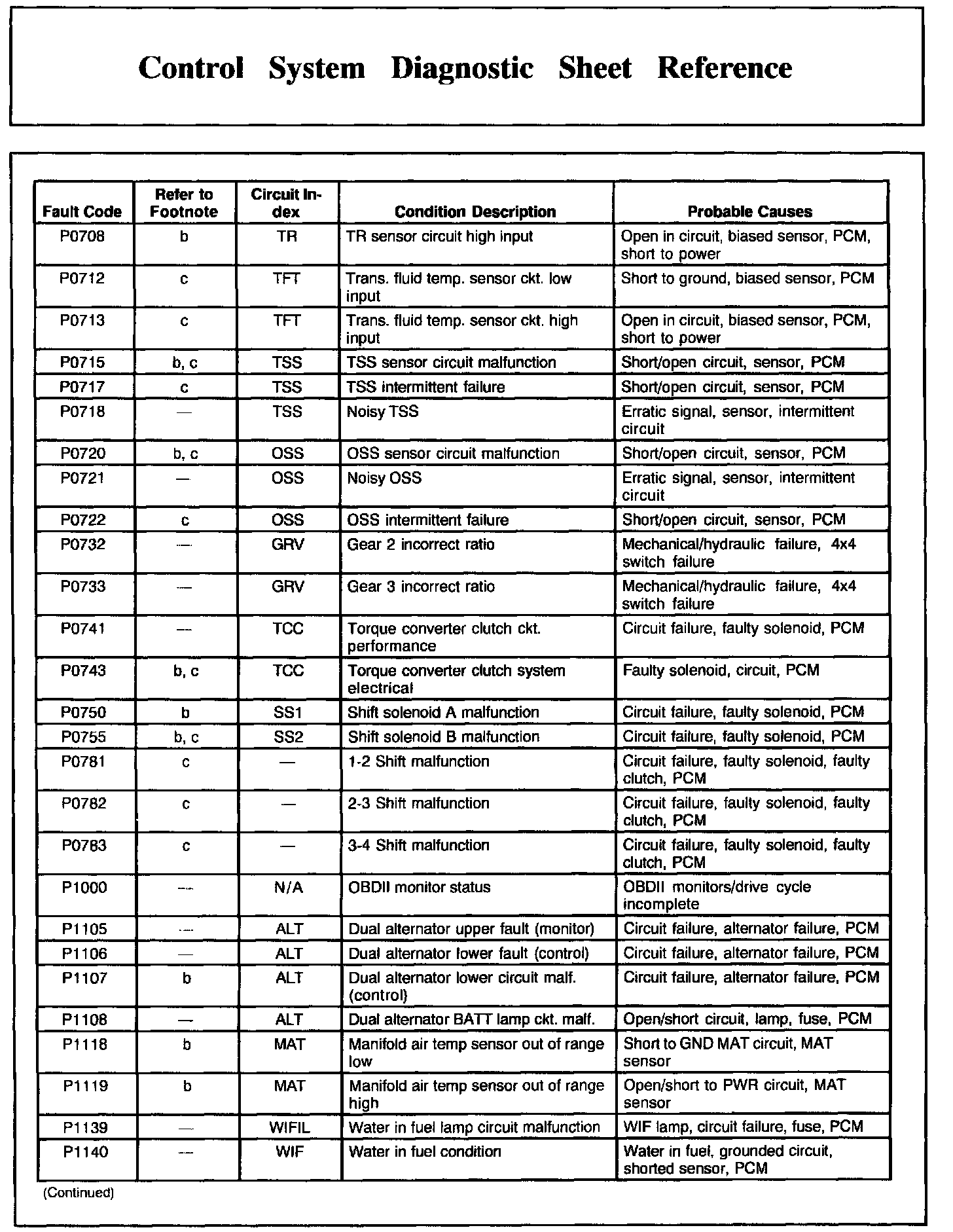

DTC Condition/Cause Chart, Part 5:

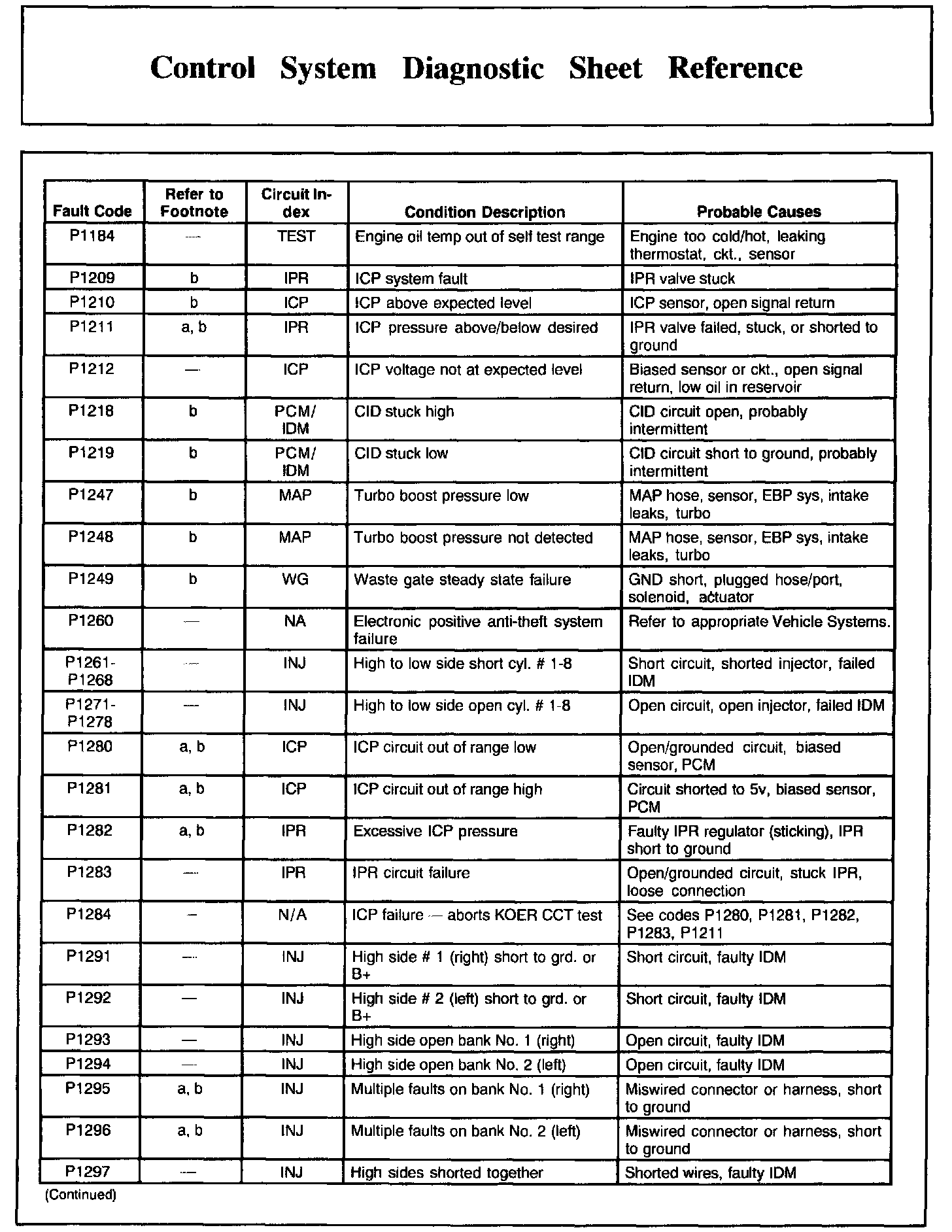

DTC Condition/Cause Chart, Part 6:

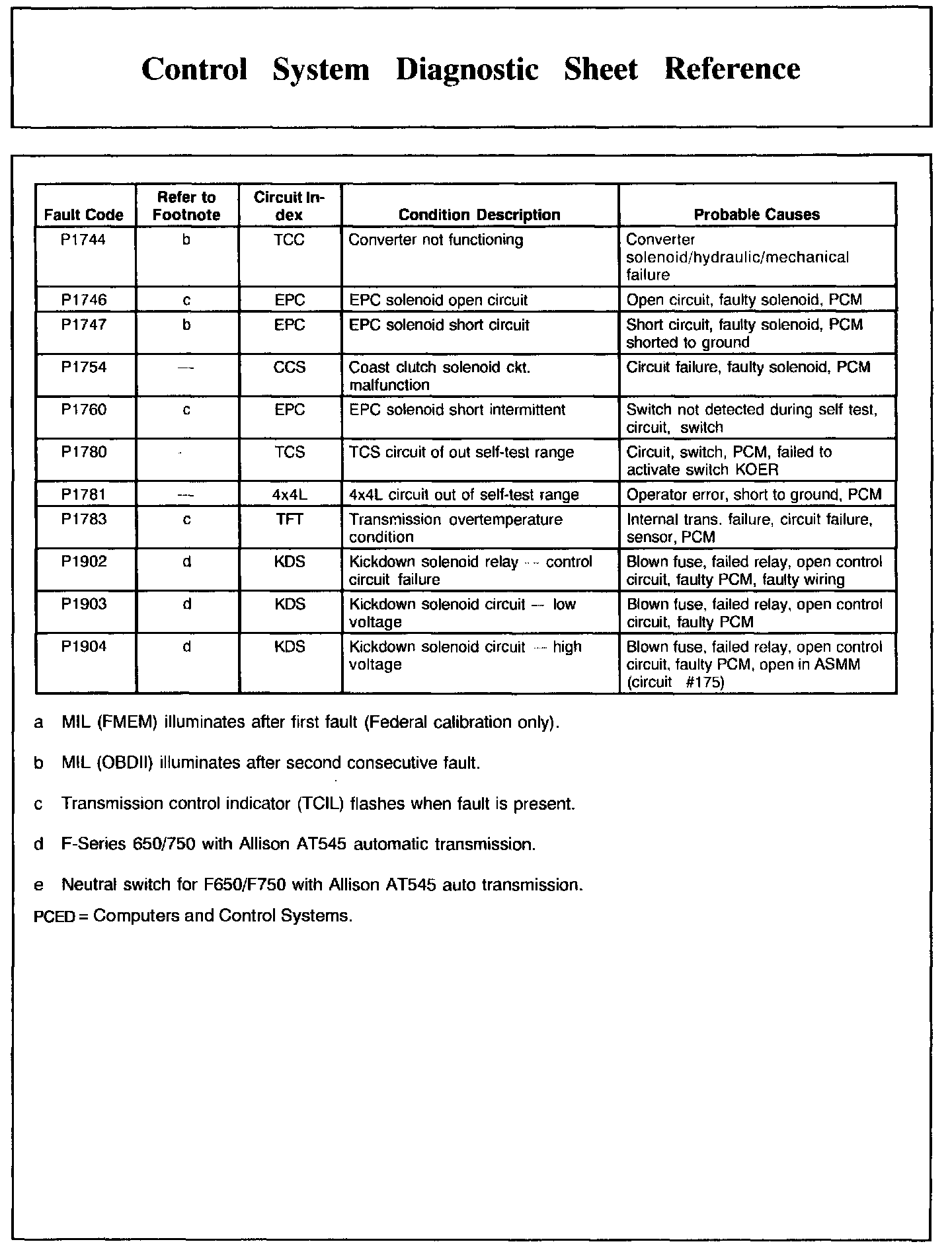

DTC Condition/Cause Chart, Part 7:

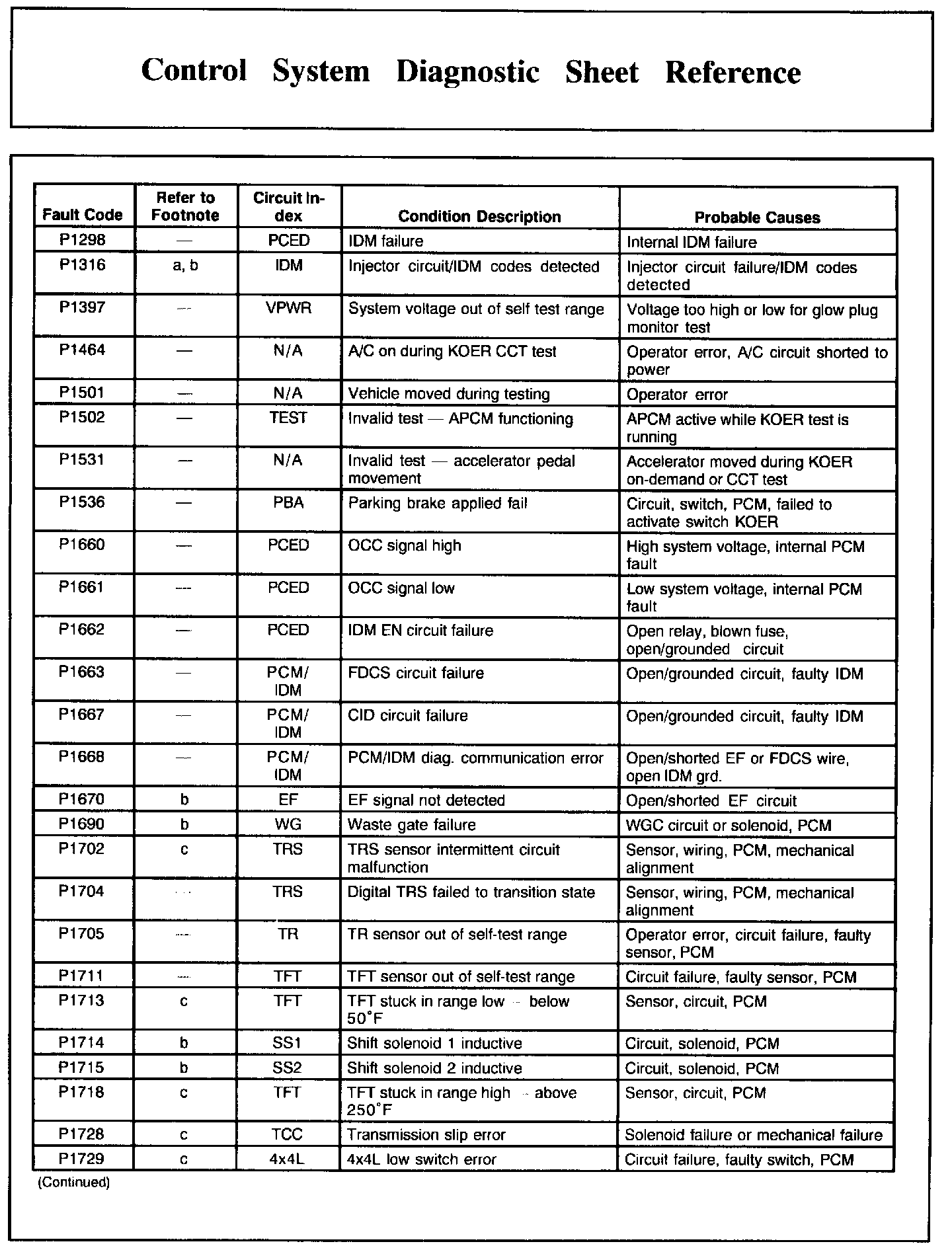

DTC Condition/Cause Chart, Part 8:
