Communication Circuit Wiring Repair

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

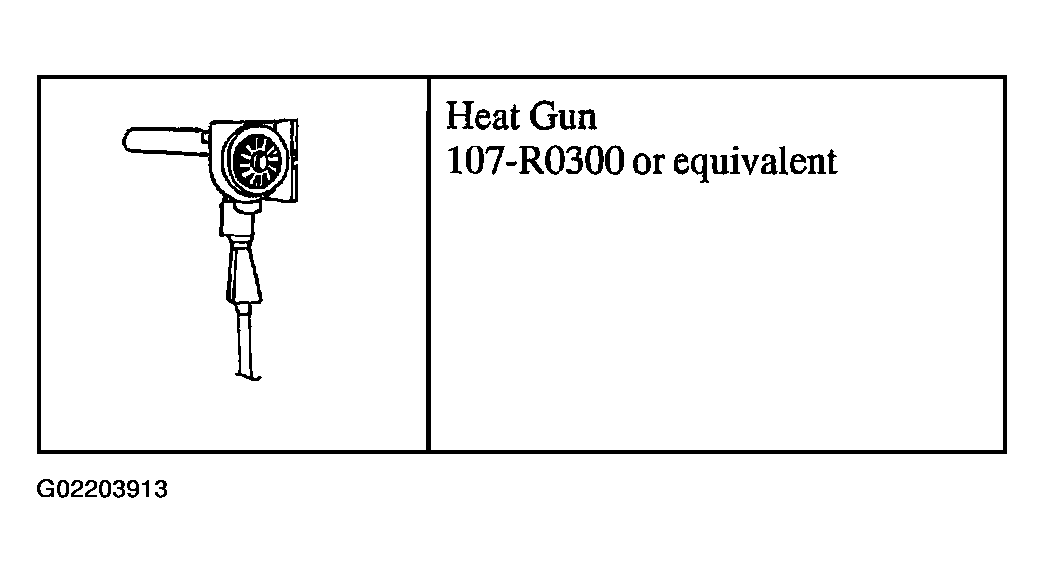

Fig 1: Identifying Special Tool - Heat Gun

Courtesy of FORD MOTOR CO.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

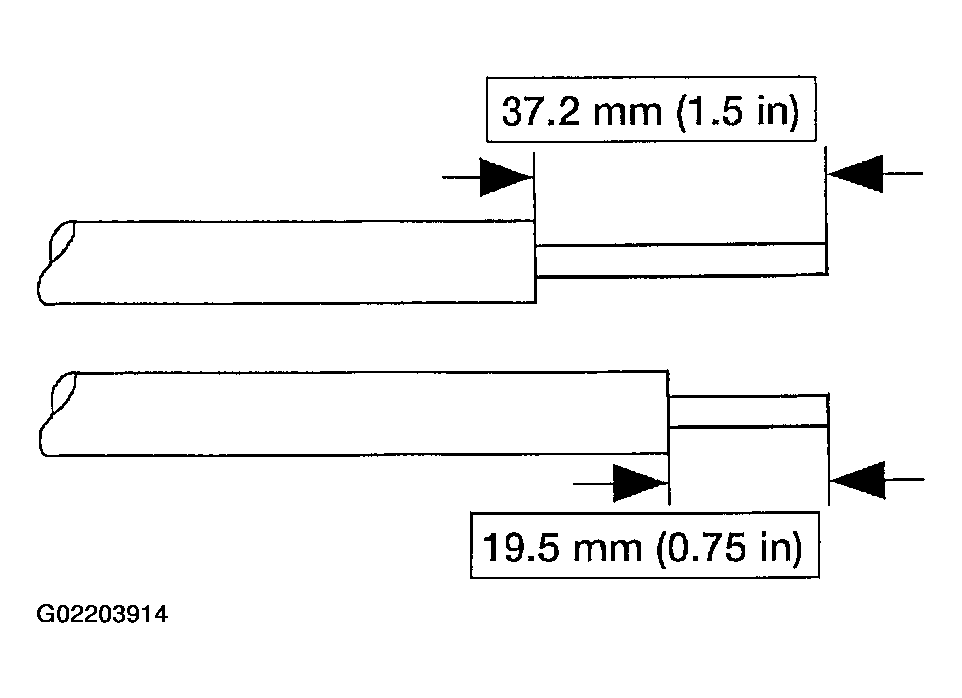

Strip the wires.

Fig 2: Striping Wires
Courtesy of FORD MOTOR CO.

NOTE: Use rosin core mildly activated (RMA) solder, not acid core solder.

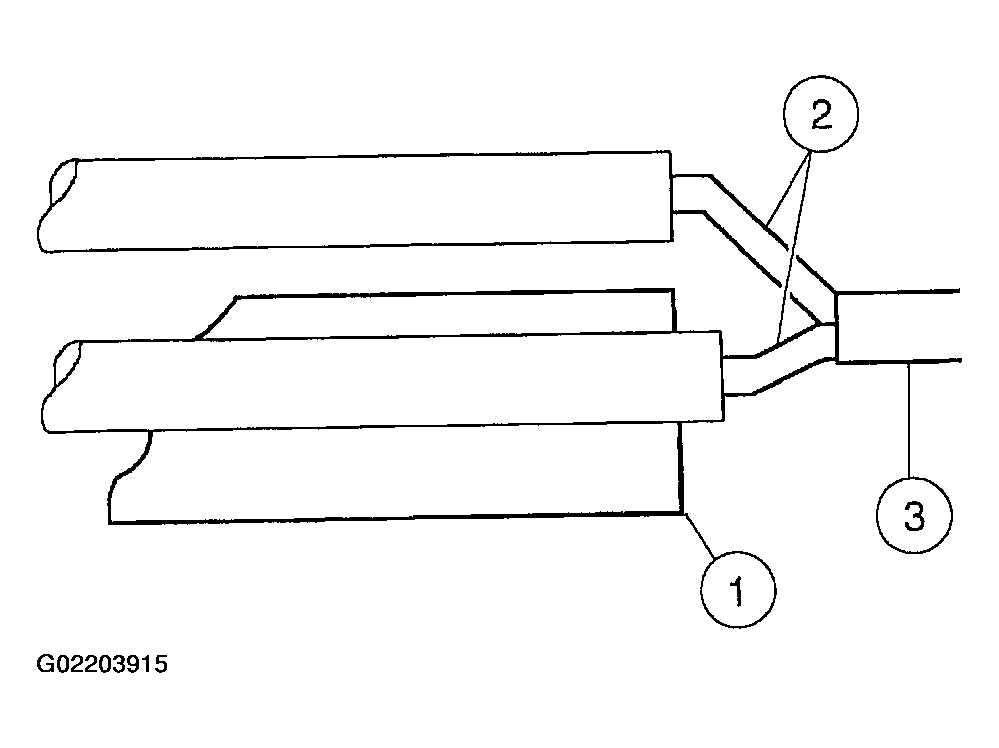

Solder the wires.
1. Install the heat shrink tube.
2. Twist the wires together.
3. Solder the wires together.

  Fig 3: Soldering Wires
  Courtesy of FORD MOTOR CO.

NOTE: Wait for the solder to cool before moving the wires.

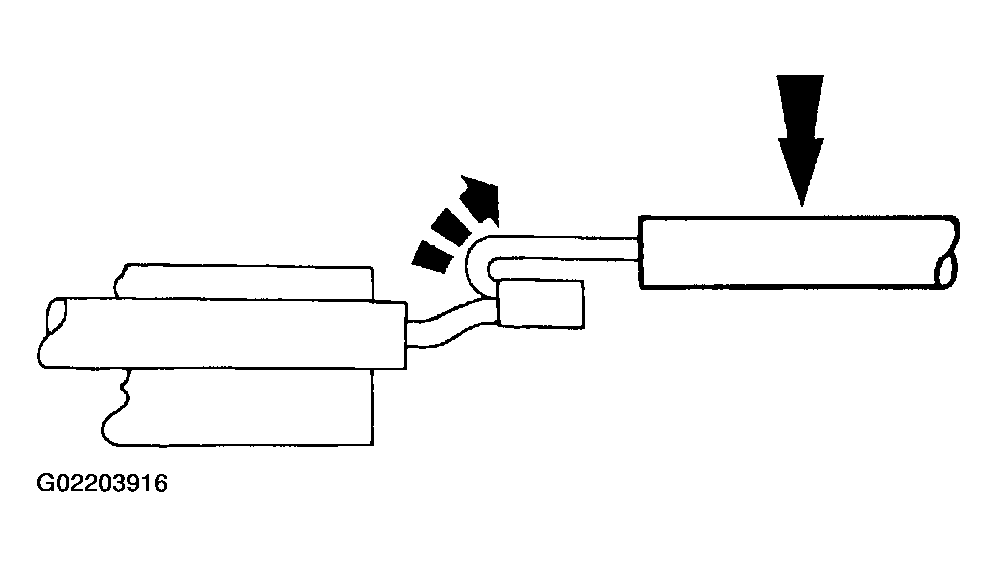

Fig 4: Bending Wires Back In Straight Line

Courtesy of FORD MOTOR CO.

Bend the wires back in a straight line.

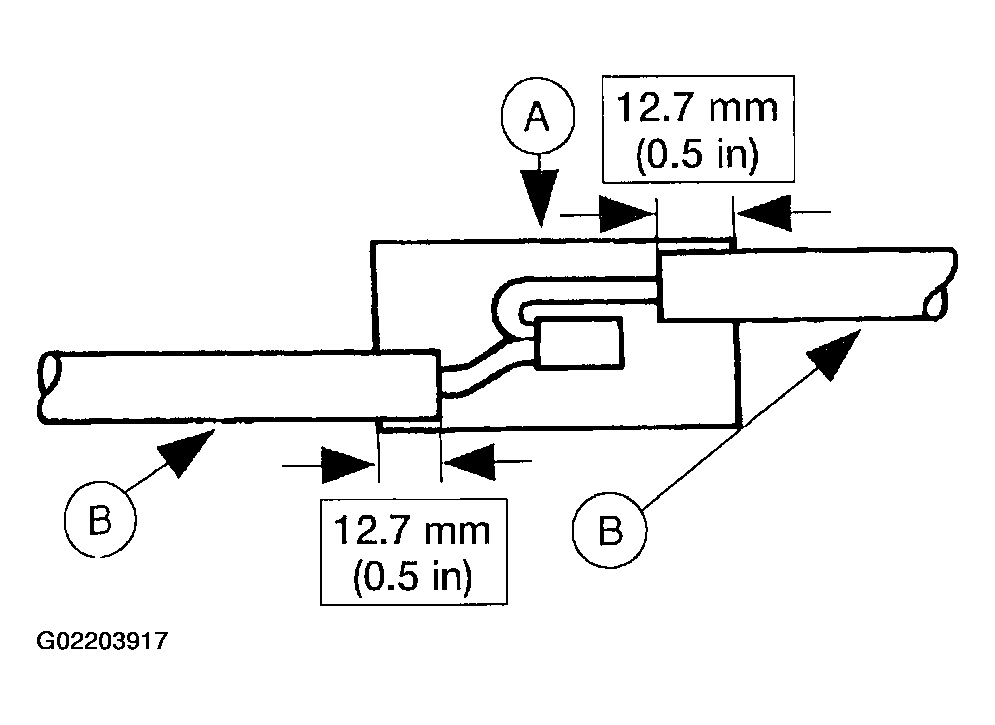

Position the (A) heat shrink tube over the (B) wire repair.
- Overlap the heat shrink tube on both wires.

  Fig 5: Positioning Heat Shrink Tube Over Wire Repair
  Courtesy of FORD MOTOR CO.

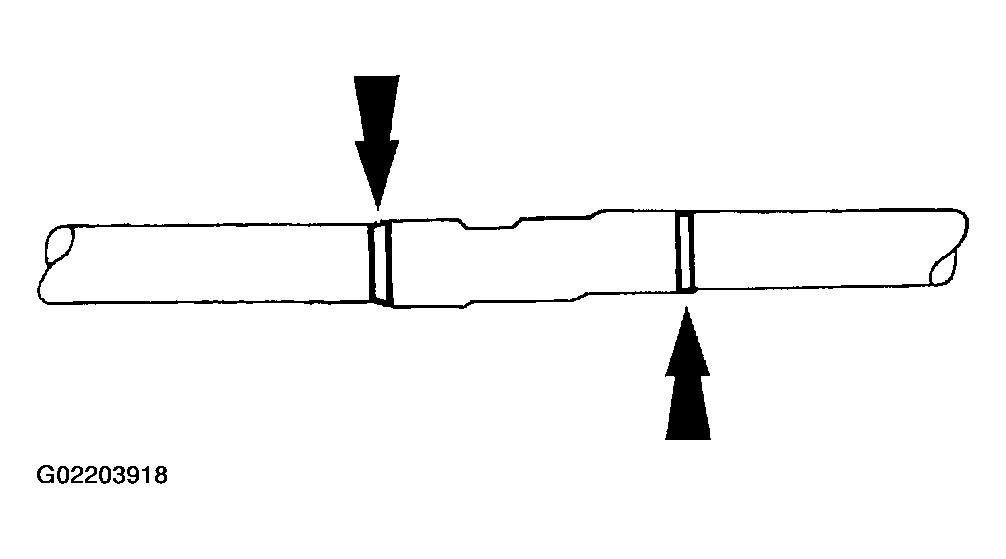

Use the heat gun to heat the repaired area until adhesive flows out both ends of the heat shrink tube.

Fig 6: Identifying Proper Shrinking Of Heat Shrink Tubing
Courtesy of FORD MOTOR CO.
Reconnect the battery ground cable.
