Front Electronic Module (FEM)-C201b
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

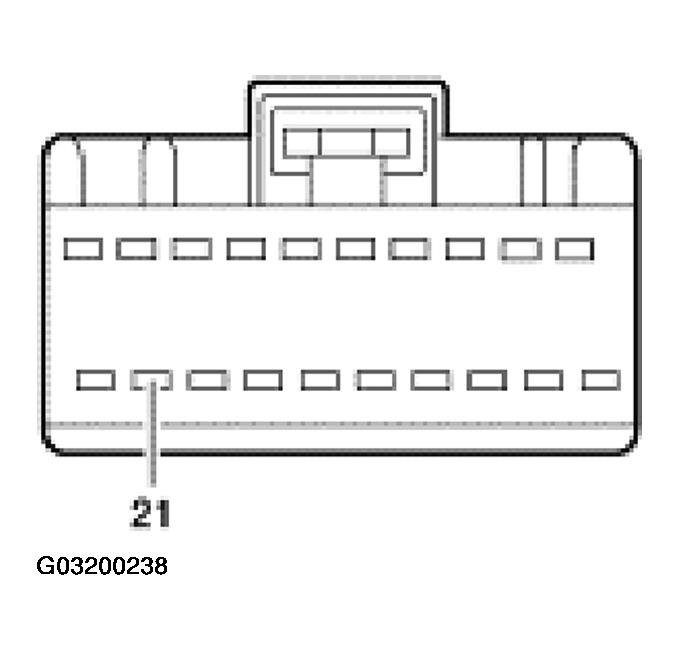

TERMINAL READINGS CONNECTOR
|
|
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 21 |
31S-DK21 (BK/WH) rear battery junction box (RBJB) relay 32 coil ground |
Zero voltage, less than five ohms to chassis ground. |
