Max A/C
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

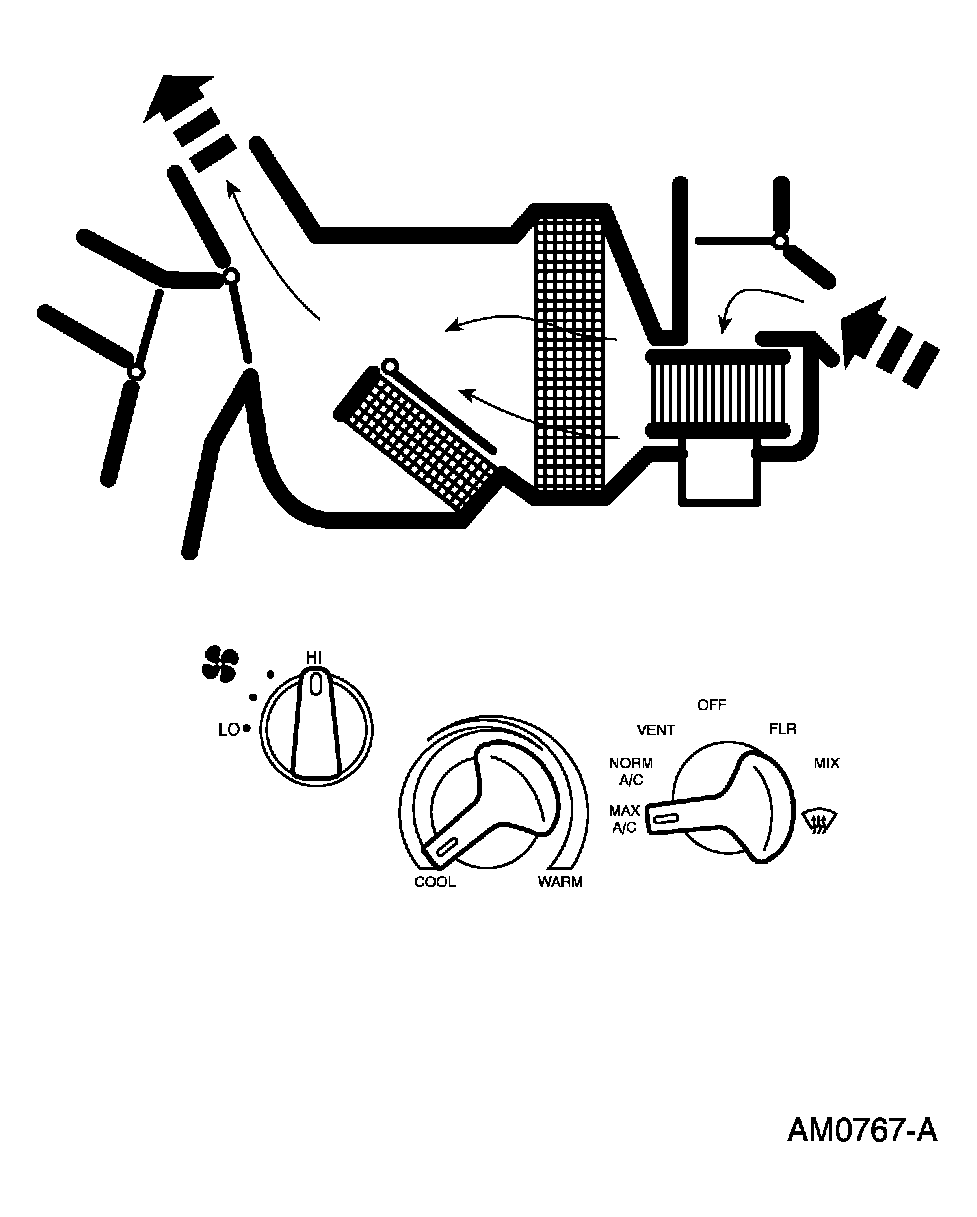

When MAX A/C is selected:
- The recirculation air duct door is at full vacuum, closing off outside air and admitting only recirculated air.
- The floor/panel door and the floor/defrost door are at the full vacuum position, directing airflow to the A/C register (19893).
- The temperature is usually set for maximum cold but may be heated if desired.
- Air will be picked up at the recirculation opening by the blower motor (19805). With the A/C control set for maximum cold, airflow across the evaporator core (19860) will be diverted past the heater core (18476) and then directed into the passenger compartment through the instrument panel A/C register. There is also some airflow to the side window demisters.
- The A/C compressor (19703) will be enabled when MAX A/C is selected.
- The blower motor is on.
