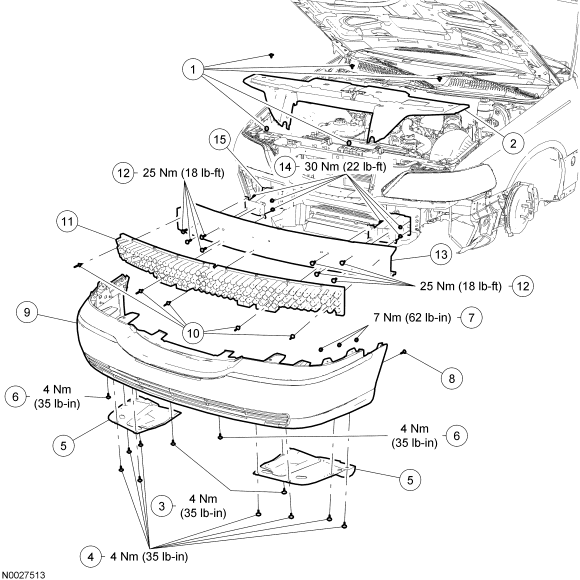

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706519 | Radiator upper sight shield pin-type retainers (5 required) |
| 2 | 8C291 | Radiator upper sight shield |
| 3 | W709027 | Lower radiator air deflector-to-radiator support bolts (2 required) |
| 4 | W709027 | Lower radiator air deflector bolts (8 required) |
| 5 | 8314 RH/ 8C376 LH | Lower radiator air deflectors |
| 6 | W709027 | Front bumper cover bolts (2 required) |
| 7 | N621906 | Front bumper cover-to-fender nuts (6 required) |
| 8 | 56913 | Front bumper cover-to-vertical air shield screw (2 required) |
| 9 | 17D957 | Front bumper cover |
| 10 | W701913 | Front bumper isolator rivets (5 required) |
| 11 | 17E898 | Front bumper isolator |
| 12 | W505434 | Front bumper bolts (8 required) |
| 13 | 17750 | Front bumper |
| 14 | W520513 | Front bumper bracket nuts (8 required) |
| 15 | 17752 RH/ 17753 LH | Front bumper bracket |
- For additional information, refer to the appropriate procedures.
