Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly

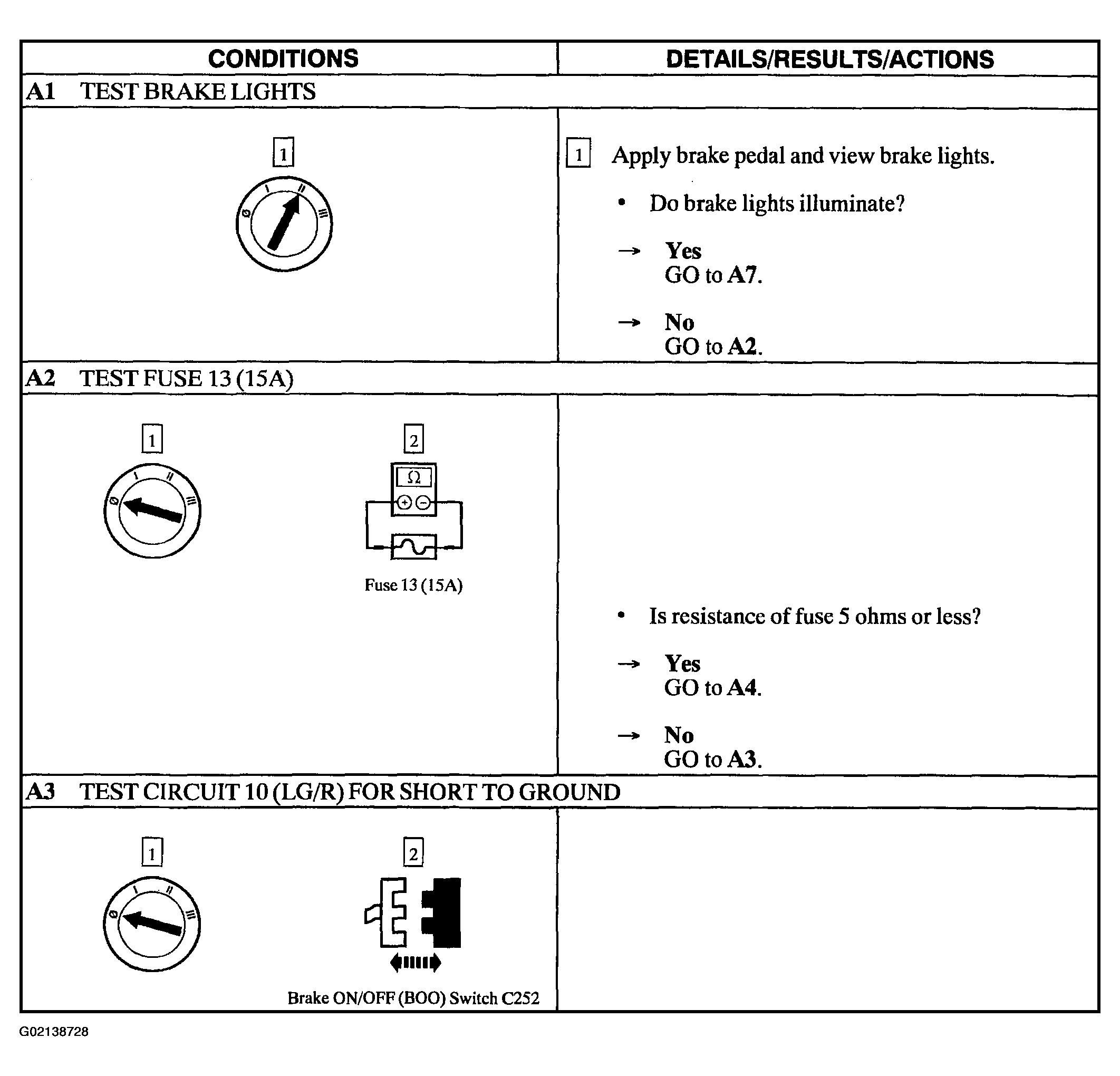

Fig 1: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps A1-A3)

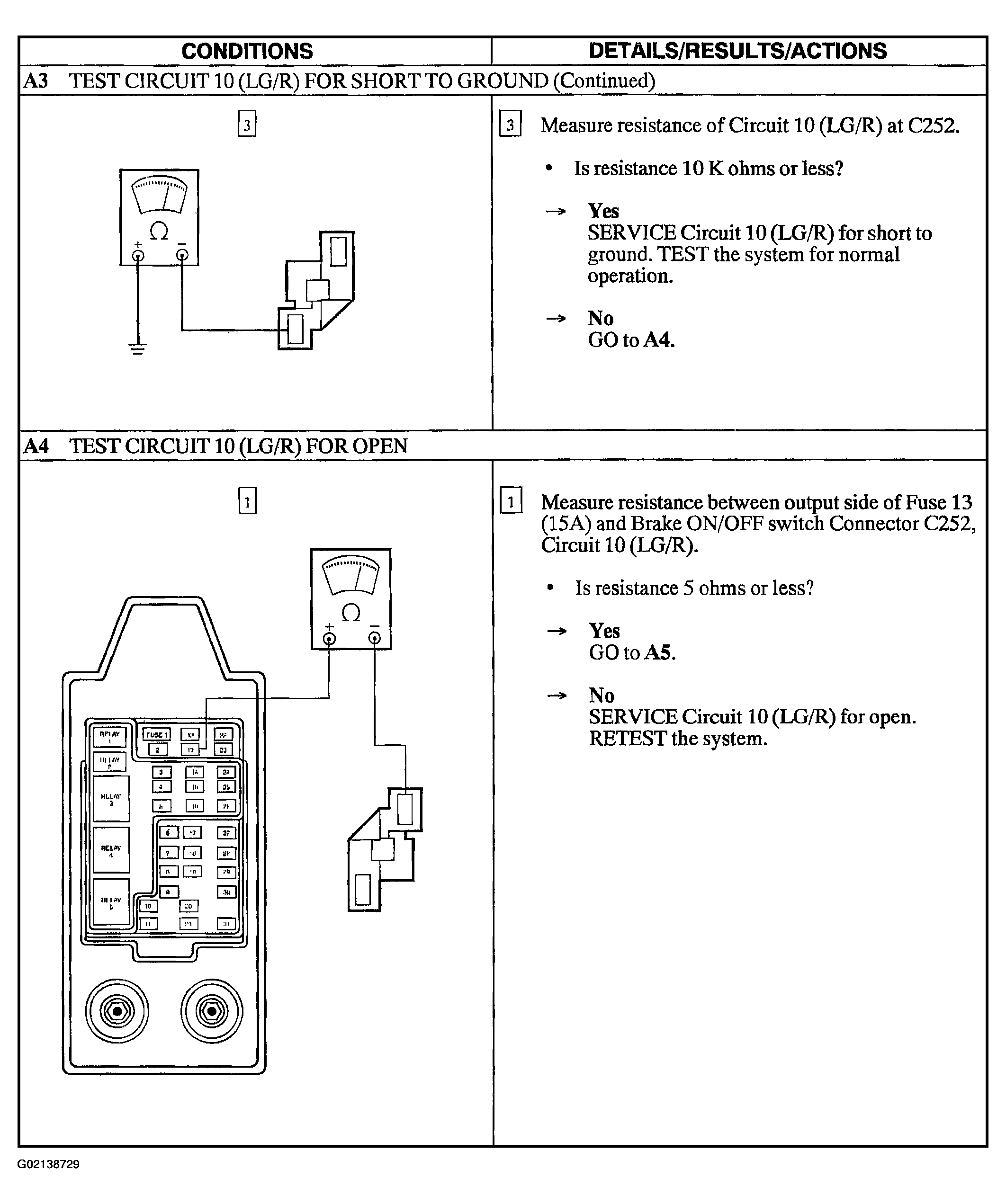

Fig 2: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps A3 Cont.-A4)

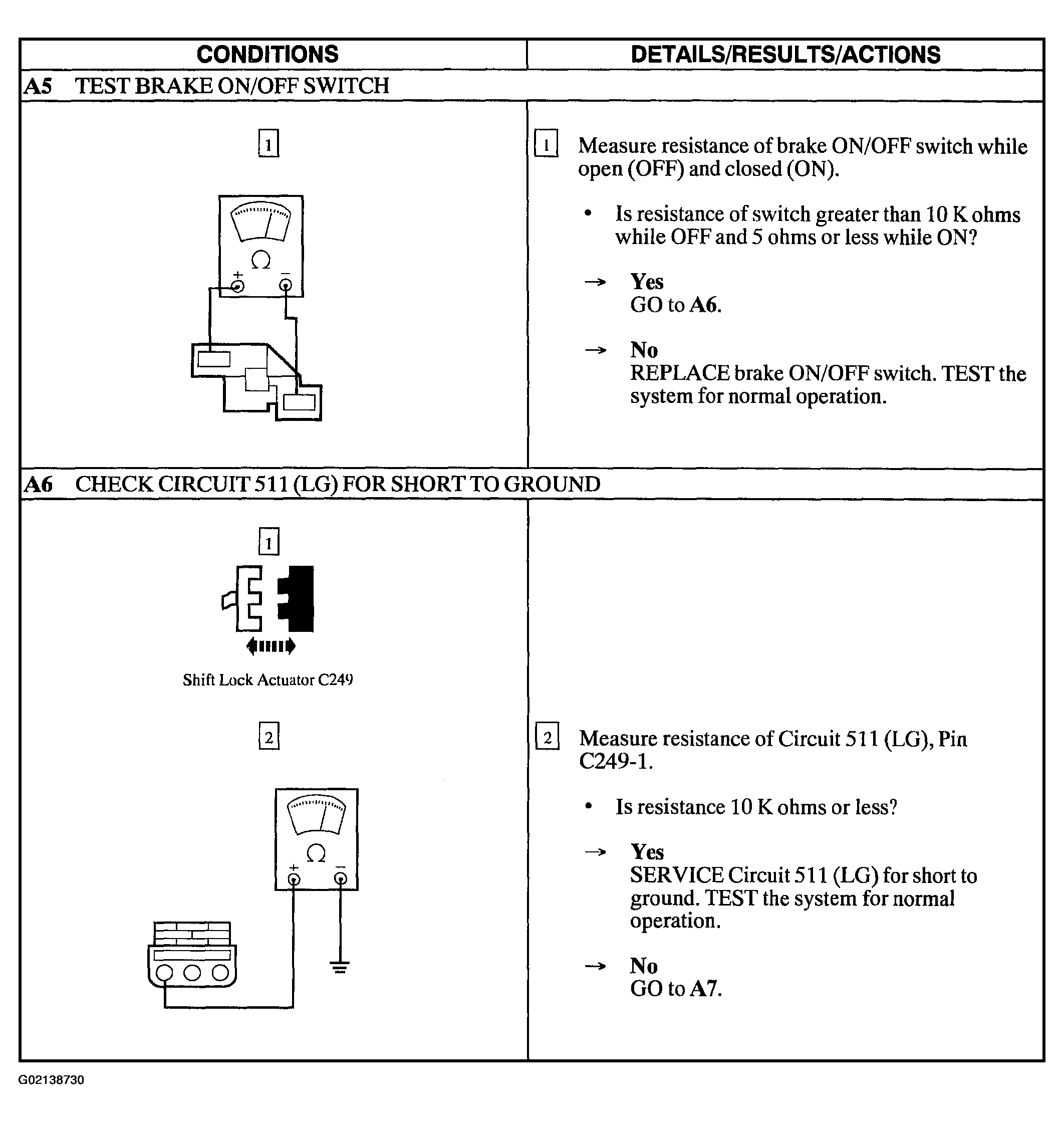

Fig 3: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps A5-A6)

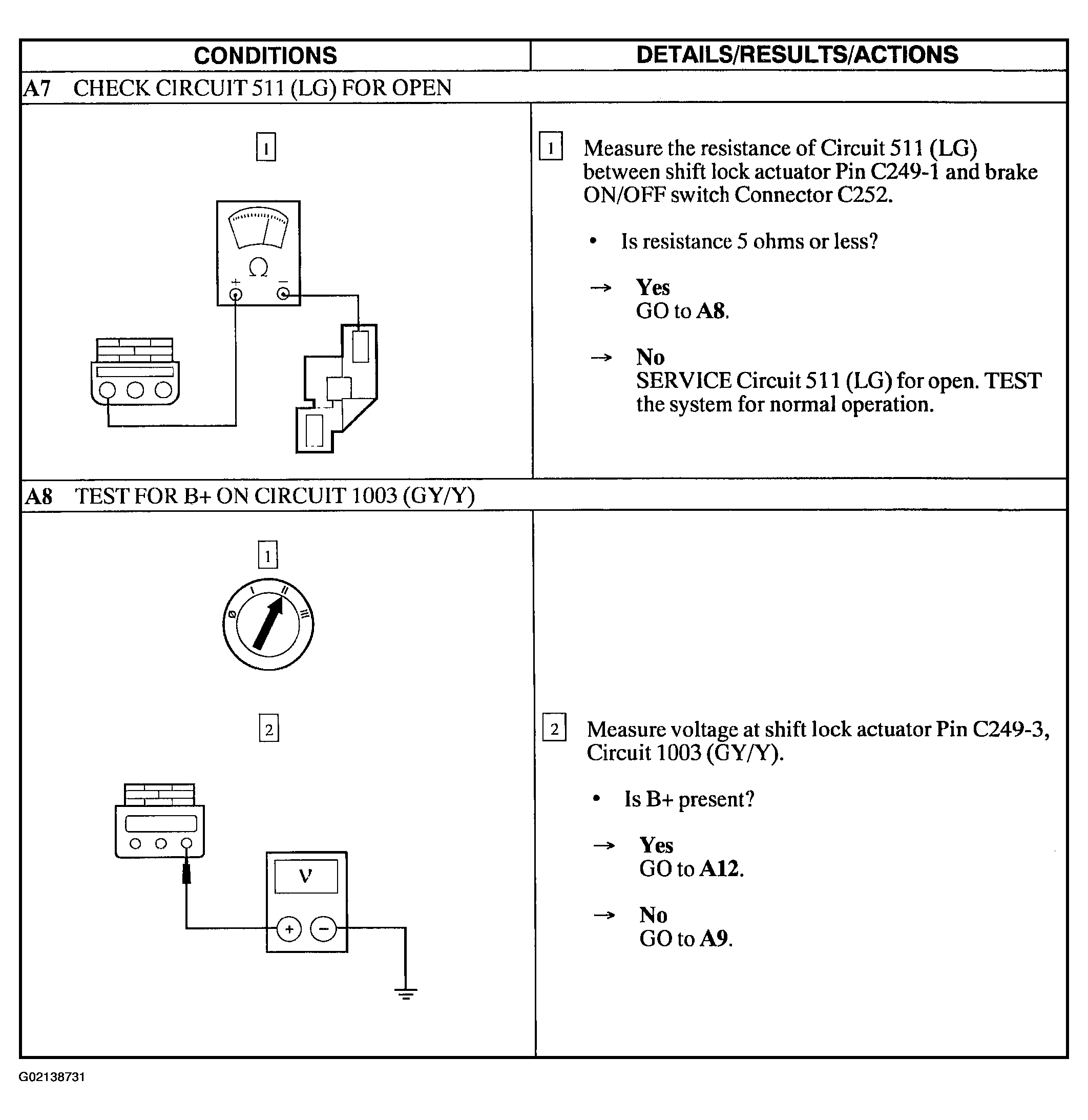

Fig 4: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps A7-A8)

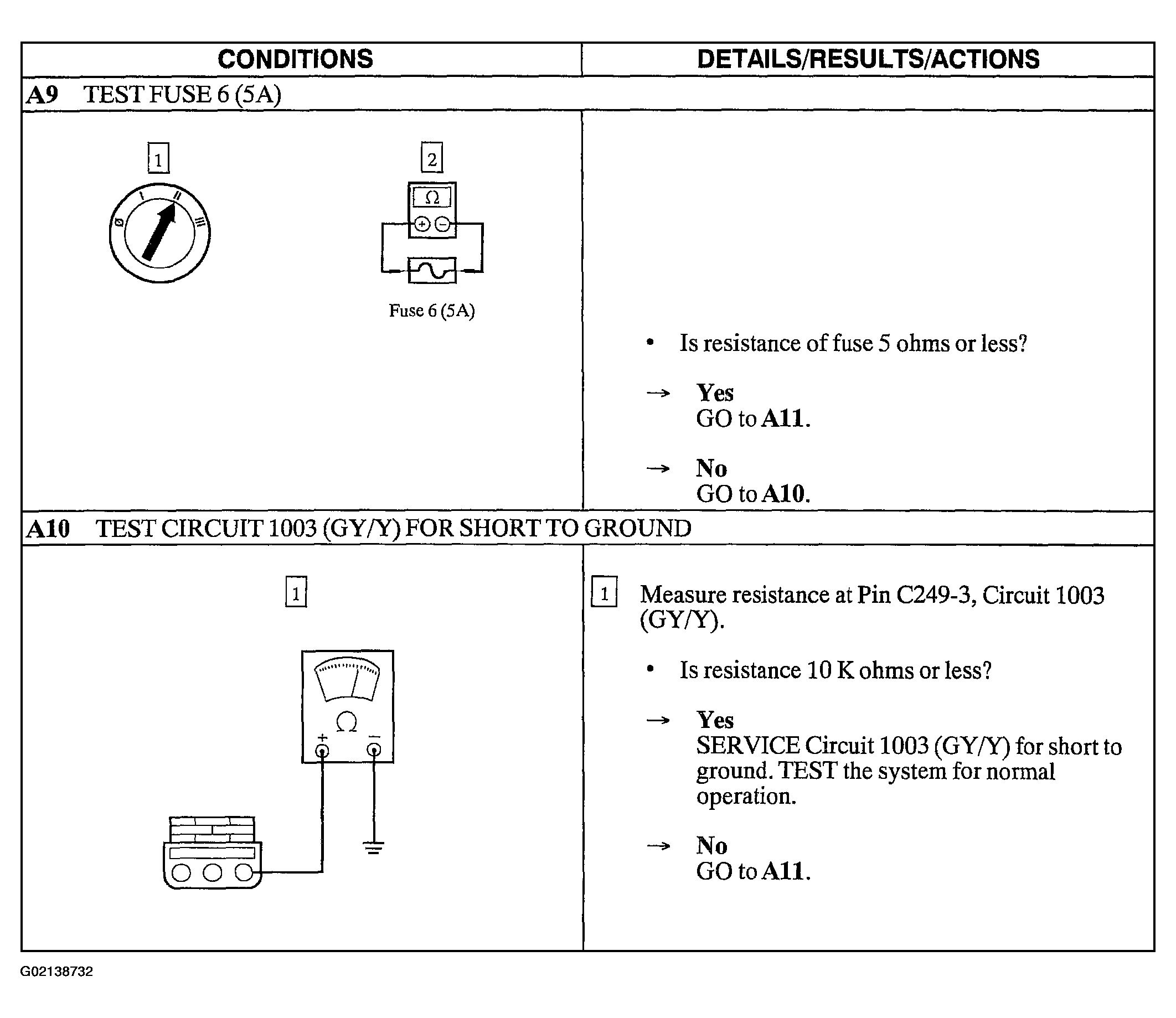

Fig 5: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps A9-A10)

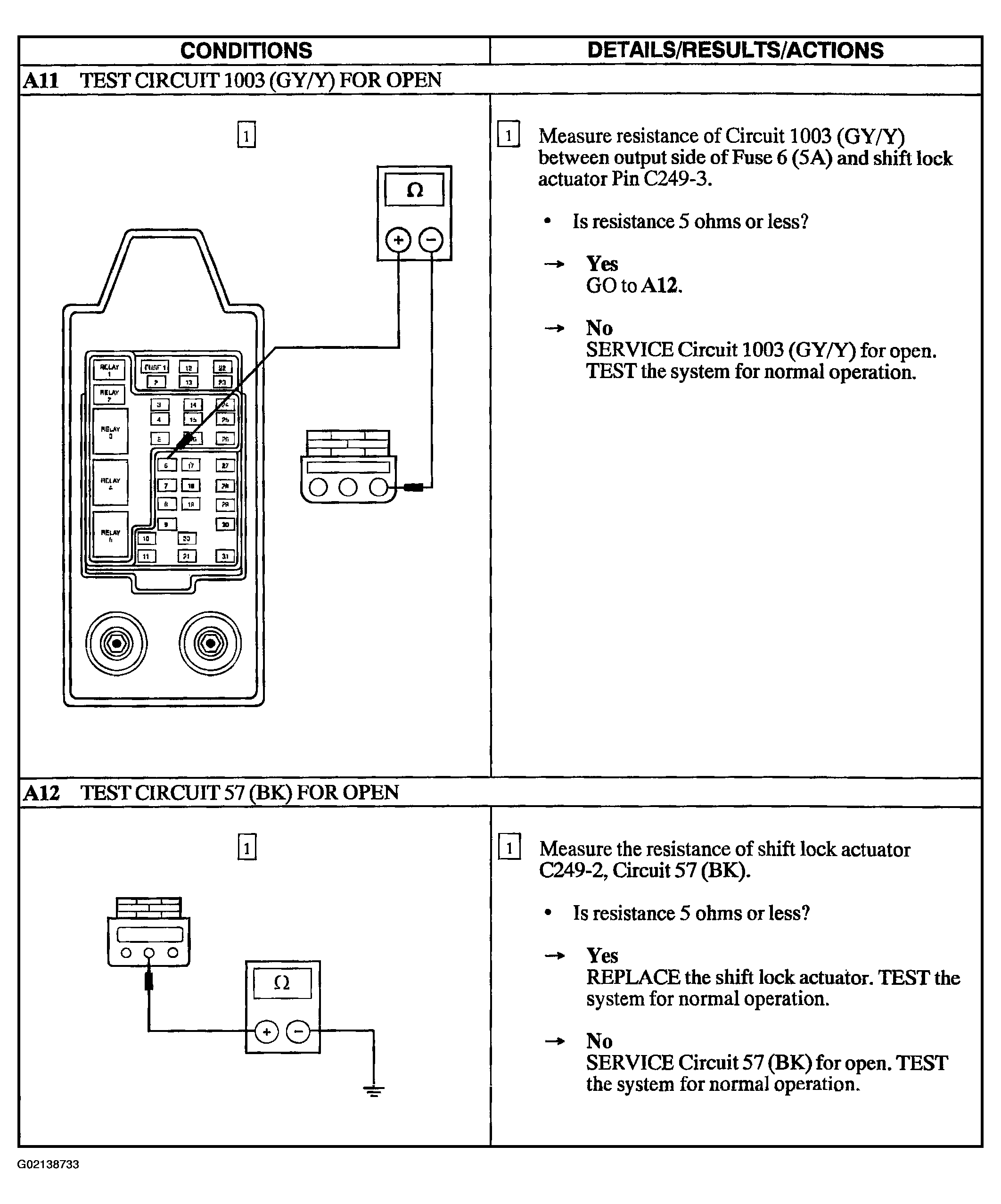

Fig 6: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps A11-A12)
